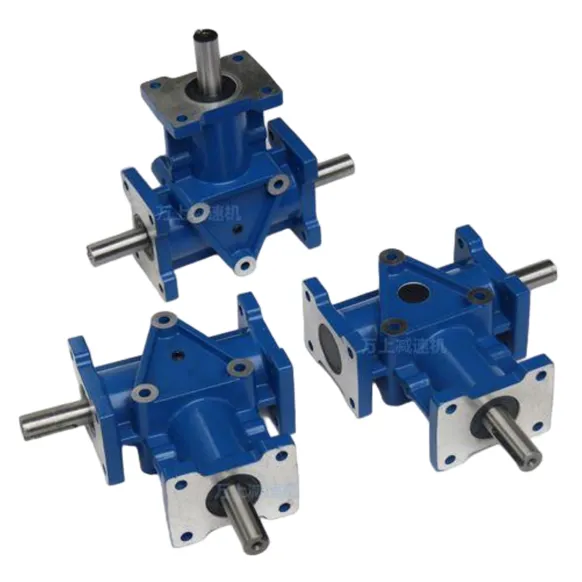

TATA Drive's ARA Series has 0.018 - 4.94kW power, 6.95 - 46.8N·m torque and 1:1/2:1 ratios. 98% efficient, lightweight with stainless steel shaft, fits food and textile industries for stable low-noise transmission.

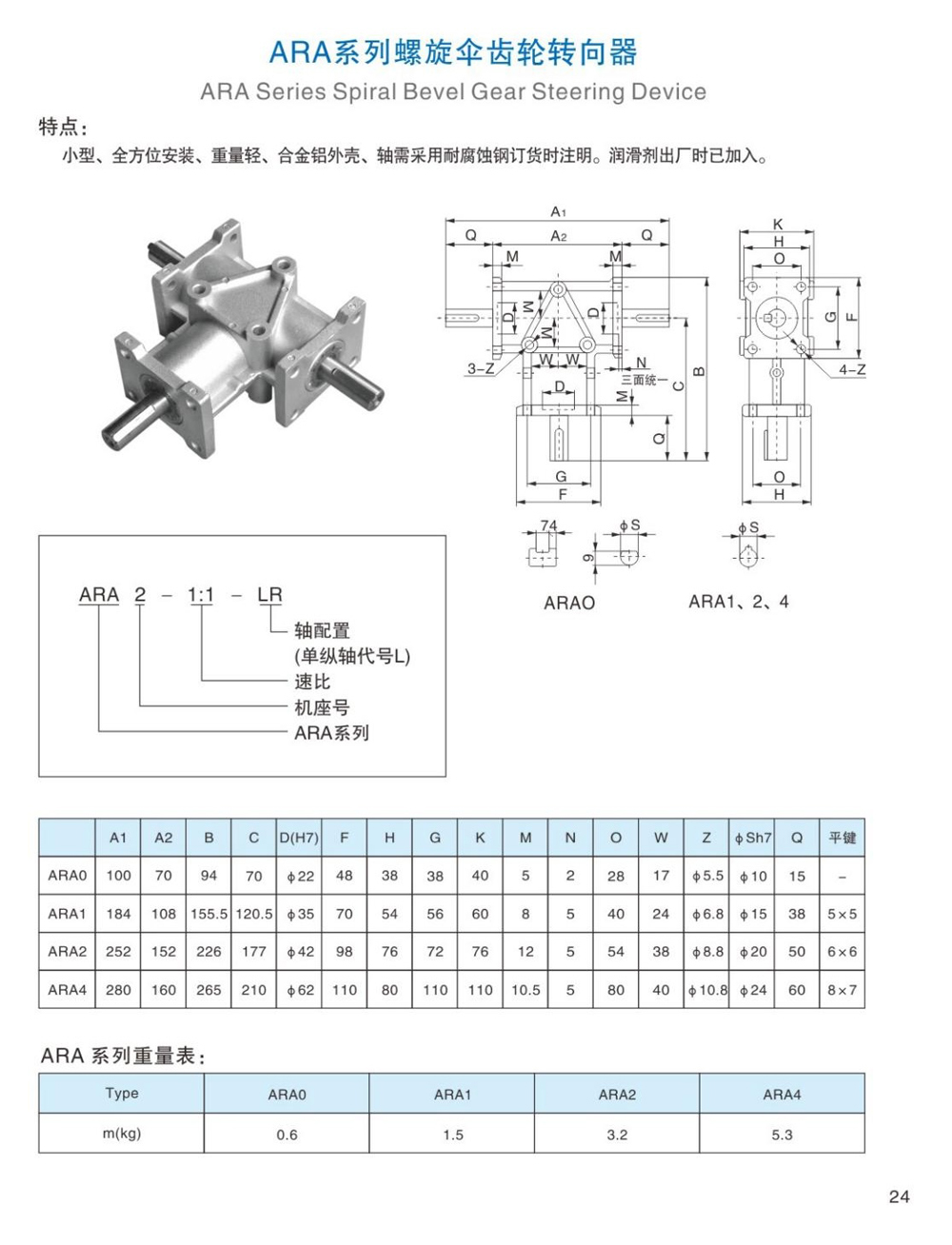

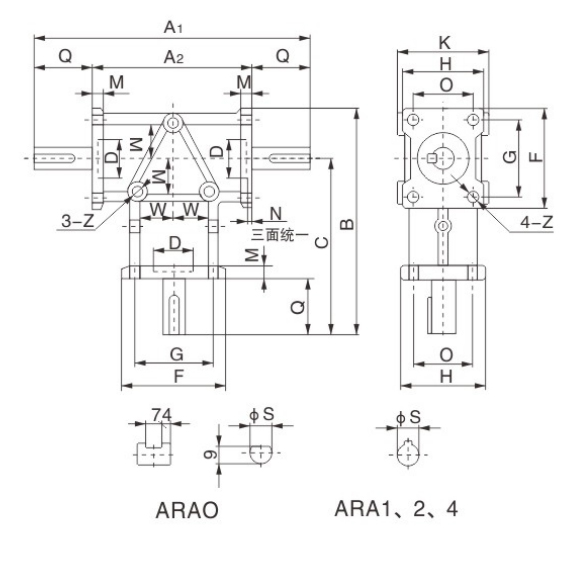

| A1 | A2 | B | C | D(H7) | F | H | G | K | M | N | O | W | Z | ￠Sh7 | Q | Flat key | |
| ARA0 | 100 | 70 | 94 | 70 | ￠22 | 48 | 38 | 38 | 40 | 5 | 2 | 28 | 17 | ￠5.5 | ￠10 | 15 | - |
| ARA1 | 184 | 108 | 155.5 | 120.5 | ￠35 | 70 | 54 | 56 | 60 | 8 | 5 | 40 | 24 | ￠6.8 | ￠15 | 38 | 5×5 |
| ARA2 | 252 | 152 | 226 | 177 | ￠42 | 98 | 76 | 72 | 76 | 12 | 5 | 54 | 38 | ￠8.8 | ￠20 | 50 | 6×6 |
| ARA4 | 280 | 160 | 265 | 210 | ￠62 | 110 | 80 | 110 | 110 | 10.5 | 5 | 80 | 40 | ￠10.8 | ￠24 | 60 | 8×7 |
Ultra-High Transmission Efficiency:
Average efficiency reaches 98%. Precision-ground 20CrMnTiH gears minimize power loss, ensuring smooth energy transfer during high or low-speed operation.
Universal & Flexible Installation:
Aluminum die-cast housing enables all-directional mounting. Multiple shaft configurations like LR/SN/SF adapt to diverse equipment spatial layouts easily.
Strong Corrosion Resistance:
Shafts adopt SUS304 stainless steel. NFS-certified H1-grade food lubricants are available, perfectly matching food and beverage processing needs.

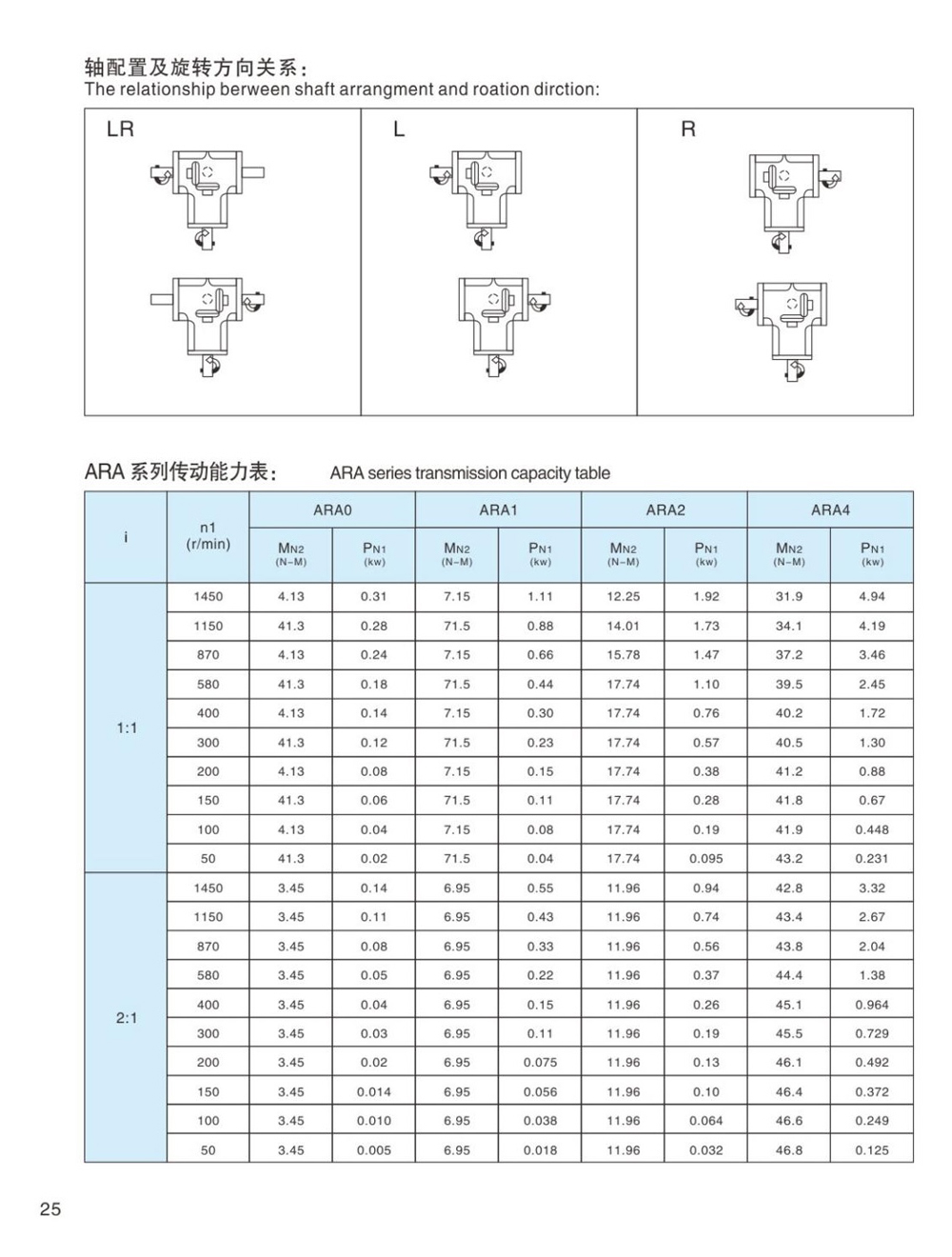

Diversified Shaft Output Modes:
Offers single/double horizontal/vertical shafts. Supports single-input single-output or single-input double-output, meeting multi-transmission demands of assembly lines.
Reliable & Durable Performance:
Equipped with double-lip oil seals and tapered roller bearings. Cast iron housing resists vibration, with a long service life under regular lubricant replacement.
The full range of products includes motors, input interfaces, output modules, installation forms, etc., which can be personalized designed and manufactured according to customer needs.
We offer multiple color schemes such as RAL7045 (gray), RAL9011 (black), RAL5015 (blue), RAL9003 (white), RAL3014 (purple), etc. Customers can choose the corresponding product color according to their different needs.
Our nameplate is made of stainless steel laser printing technology, which can be customized according to the different needs of customers, especially by adding a product QR code. Scanning the QR code can quickly access product information and sales service information.
Conventional packaging forms include cardboard boxes, pallets, and wooden boxes. We can also customize the outer box packaging according to customer needs.
