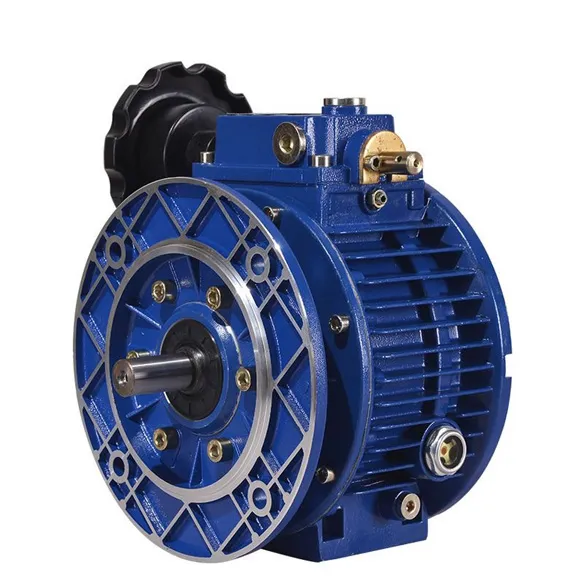

TATA Drive’s UDL Stepless Speed Variator is a reliable industrial transmission tool, enabling smooth, continuous speed adjustment for efficient, stable machinery operation.

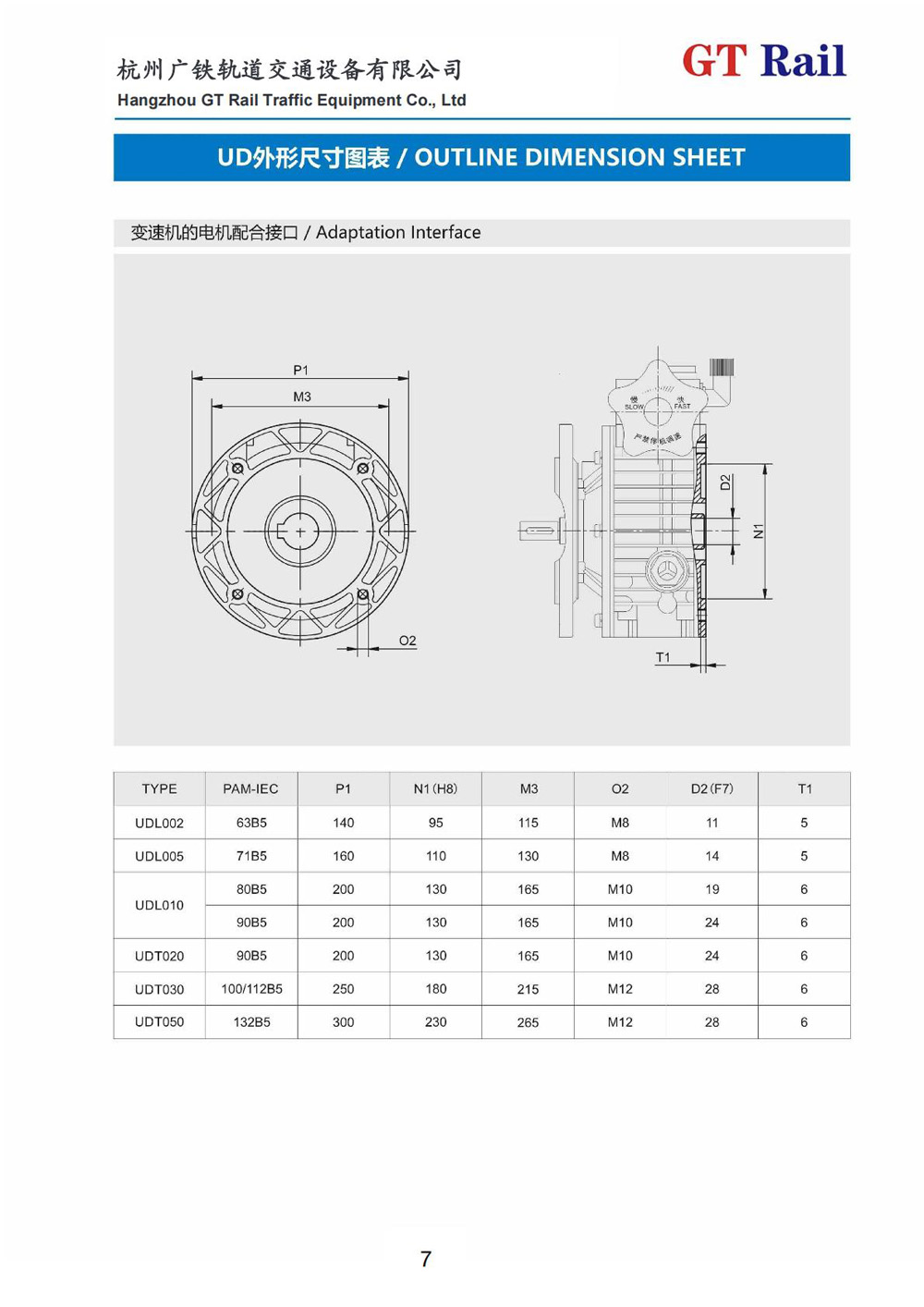

| TYPE | PAM-IEC | P1 | N1(H8) | M3 | O2 | D2(F7) | T1 |
| UDL002 | 63B5 | 140 | 95 | 115 | M8 | 11 | 5 |
| UDL005 | 71B5 | 160 | 110 | 130 | M8 | 14 | 5 |
| UDL010 | 80B5 | 200 | 130 | 165 | M10 | 19 | 6 |
| 90B5 | 200 | 130 | 165 | M10 | 24 | 6 | |
| UDT020 | 90B5 | 200 | 130 | 165 | M10 | 24 | 6 |
| UDT030 | 100/112B5 | 250 | 180 | 215 | M12 | 28 | 6 |
| UDT050 | 132B5 | 300 | 230 | 265 | M12 | 28 | 6 |
Continuous Stepless Speed Regulation
Offers 1:1.4–1:7 adjustable speed ratio, enabling smooth, stepless speed changes without gear shifting for flexible industrial transmission needs.
High Torque Output
Delivers stable torque even at low speeds, matching diverse load demands of machinery like conveyors and mixers for consistent operational performance.
Compact & Easy Installation
Boasts a lightweight, space-saving structure that integrates seamlessly into existing equipment, requiring minimal assembly and layout adjustment.
Low Maintenance & Durable
Built with wear-resistant friction discs and sealed housing, resisting dust and corrosion for long service life with minimal upkeep.
Quiet & Energy-Efficient Operation
Optimized transmission structure reduces noise (≤70dB) and power loss, ensuring eco-friendly, smooth operation while cutting operational costs.
The full range of products includes motors, input interfaces, output modules, installation forms, etc., which can be personalized designed and manufactured according to customer needs.
We offer multiple color schemes such as RAL7045 (gray), RAL9011 (black), RAL5015 (blue), RAL9003 (white), RAL3014 (purple), etc. Customers can choose the corresponding product color according to their different needs.
Our nameplate is made of stainless steel laser printing technology, which can be customized according to the different needs of customers, especially by adding a product QR code. Scanning the QR code can quickly access product information and sales service information.
Conventional packaging forms include cardboard boxes, pallets, and wooden boxes. We can also customize the outer box packaging according to customer needs.
