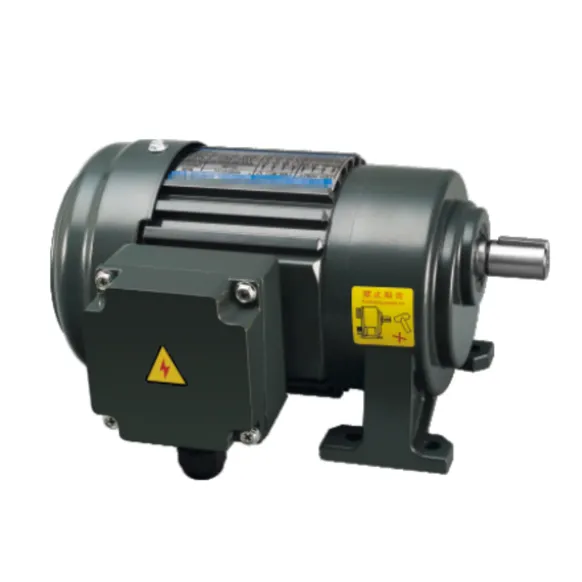

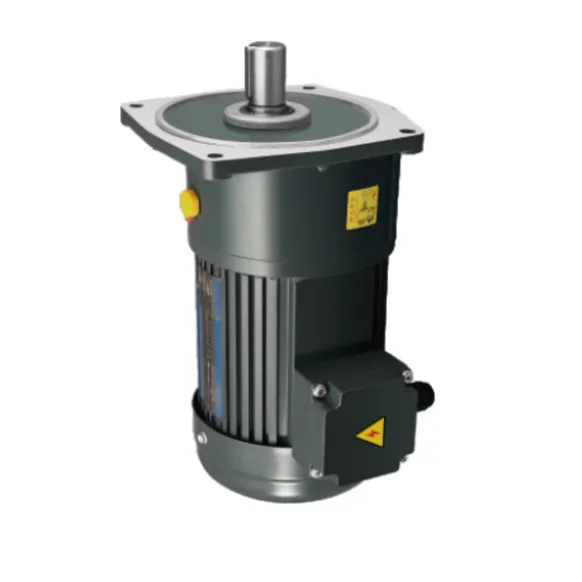

TATA Drive's Brake Geared Motor integrates high torque with instant, reliable braking. Compact, low-noise, ideal for safety-critical industrial machinery and precise positioning.
| power | model |
| 0.1KW | CH-18-100-3~60 |
| CH-22-100-60~200 | |
| CV-18-100-3~60 | |
| CV-22-100-60~200 | |
| 0.2KW | CH-18-100-3~10 |
| CH-22-200-15~90 | |
| CH-28-200-100~200 | |
| CV-18-200-3~10 | |
| CV-22-200-15~90 | |
| CV-28-200-100~200 | |
| 0.4KW | CH-22-400-3~10 |
| CH-28-400-15~90 | |
| CH-32-400-100~200 | |
| CV-22-400-3~10 | |
| CV-28-400-15~90 | |
| CV-32-400-100~200 | |
| 0.55KW | CH-22-550-3~25 |
| CH-32-550-30~120 | |
| CV-22-550-3~25 | |
| CV-32-550-30~120 | |
| 0.75KW | CH-22-750-3~25 |
| CH-28-750-3~25 | |
| CH-32-750-30~120 | |
| CH-40-750-130~200 | |
| CV-22-750-3~25 | |
| CV-28-750-3~25 | |
| CV-32-750-30~120 | |
| CV-40-750-100~200 | |
| 1.1KW | CH-28-1100-3~25 |
| CH-32-1100-30~50 | |
| CH-40-1100-130~200 | |
| CV-28-1100-3~25 | |
| CV-32-1100-30~50 | |
| CV-40-1100-130~200 | |
| 1.5KW | CH-28-1500-3~25 |
| CH-32-1500-3~30 | |
| CH-40-1500-35~100 | |
| CH-50-1500-110~200 | |
| CV-28-1500-3~25 | |
| CV-32-1500-3~30 | |
| CV-40-1500-35~100 | |
| CV-50-1500-110~200 | |
| 2.2KW | CH-40-2200-3~40 |
| CH-50-2200-50~100 | |
| CV-40-2200-3~40 | |
| CV-50-2200-50~100 | |
| 3.7KW | CH-40-3700-3~10 |
| CH-50-3700-15~60 | |
| CV-40-3700-3~10 | |
| CV-50-3700-15~60 |
Instant & Reliable Braking
Equipped with high-sensitivity brake system, achieving rapid stop (≤0.2s response) and secure positioning to prevent machinery slippage in safety-critical scenarios.
High Torque + Brake Integration
Combines robust torque output with built-in braking function, eliminating extra brake installation and ensuring compact structure for space-limited industrial equipment.
Durable Brake & Gear Synergy
Brake components adopt wear-resistant friction materials, paired with precision gears for long service life and consistent performance under frequent start-stop cycles.
Safe Self-Locking Protection
Features mechanical self-locking after braking, maintaining load stability without continuous power supply—ideal for vertical lifting or inclined conveyor applications.
Low-Noise & Smooth Operation
Optimized gear meshing and brake damping design reduce noise (≤72dB), ensuring quiet, vibration-free performance while delivering reliable braking and power transfer.
Versatile Safety Adaptability
Supports multiple voltage/brake control modes, adapting to diverse industrial machinery (hoists, conveyors, automation) with safety-critical operational demands.
The full range of products includes motors, input interfaces, output modules, installation forms, etc., which can be personalized designed and manufactured according to customer needs.
We offer multiple color schemes such as RAL7045 (gray), RAL9011 (black), RAL5015 (blue), RAL9003 (white), RAL3014 (purple), etc. Customers can choose the corresponding product color according to their different needs.
Our nameplate is made of stainless steel laser printing technology, which can be customized according to the different needs of customers, especially by adding a product QR code. Scanning the QR code can quickly access product information and sales service information.
Conventional packaging forms include cardboard boxes, pallets, and wooden boxes. We can also customize the outer box packaging according to customer needs.
