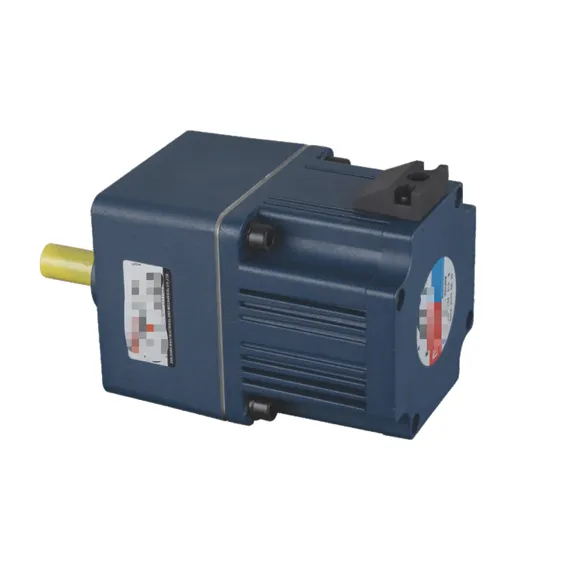

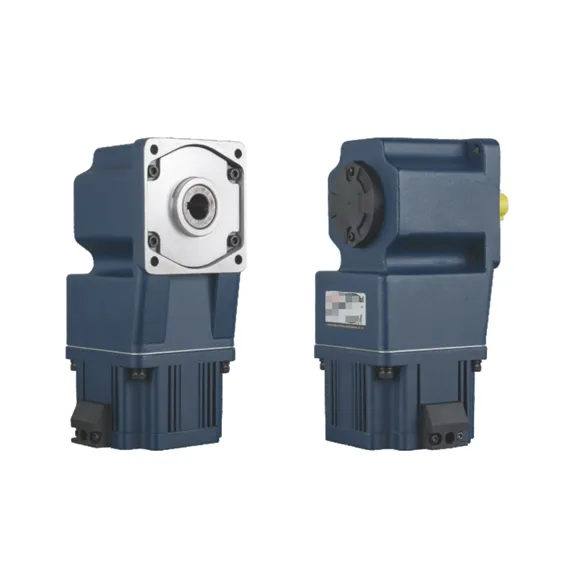

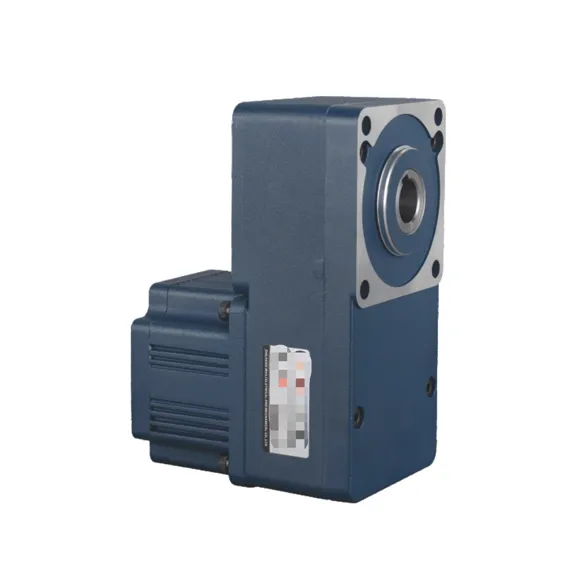

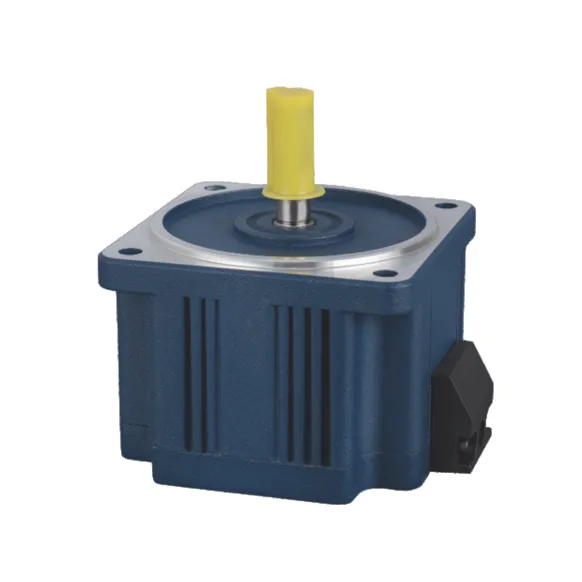

Brushless DC Motor

Name: Brushless DC Motor
Brand: Hangzhou GT Rail Traffic Equipment Co., Ltd

TATA Drive's Brushless DC Motors feature 70%-98% efficiency, 6V-600VDC voltage, 0.05N·m-1000N·m torque, and <60dB noise. IP54-IP68 protection, encoder-compatible, ideal for robotics, EVs and industrial automation.

Specifations

Features

Dimensions

Motor

Specifations
Brushless DC Motor

●60 Round shaft series Motor Parameters
Motor Model	Voltage(V)	Rated Power(W)	Rated Current(A)	Rated Speed(RPM)	Rated Torque(N.m)
ML2BLD	DC12V	15	2.1	2000	0.07
		15	2	3000	0.05
		20	2.7	2000	0.09
		20	2.5	3000	0.06
		25	3.5	2000	0.11
		25	3.4	3000	0.08
	DC24V	15	1	2000	0.07
		15	0.9	3000	0.05
		20	1.4	2000	0.09
		20	1.3	3000	0.06
		25	1.7	2000	0.12
		25	1.8	2000	0.08
		30	2.1	2000	0.14
		30	2.2	3000	0.1
		40	2.8	2000	0.19
		40	2.7	3000	0.13
	DC48V	15	0.5	2000	0.07
		15	0.4	3000	0.05
		20	0.7	2000	0.09
		20	0.6	3000	0.06
		25	0.9	2000	0.12
		25	0.8	3000	0.08
		30	1.1	2000	0.14
		30	0.9	3000	0.1二
		40	1.4	2000	0.19
		40	1.3	3000	0.13
	AC220V	30	0.42	3000	0.1
	AC220V	40	0.56	3000	0.13

●70 Round shaft series Motor Parameters
Motor Model	Voltage(V)	Rated Power(W)	Rated Current(A)	Rated Speed(RPM)	Rated Torque(N.m)
ML3BLD	DC12V	15	2.1	2000	0.07
		15	2	3000	0.05
		20	2.7	2000	0.09
		20	2.5	3000	0.06
		25	3.5	2000	0.11
		25	3.4	3000	0.08
	DC24V	15	1	2000	0.07
		15	0.9	3000	0.05
		20	1.4	2000	0.09
		20	1.3	3000	0.06
		25	1.7	2000	0.12
		25	1.8	3000	0.08
		30	2.1	2000	0.14
		30	2.2	3000	0.1
		40	2.8	2000	0.19
		40	2.7	3000	0.13
	DC48V	15	0.5	2000	0.07
		15	0.4	3000	0.05
		20	0.7	2000	0.09
		20	0.6	3000	0.06
		25	0.9	2000	0.12
		25	0.8	3000	0.08
		30	1.1	2000	0.14
		30	0.9	3000	0.1
		40	1.4	2000	0.19
		40	1.3	3000	0.13
	AC220V	30	0.42	3000	0.1
	AC220V	40	0.56	3000	0.13

●80 Round shaft series Motor Parameters
Motor Model	Voltage(V)	Rated Power(W)	Rated Current(A)	Rated Speed(RPM)	Rated Torque(N.m)
ML4BLD	DC12V	25	3.2	2000	0.12
		25	3	3000	0.08
		40	5.1	2000	0.19
		40	4.9	3000	0.13
		60	7.7	2000	0.29
		60	7.3	3000	0.19
		90	11.5	2000	0.43
		90	11	3000	0.29
		120	15.4	2000	0.57
		120	14.7	3000	0.38
	DC24V	25	1.6	2000	0.12
		25	1.5	3000	0.08
		40	2.6	2000	0.19
		40	2.4	3000	0.13
		60	3.8	2000	0.29
		60	3.6	3000	0.19
		90	5.8	2000	0.43
		90	5.5	3000	0.29
		120	7.7	2000	0.57
		120	7.3	3000	0.38
	DC48V	25	0.8	2000	0.12
		25	0.7	3000	0.08
		40	1.3	2000	0.19
		40	1.2	3000	0.13
		60	1.9	2000	0.29
		60	1.8	3000	0.19
		90	2.9	2000	0.43
		90	2.8	3000	0.29
		120	3.8	2000	0.57
		120	3.6	3000	0.38
	DC110V	40	1.1	2000	0.19
		40	0.9	3000	0.13
		60	1.53	2000	0.29
		60	1.5	3000	0.19
		90	2.28	2000	0.43
		90	2.2	3000	0.29
		120	3	2000	0.57
		120	2.9	3000	0.38
	AC220V	40	0.56	2000	0.19
		40	0.46	3000	0.13
		60	0.76	2000	0.29
		60	0.73	3000	0.19
		90	1.15	2000	0.43
		90	1.1	3000	0.29
		120	1.53	2000	0.57
		120	1.5	3000	0.38

●90 Round shaft series Motor Performance
Motor Model	Voltage(V)	Rated Power(W)	Rated Current(A)	Rated Speed(RPM)	Rated Torque(N.m)
ML5BLD	DC24V	60	3.3	2000	0.29
		60	3.2	3000	0.19
		90	5	2000	0.43
		90	4.8	3000	0.29
		120	6.7	2000	0.57
		120	6.4	3000	0.38
		150	8.3	2000	0.72
		150	8	3000	0.48
		200	11.1	2000	0.96
		200	10.6	3000	0.64
	DC48V	60	1.7	2000	0.29
		60	1.6	3000	0.19
		90	2.5	2000	0.43
		90	2.4	3000	0.29
		120	3.3	2000	0.57
		120	3.2	3000	0.38
		150	4.2	2000	0.72
		150	4	3000	0.48
		200	5.6	2000	0.96
		200	5.3	3000	0.64
	AC110V	60	1.3	2000	0.29
		60	1.2	3000	0.19
		90	1.95	2000	0.43
		90	1.9	3000	0.29
		120	2.6	2000	0.57
		120	2.2	3000	0.38
		150	3.2	2000	0.72
		150	3	3000	0.48
		200	4.3	2000	0.96
		200	4	3000	0.64
	AC220V	60	0.65	2000	0.29
		60	0.55	3000	0.19
		90	0.98	2000	0.43
		90	0.9	3000	0.29
		120	1.3	2000	0.57
		120	1.1	3000	0.38
		150	1.62	2000	0.72
		150	1.5	3000	0.48
		200	2.15	2000	0.96
		200	2	3000	0.64

●100 Round shaft series Motor Performance
Moto Model	Voltage(V)	Rated Power(W)	Rated Current(A)	Rated Speed(RPM)	Rated Torque(N.m)
ML6BLD	DC24V	200	10.4	2000	0.96
		200	10	3000	0.64
		300	15.6	2000	1.43
		300	15	3000	0.96
		400	20.8	2000	1.91
		400	20.3	3000	1.27
	DC4BV	200	5.2	2000	0.96
		200	5	3000	0.64
		300	7.8	2000	1.43
		300	7.6	3000	0.96
		400	10.4	2000	1.91
		400	10	3000	1.27
	AC110V	200	3.7	2000	0.96
		200	3.6	3000	0.64
		300	5.5	2000	1.43
		300	5.2	3000	0.96
		400	7.3	2000	1.91
		400	7	3000	1.27
	AC220V	200	1.8	2000	0.96
		200	1.7	3000	0.64
		300	2.75	2000	1.43
		300	2.6	3000	0.96
		400	3.7	2000	1.91
		400	3.6	3000	1.27
		500	4.58	2000	2.38
		500	4.4	3000	1.59

Features
Brushless DC Motor

Ultra-High Energy Efficiency:
Permanent magnet and optimized winding design achieve 70%-98% efficiency. Saves 30%-50% energy vs brushed motors, cutting long-term operational costs.
Extended Lifespan & Low Maintenance:
No brush friction reduces wear. Service life reaches 20,000-100,000 hours, with minimal upkeep for industrial continuous operation.
Precision Control & Fast Response:
Supports PWM speed regulation and 10,000ppr encoder feedback. Speed stability ±0.05%, enabling rapid positioning for automation equipment.
Quiet & Stable Operation:
Electronic commutation minimizes vibration. Noise stays below 60dB, with smooth torque output for medical and indoor equipment.
Strong Environmental Adaptability:
Protection classes from IP54 (dustproof) to IP68 (submersible). Resists moisture, corrosion, suitable for industrial, marine and outdoor scenarios.

Dimensions
Brushless DC Motor

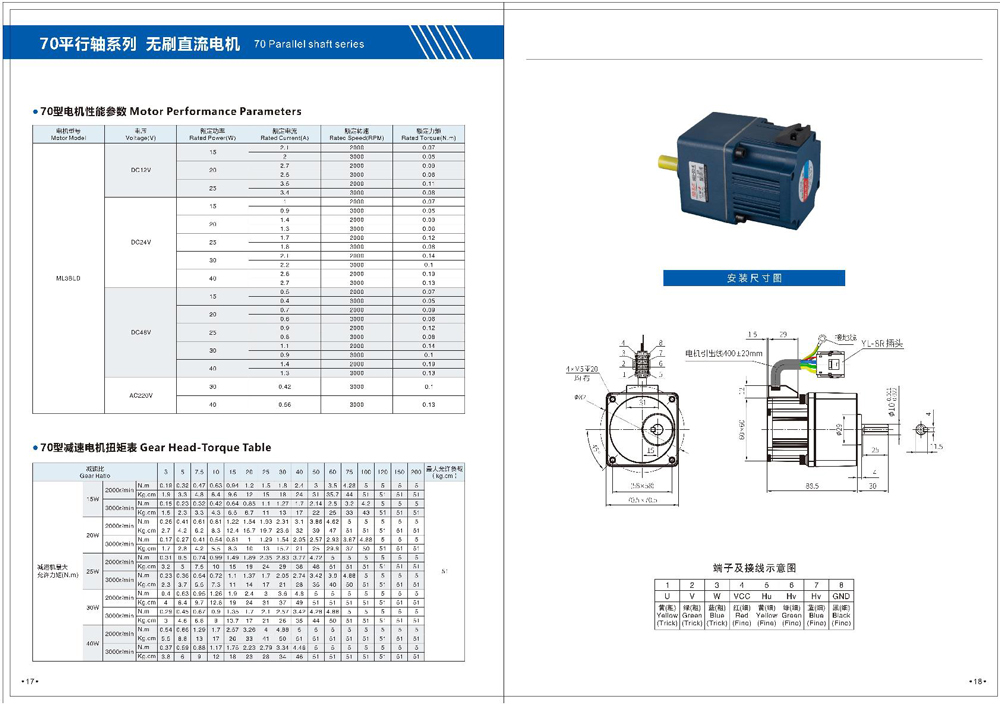

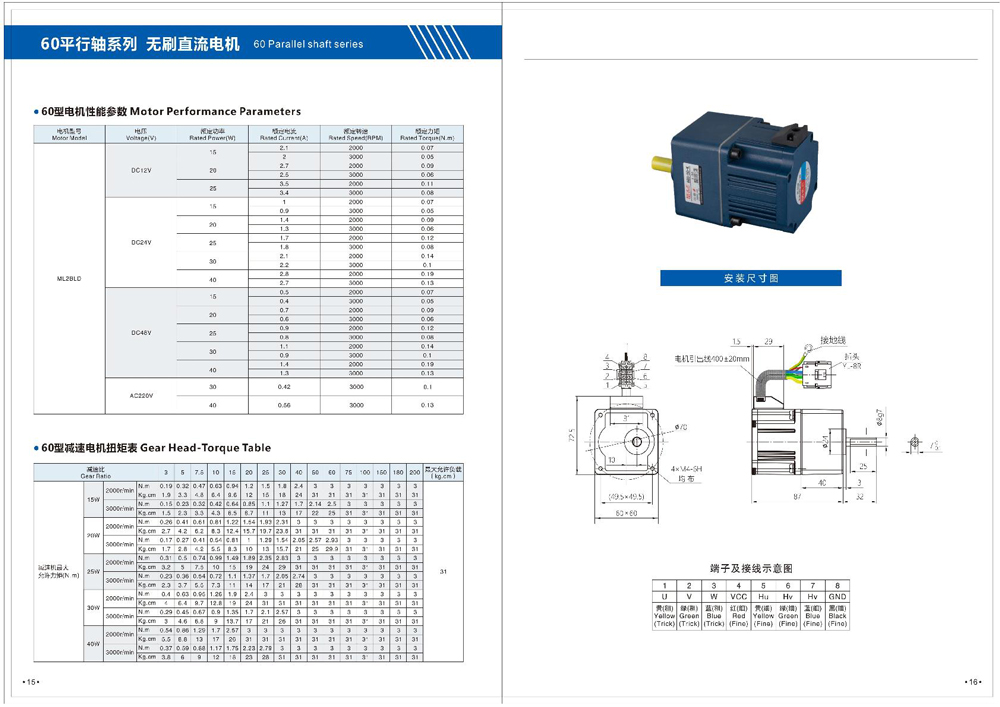

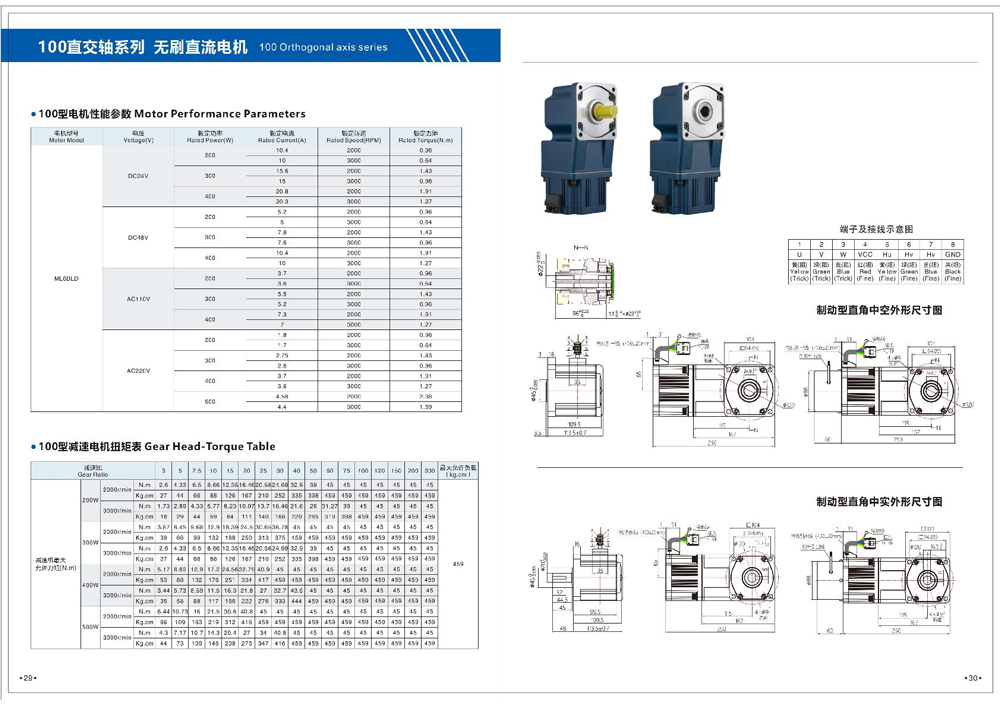

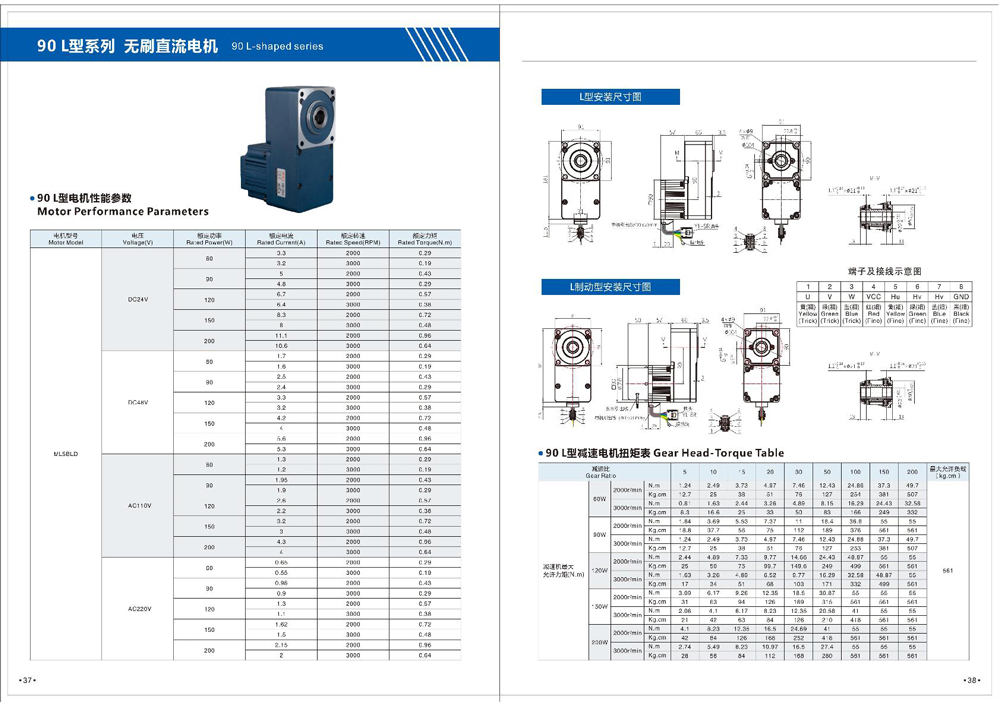

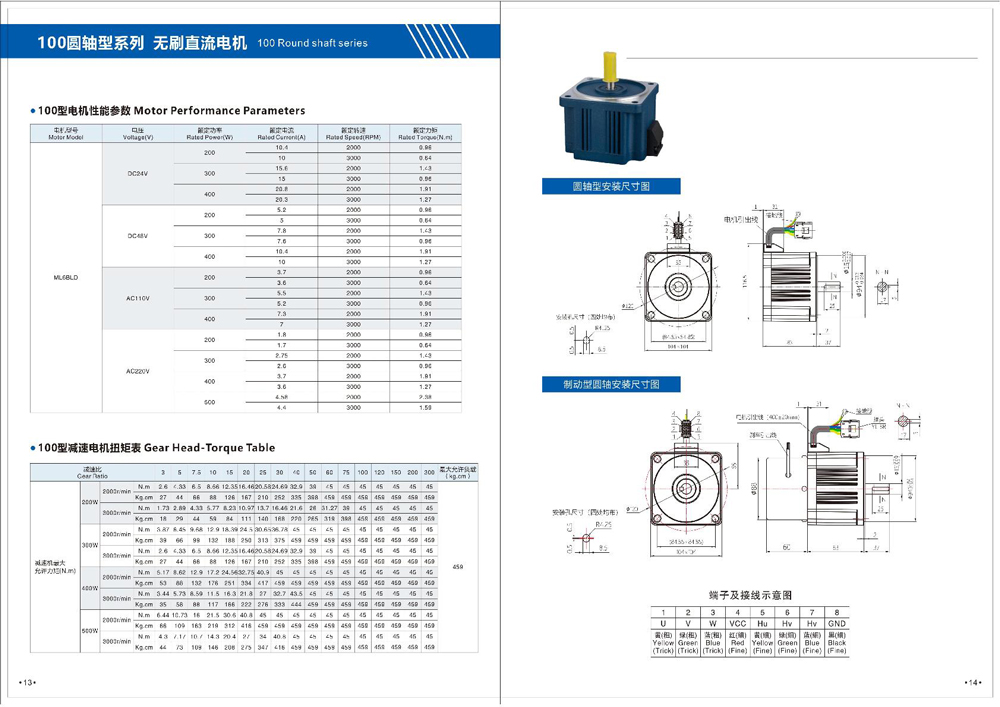

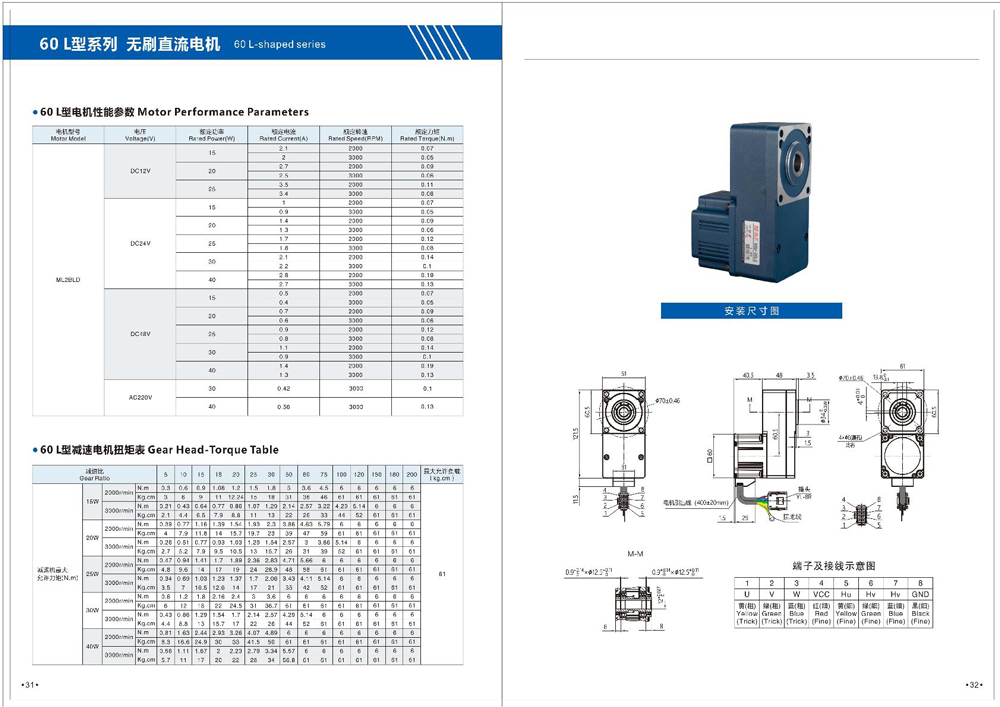

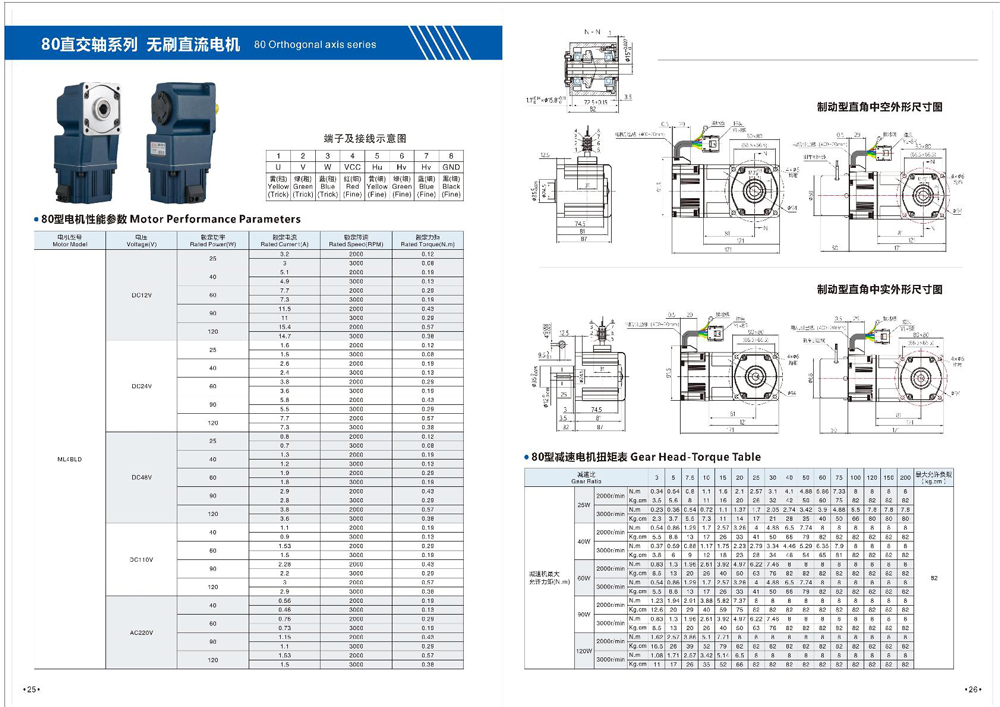

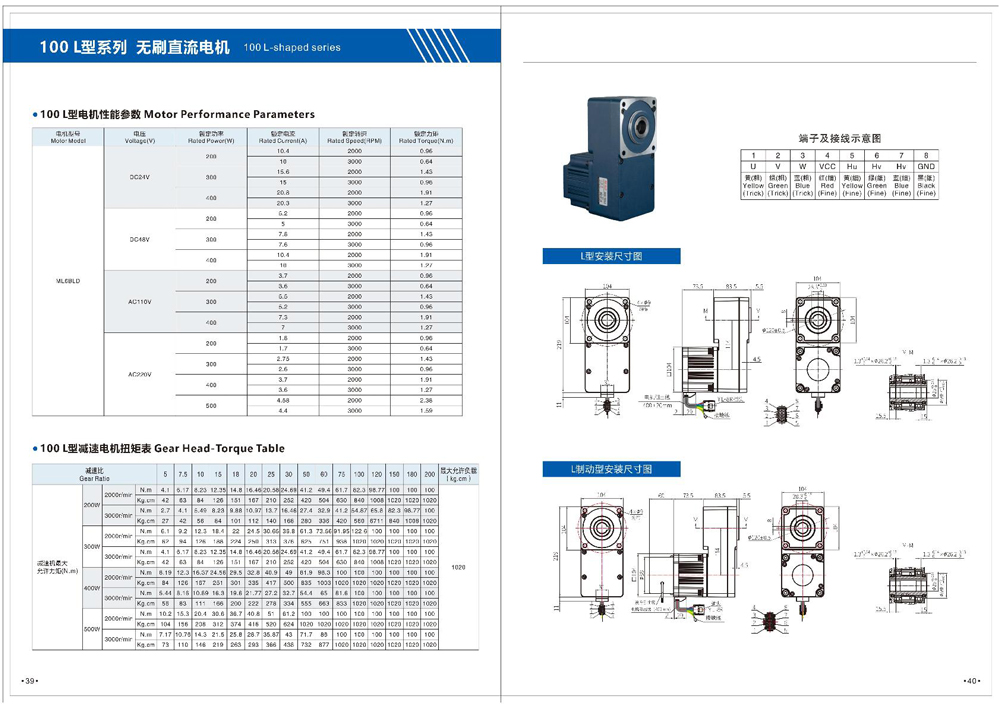

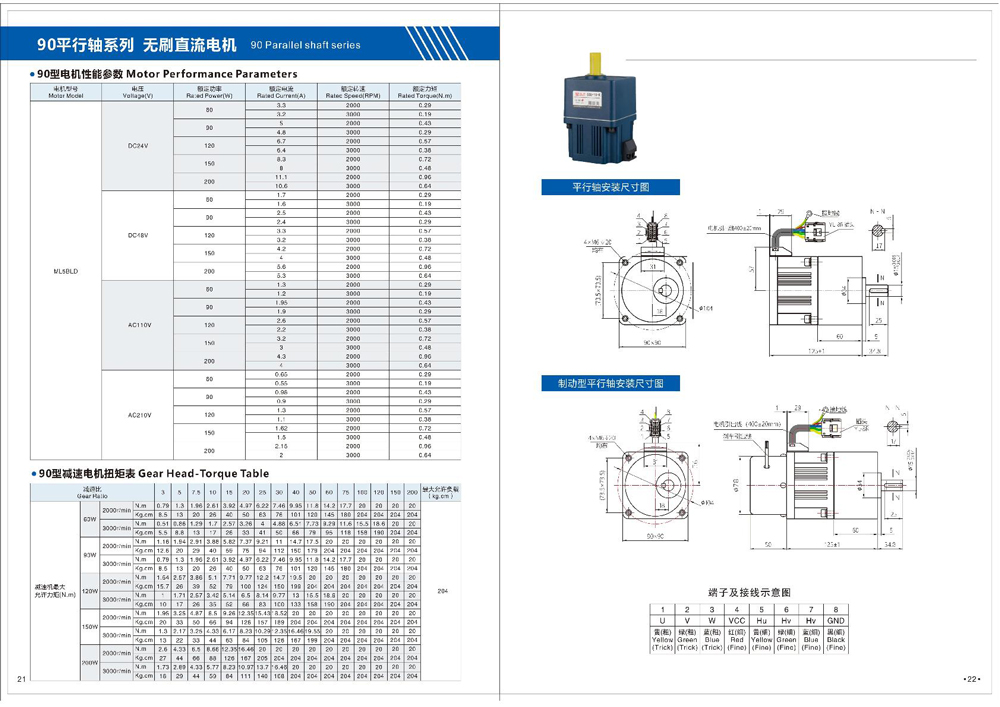

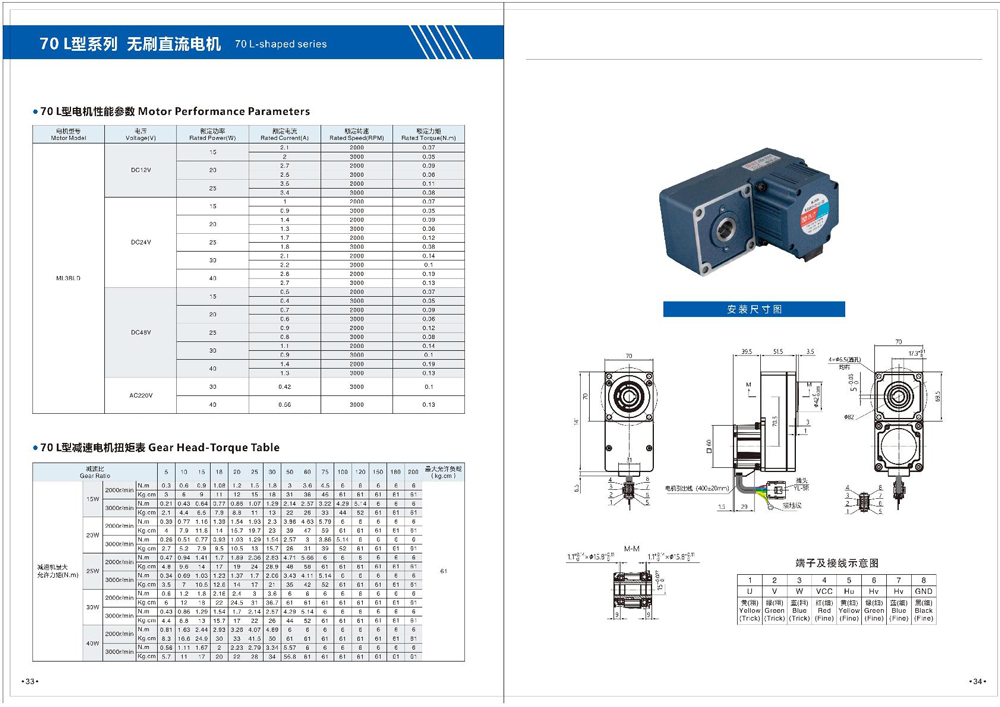

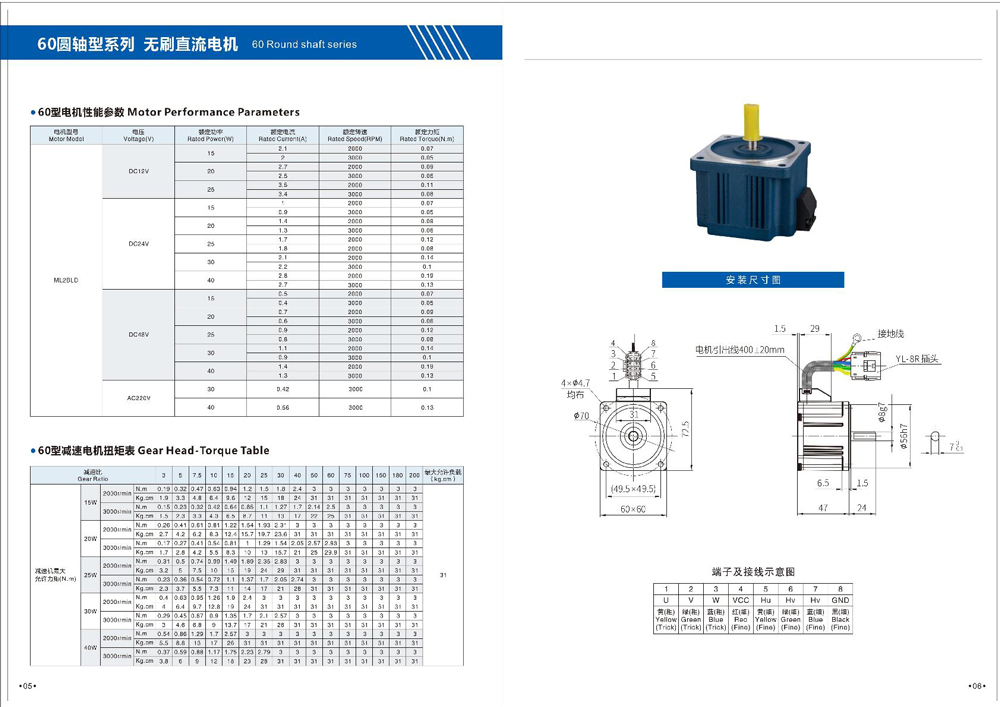

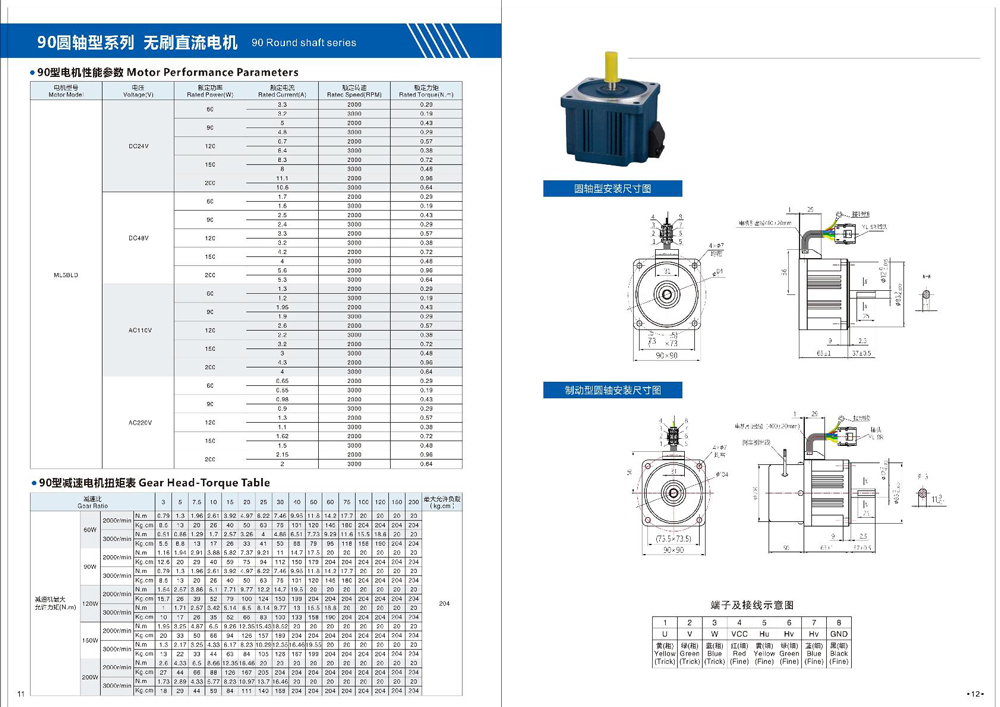

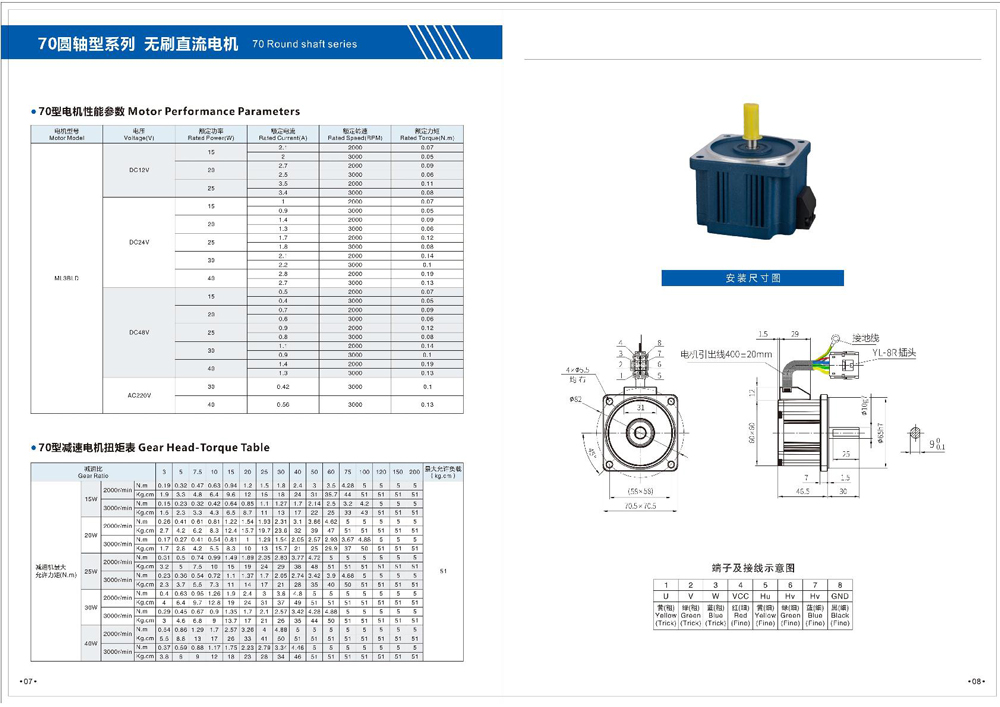

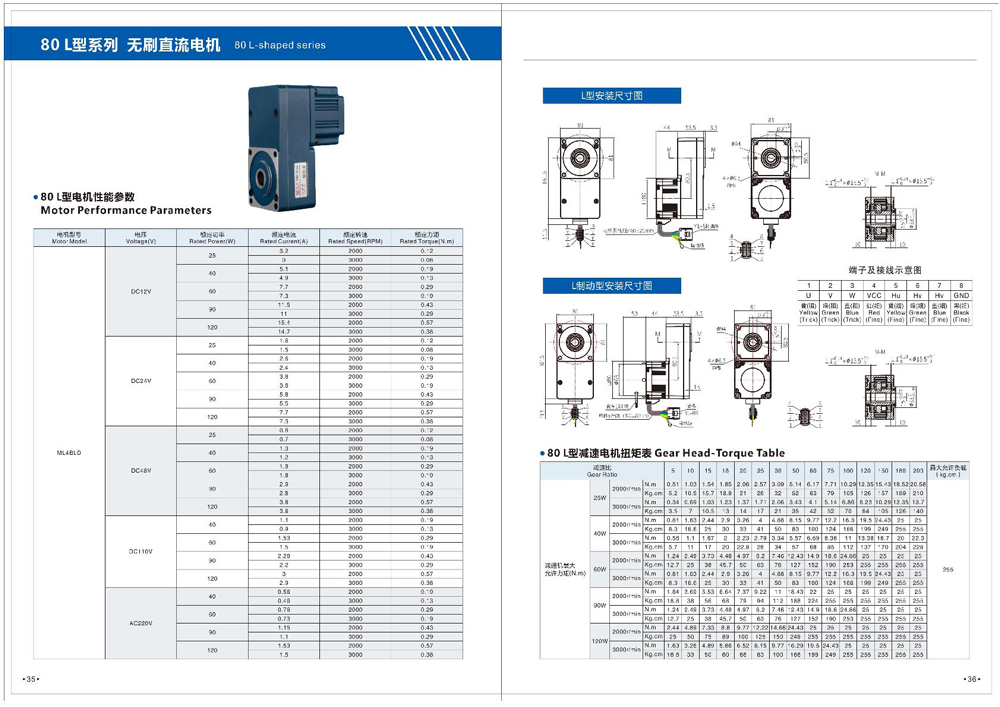

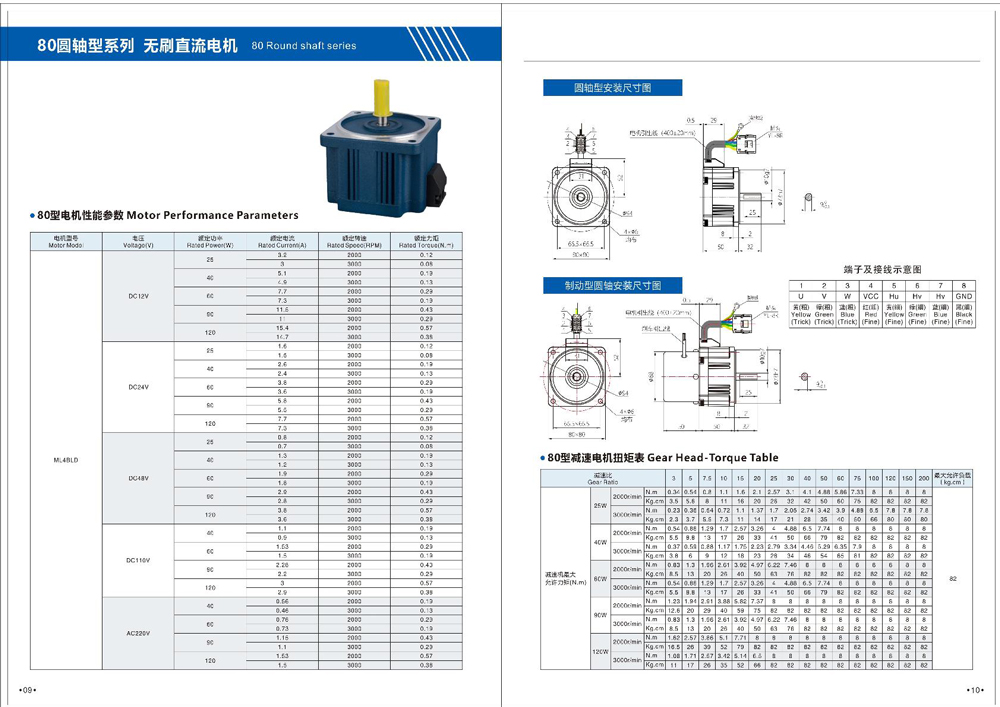

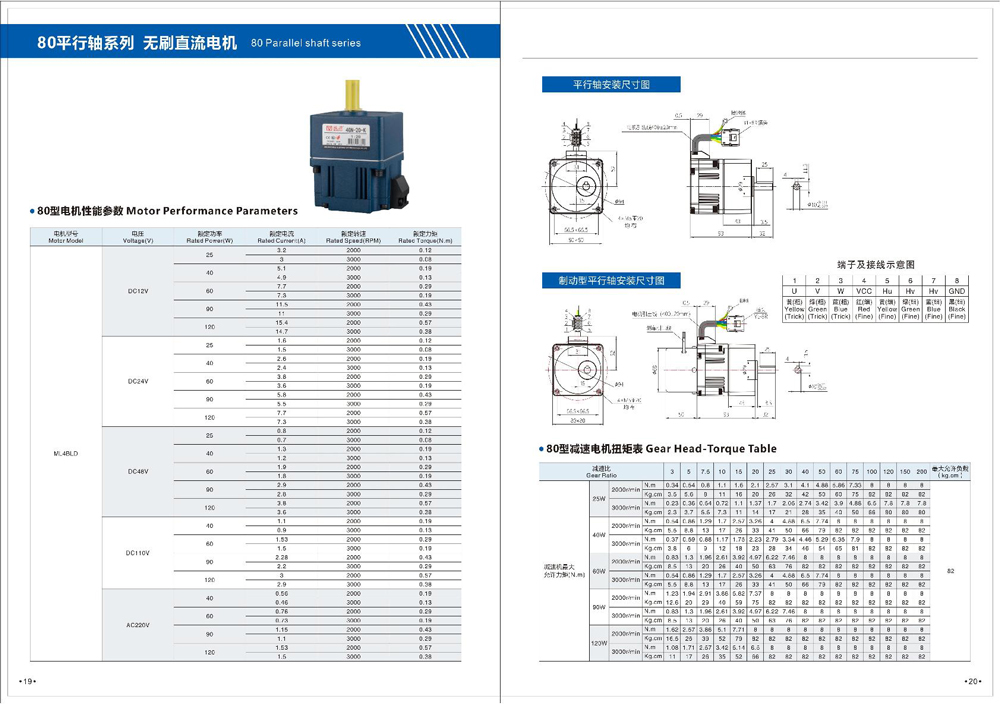

Dimensions of Brushless DC Motor

Motor
Product Service

Modular Integration

The full range of products includes motors, input interfaces, output modules, installation forms, etc., which can be personalized designed and manufactured according to customer needs.

Color Scheme

We offer multiple color schemes such as RAL7045 (gray), RAL9011 (black), RAL5015 (blue), RAL9003 (white), RAL3014 (purple), etc. Customers can choose the corresponding product color according to their different needs.

Identification Nameplate

Our nameplate is made of stainless steel laser printing technology, which can be customized according to the different needs of customers, especially by adding a product QR code. Scanning the QR code can quickly access product information and sales service information.

Packaging Style

Conventional packaging forms include cardboard boxes, pallets, and wooden boxes. We can also customize the outer box packaging according to customer needs.
