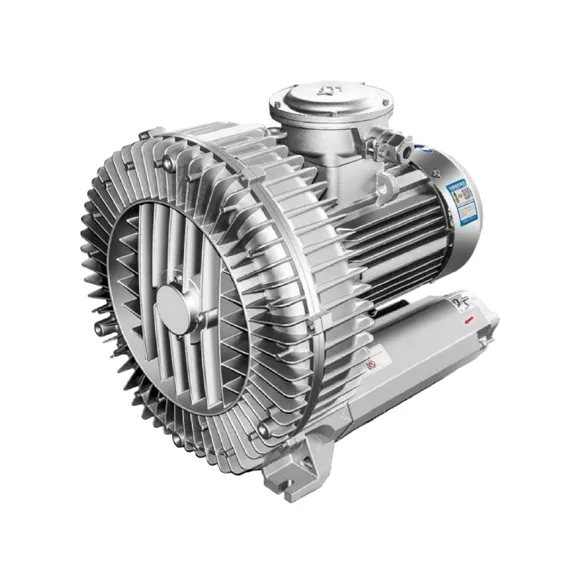

TATA Drive's Explosion-proof Fan meets Ex d IIB/IIC T4-T6 standards, with 0.75-160kW power, 1000-500,000m³/h air volume. Sealed, corrosion-resistant, ideal for chemical/mining flammable gas/dust ventilation.
| Model | Frequency | Rated Power | Rated voltage | Rated current | Max. flow | Max. pressure | Max. vacuum | Noise | Duct caliber | G.W | |
| (HZ) | (KW) | (V) | (A) | (m³/h) | (Kpa) | (Kpa) | (db) | (mm) | (KG) | ||

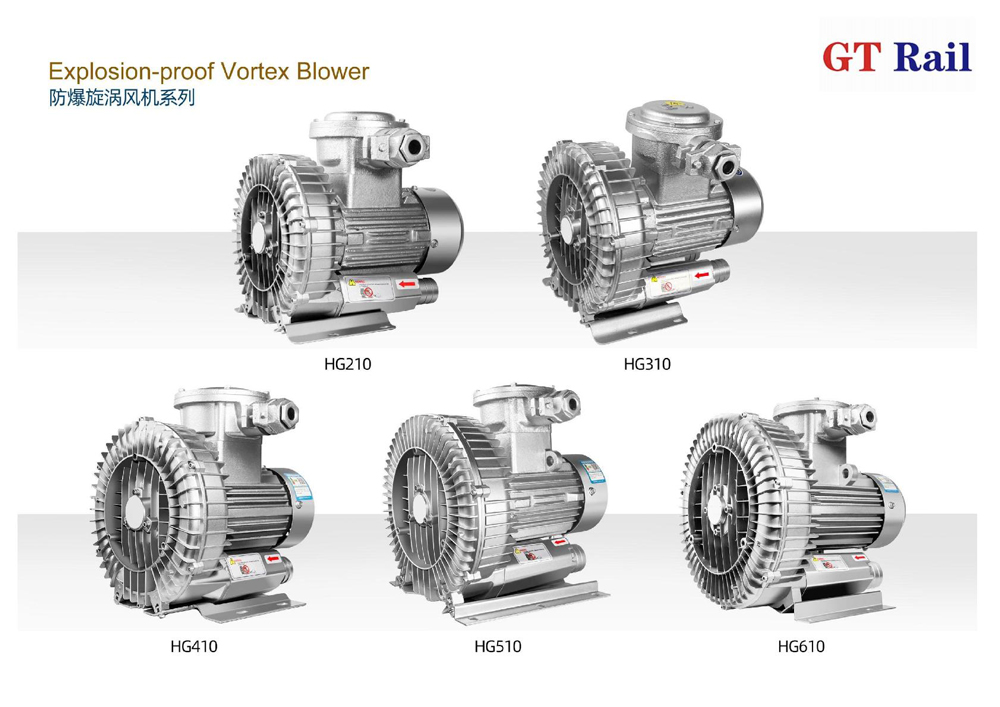

| HG210-37AF | 50 | 0.37 | 200-240△ 345-415Y | 2.6△ 1.5Y | 80 | 10 | -9.0 | <53 | 40 | 26 | |
| 60 | 0.42 | 220-275△ 380-480Y | 2.6△ 1.5Y | 98 | 10 | -9.0 | <56 | 40 | 26 | ||
| HG310-55AF | 50 | 0.55 | 200-240△ 345-415Y | 2.8△ 1.6Y | 100 | 12 | -11 | <55 | 40 | 28 | |
| 60 | 0.62 | 220-275△ 380-480Y | 3.0△ 1.7Y | 120 | 12 | -11 | <57 | 40 | 28 | ||
| HG410-75AF | 50 | 0.75 | 200-240△ 345-415Y | 3.8△ 2.2Y | 145 | 18 | -17 | <63 | 50 | 35 | |
| 60 | 0.83 | 220-275△ 380-480Y | 3.75△ 2.15Y | 175 | 20 | -19 | <64 | 50 | 35 | ||
| HG510-11BF | 50 | 1.1 | 200-240△ 345-415Y | 5.1△ 3.0Y | 200 | 23 | -21 | <63 | 60 | 47 | |
| 60 | 1.25 | 220-275△ 380-480Y | 5.2△ 3.2Y | 245 | 26 | -24 | <69 | 60 | 47 | ||
| HG510-15BF | 50 | 1.5 | 200-240△ 345-415Y | 6.2△ 3.6Y | 210 | 24 | -22 | <64 | 60 | 47 | |
| 60 | 1.75 | 220-275△ 380-480Y | 6.9△ 4.0Y | 255 | 27 | -25 | <70 | 60 | 47 | ||
| HG610-22BF | 50 | 2.2 | 200-240△ 345-415Y | 8.5△ 4.8Y | 270 | 27 | -25 | <66 | 60 | 54 | |
| 60 | 2.55 | 220-275△ 380-480Y | 8.8△ 5.1Y | 300 | 32 | -29 | <70 | 60 | 54 | ||

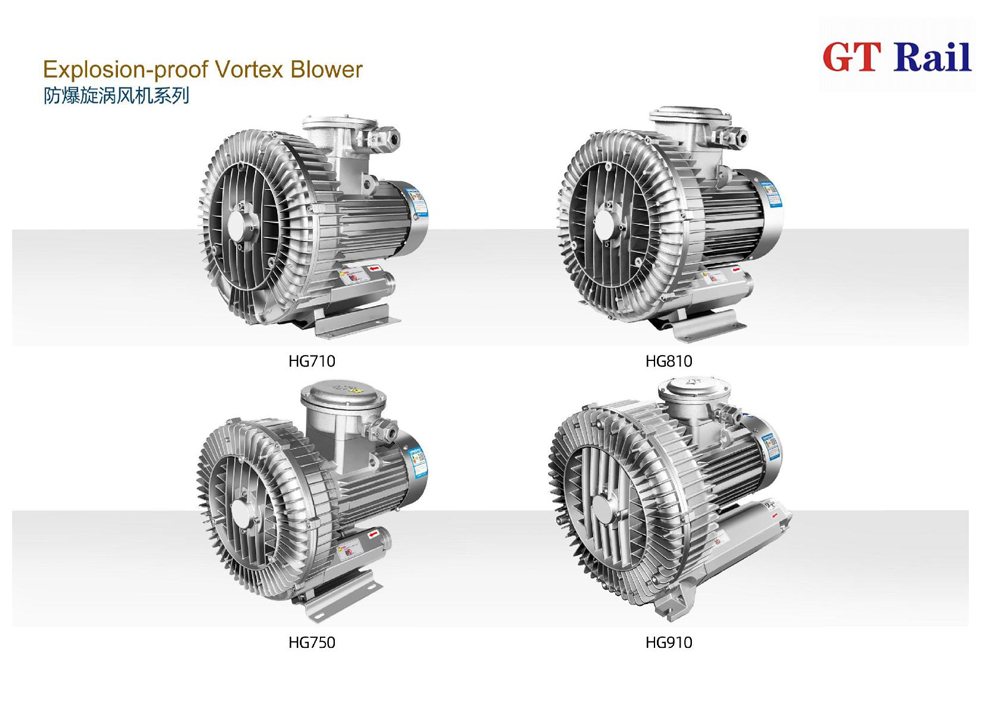

| HG710-22BF | 50 | 2.2 | 200-240△ 345-415Y | 8.9△ 5.2Y | 318 | 33 | -30 | <69 | 60 | 65 | |
| 60 | 2.55 | 220-275△ 380-480Y | 10.3△ 6.5Y | 376 | 38 | -35 | <72 | 60 | 65 | ||
| HG710-30BF | 50 | 3.0 | 200-240△ 345-415Y | 12.2△ 7.3Y | 318 | 35 | -32 | <69 | 60 | 67 | |
| 60 | 3.5 | 220-275△ 380-480Y | 14△ 8.1Y | 376 | 40 | -37 | <72 | 60 | 67 | ||
| HG750-40CF | 50 | 4.0 | 345-415△ 600-720Y | 9.3△ 5.4Y | 430 | 41 | -37 | <70 | 75 | 92 | |
| 60 | 4.6 | 380-480△ 660-720Y | 10.8△ 5.5Y | 470 | 46 | -37 | <73 | 75 | 92 | ||
| HG810-55CF | 50 | 5.5 | 345-415△ 600-720Y | 12.9△ 7.4Y | 500 | 45 | -43 | <80 | 75 | 115 | |
| 60 | 6.3 | 380-480△ 660-720Y | 12.9△ 7.45Y | 580 | 50 | -48 | <82 | 75 | 115 | ||
| HG810-75CF | 50 | 7.5 | 345-415△ 600-720Y | 16.7△ 9.6Y | 520 | 51 | -46 | <80 | 75 | 118 | |
| 60 | 8.6 | 380-480△ 660-720Y | 17.3△ 10Y | 610 | 56 | -50 | <82 | 75 | 118 | ||
| HG910-90CF | 50 | 9.0 | 345-415△ 600-720Y | 22△ 12.2Y | 800 | 56 | -48 | <74 | 115 | 170 | |
| 60 | 10.3 | 380-480△ 660-720Y | 23△ 13Y | 950 | 65 | -56 | <79 | 115 | 170 | ||
| HG910-110CF | 50 | 11 | 345-415△ 600-720Y | 28△ 16.2Y | 1100 | 57 | -50 | <74 | 115 | 246 | |
| 60 | 12.6 | 380-480△ 660-720Y | 29△ 16.7Y | 1300 | 67 | -58 | <79 | 115 | 246 | ||
| HG910-150CF | 50 | 15 | 345-415△ 600-720Y | 33△ 20Y | 1150 | 64 | -56 | <74 | 115 | 252 | |
| 60 | 16.5 | 380-480△ 660-720Y | 37△ 22Y | 1350 | 73 | -62 | <79 | 115 | 252 | ||
| HG910-185CF | 50 | 18.5 | 345-415△ 600-720Y | 41△ 25Y | 1200 | 68 | -59 | <80 | 115 | 258 | |
| 60 | 21.3 | 380-480△ 660-720Y | 47△ 25Y | 1400 | 80 | -69 | <82 | 115 | 258 | ||
| HG930-150CF | 50 | 15 | 345-415△ 600-720Y | 33△ 20Y | 1150 | 64 | -56 | <74 | 115 | 255 | |
| 60 | 17.3 | 380-480△ 660-720Y | 36.5△ 21Y | 1350 | 74 | -62 | <79 | 115 | 255 | ||
Certified Explosion-Proof
Complies with Ex d IIB/IIC T4-T6, preventing spark leakage in explosive atmospheres.
High-Safety Sealing
Sealed motor housing + flameproof joints, blocking flammable gas/dust ingress.
Corrosion & High-Temp Resistant
Stainless steel/cast iron build, withstanding -40℃-200℃ and chemical corrosion.
Efficient & Low-Noise
Optimized impeller + VFD compatibility, 70%-85% efficiency, <85dB noise.
Reliable & Durable
Explosion-proof bearings, <0.5% failure rate, 8-15 years long service life.
The full range of products includes motors, input interfaces, output modules, installation forms, etc., which can be personalized designed and manufactured according to customer needs.
We offer multiple color schemes such as RAL7045 (gray), RAL9011 (black), RAL5015 (blue), RAL9003 (white), RAL3014 (purple), etc. Customers can choose the corresponding product color according to their different needs.
Our nameplate is made of stainless steel laser printing technology, which can be customized according to the different needs of customers, especially by adding a product QR code. Scanning the QR code can quickly access product information and sales service information.
Conventional packaging forms include cardboard boxes, pallets, and wooden boxes. We can also customize the outer box packaging according to customer needs.
