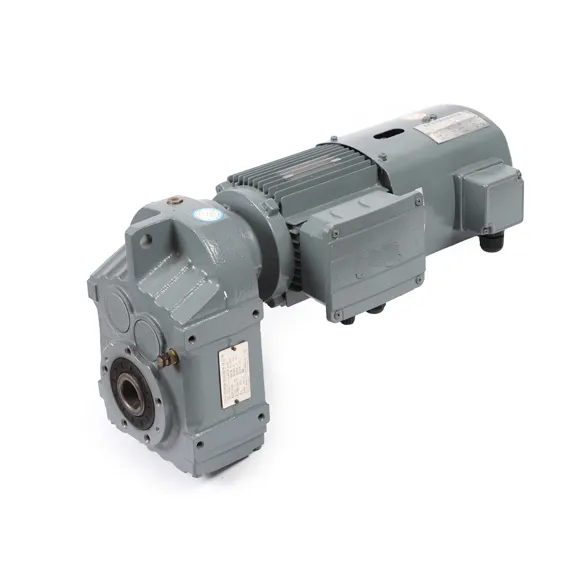

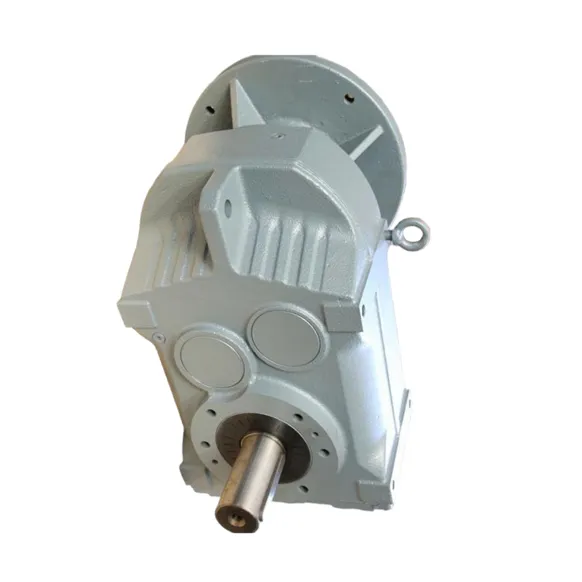

TATA Drive's F Series Helical Gear Reducer has 0.18 - 200kW power, 200 - 18000N·m torque and 3.81 - 281.71 ratios. With 94%-96% efficiency, it supports multiple mounts, suitable for mixers and conveyors, ensuring stable and efficient industrial transmission.
| Gear unit size | Stages | D63 D71 | D80 | D90 | D100 | D112 | D132S | D132M |
| F/FF/FA/FAF37 | 2 | 4.22-7.44 8.97-23.63 | 3.77-23.63 | 3.77-20.57 | 3.77-6.74 8.01-14.33 17.03 | |||
| F/FF/FA/FAF37 | 3 | 23.88-128.51 | 23.88-100.36 | 23.88-51.70 58.32-86.53 | 23.88-31.69 38.31 51.70 58.32 70.50 | |||
| F/FF/FA/FAF47 | 2 | 6.34-8.96 13.93-30.86 | 4.99-30.86 | 4.99-30.86 | 4.99-25.72 | |||
| F/FF/FA/FAF47 | 3 | 28.88-190.76 | 28.88-150.06 | 28.88-130.07 | 28.88-56.49 68.09-105.09 | |||
| F/FF/FA/FAF57 | 2 | 6.58-9.31 13.52-40.13 | 5.18-34.24 | 5.18-29.94 | 5.18-24.96 | 5.18-21.17 | ||
| F/FF/FA/FAF57 | 3 | 30.15-199.70 | 30.15-157.09 | 30.15-136.16 | 30.15-58.97 83.46-110.01 | 30.15-50.10 83.46-93.47 | ||
| F/FF/FA/FAF67 | 2 | 7.53-9.08 18.29-36.30 | 5.95-9.08 14.46-36.30 | 3.97-36.30 | 3.97-32.08 | 3.97-27.41 | 3.97-22.05 | 3.97-22.05 |
| F/FF/FA/FAF67 | 3 | 43.20-228.99 | 34.01-195.39 | 34.01-170.85| | 34.01-142.40 | 34.01-67.65 90.59-120.79 | 34.01-53.73 90.59-95.94 | 34.01-53.73 90.59-95.94 |
| F/FF/FA/FAF77 | 2 | 21.43-36.58 | 8.26-9.30 17.49-36.58 | 5.76-9.30 12.20-36.58 | 4.28-36.58 | 4.28-31.51 | 4.28-25.50 | 4.28-25.50 |
| F/FF/FA/FAF77 | 3 | 48.37-72.50 94.93-281.71 | 38.23-225.79 | 25.54-198.31 | 25.54-166.47 | 25.54-142.27 | 25.54-58.32 75.02-114.45 | 25.54-58.32 75.02-114.45 |
| F/FF/FA/FAF87 | 2 | 23.68-33.92 | 7.35-8.29 17.12-33.92 | 5.63-8.29 13.12-33.92 | 5.63-8.29 13.12-33.92 | 4.12-33.92 | 4.12-33.92 | |
| F/FF/FA/FAF87 | 3 | 109.49-270.68 | 39.30-50.36 76.39-270.68 | 29.20-228.93 | 29.20-197.20 | 29.20-159.61 | 29.20-159.61 | |
| F/FF/FA/FAF97 | 2 | 9.06 22.11-43.28 | 7.07-9.06 17.25-43.28 | 7.07-9.06 17.25-43.28 | 4.57-43.28 | 4.57-43.28 | ||
| F/FF/FA/FAF97 | 3 | 58.06-72.29 80.31 89.85-97.58 112.99-276.77 | 44.49-72.29 80.31-276.77 | 44.49-72.29 80.31-276.77 | 32.50-223.88 | 32.50-223.88 | ||
| F/FF/FA/FAF107 | 2 | 21.76-33.79 | 21.76-33.79 | 7.40-9.69 14.67-33.79 | 7.40-9.69 14.67-33.79 | |||
| F/FF/FA/FAF107 | 3 | 58.12-83.99 92.47-254.40 | 58.12-83.99 92.47-254.40 | 37.61-254.40 | 37.61-254.40 | |||
| F/FF/FA/FAF127 | 2 | 7.88-8.86 14.55-26.86 | ||||||
| F/FF/FA/FAF127 | 3 | 37.28-170.83 |
| Gear unit size | Stages | D132ML | D160M | D160L | D180 | D200 |
| F/FF/FA/FAF77 | 2 | 4.28-19.70 | 4.28-19.70 | |||
| F/FF/FA/FAF77 | 3 | 25.54-43.58 | 25.54-43.58 | |||
| F/FF/FA/FAF87 | 2 | 4.12-26.50 | 4.12-26.50 | 4.12-26.50 | 4.12-21.32 | |
| F/FF/FA/FAF87 | 3 | 29.20-123.29 | 29.20-123.29 | 29.20-123.29 | 29.20-50.36 | |
| F/FF/FA/FAF97 | 2 | 4.57-33.91 | 4.57-33.91 | 4.57-33.91 | 4.57-27.44 | 4.57-22.11 |
| F/FF/FA/FAF97 | 3 | 32.50-89.85 102.16-174.87 | 32.50-89.85 102.16-174.87 | 32.50-89.85 102.16-174.87 | 32.50-75.63 86.59 102.16-140.71 | 32.50-58.06 75.63 86.59 102.16-112.99 |
| F/FF/FA/FAF107 | 2 | 6.22-9.69 12.33-33.79 | 6.22-9.69 12.33-33.79 | 6.22-9.69 12.33-33.79 | 6.22-33.79 | 6.22-27.57 |
| F/FF/FA/FAF107 | 3 | 31.80-199.31 | 31.80-199.31 | 31.80-199.31 | 31.80-161.28 | 31.80-74.52 88.49 101.38-129.97 |
| F/FF/FA/FAF127 | 2 | 6.80-8.86 12.54-26.86 | 6.80-8.86 12.54-26.86 | 6.80-8.86 12.54-26.86 | 5.52-26.86 | 4.68-26.86 |
| F/FF/FA/FAF127 | 3 | 31.33-170.83 | 31.33-170.83 | 31.33-170.83 | 25.30-153.67 | 25.30-125.37 |
| F/FF/FA/FAF157 | 2 | 16.85-53.55 | 16.85-53.55 | 13.96-43.94 | 11.92-35.75 | |
| F/FF/FA/FAF157 | 3 | 40.06-267.43 | 40.06-267.43 | 32.55-217.62 | 27.60-178.20 |
| Gear unit size | Stages | D225 | D250M | D280 | D315 | D315M-a/b |
| F/FF/FA/FAF107 | 2 | 6.22-27.57 | ||||
| F/FF/FA/FAF107 | 3 | 31.80-74.52 88.49 101.38-129.97 | ||||
| F/FF/FA/FAF127 | 2 | 4.68-26.86 | 4.68-21.38 | 4.68-21.38 | ||
| F/FF/FA/FAF127 | 3 | 25.30-125.37 | 25.30-55.31 75.41-98.95 | 25.30-55.31 75.41-98.95 | ||
| F/FF/FA/FAF157 | 2 | 11.92-35.75 | 11.92-28.60 | 11.92-28.60 | 11.92-22.16 | 11.92-16.85 |
| F/FF/FA/FAF157 | 3 | 27.60-178.20 | 27.60-68.28 96.53-141.80 | 27.60-68.28 96.53-141.80 | 27.60-52.24 96.53-108.49 | 27.60-40.06 |
High-Efficiency & Large Torque:
Two-stage efficiency hits 96%, three-stage 94%. Heat-treated alloy steel gears enable it to transmit up to 18000N·m torque with minimal power loss.
Compact Parallel Shaft Structure:
Rigid cast iron housing and parallel shaft design save space. Precision machining ensures shaft parallelism, realizing smooth and high-torque transmission.
Diversified Installation Modes:

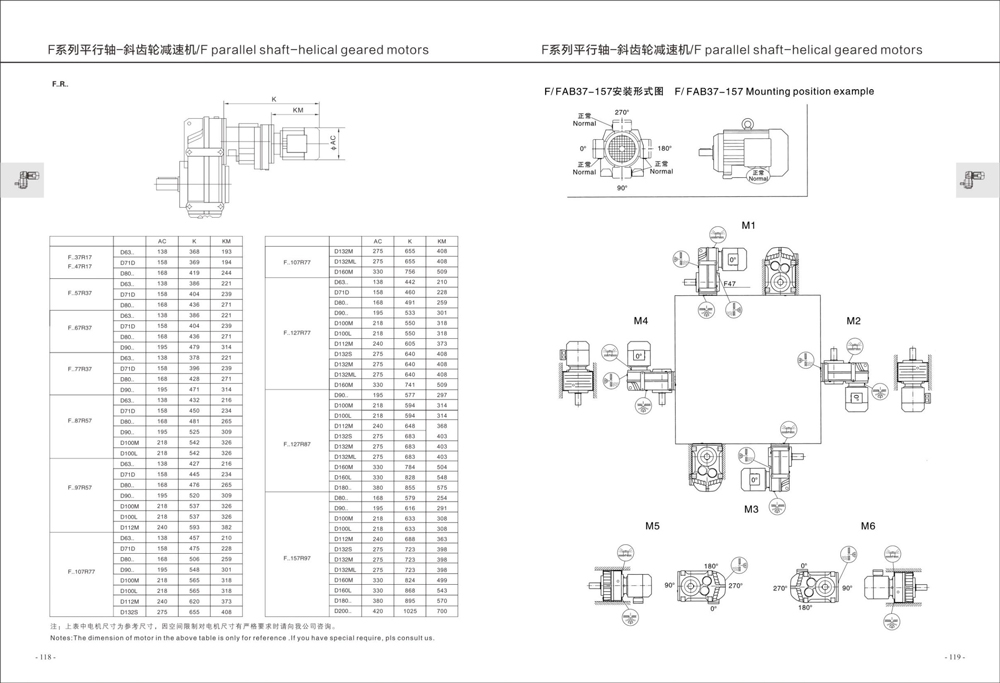

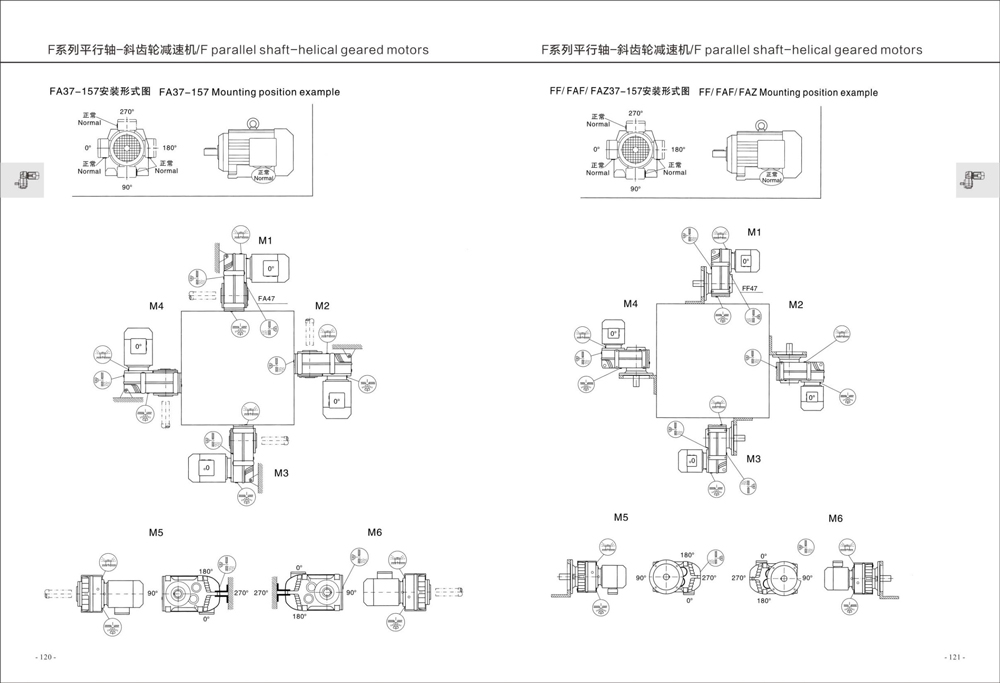

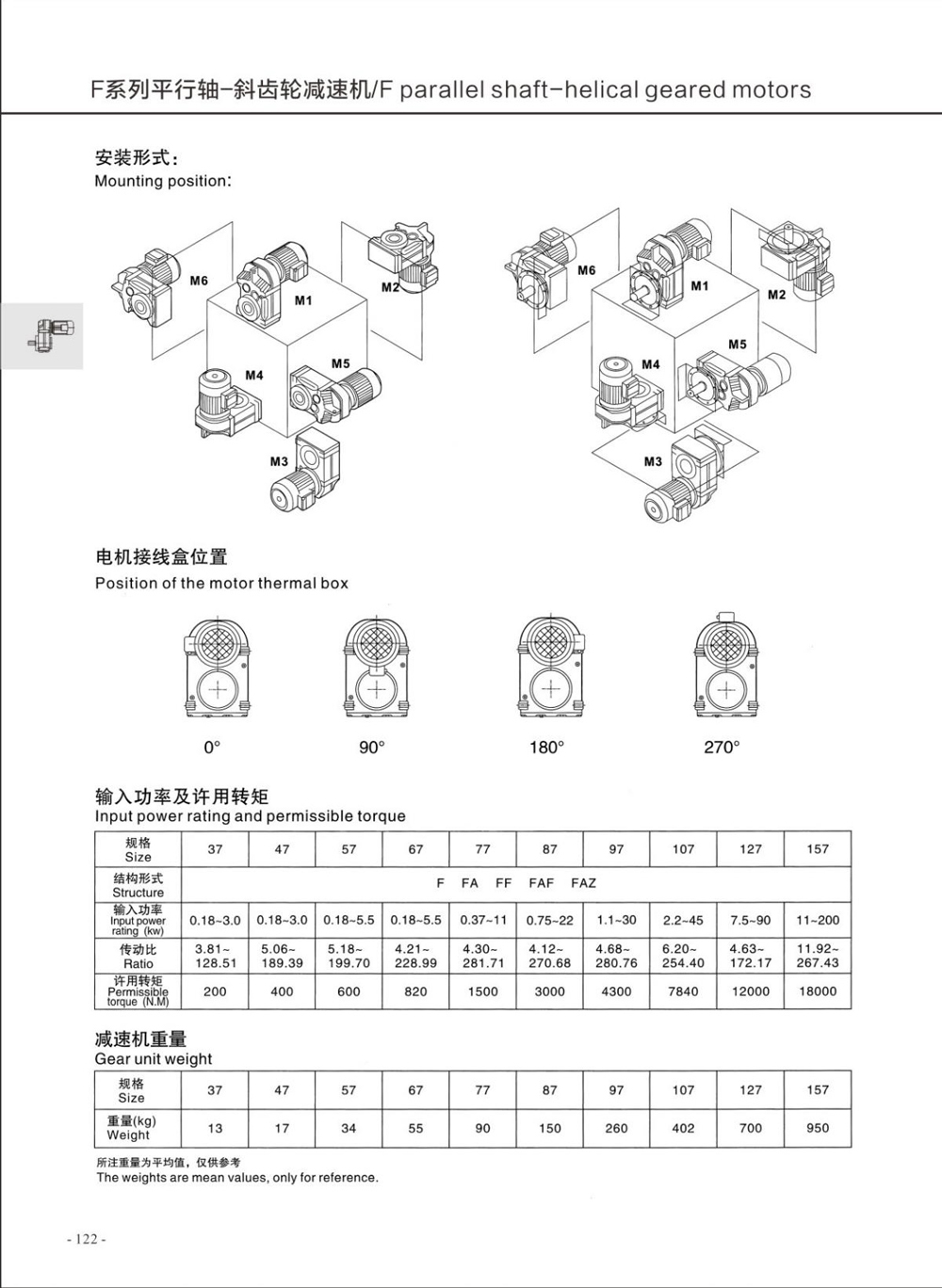

Supports foot, flange, torque arm mounting, with solid/hollow shaft output, easily integrating into various industrial equipment layouts.
Strong Durability & Overload Capacity:
Gears with 60HRC hardness and thick hard layer resist wear. It bears high overloads and works stably for long periods in harsh industrial environments.
Flexible Ratio Combination:
Basic ratios span 3.81 - 281.71; F/R combination ratio reaches up to 31434, meeting diverse speed-reduction demands.
The full range of products includes motors, input interfaces, output modules, installation forms, etc., which can be personalized designed and manufactured according to customer needs.
We offer multiple color schemes such as RAL7045 (gray), RAL9011 (black), RAL5015 (blue), RAL9003 (white), RAL3014 (purple), etc. Customers can choose the corresponding product color according to their different needs.
Our nameplate is made of stainless steel laser printing technology, which can be customized according to the different needs of customers, especially by adding a product QR code. Scanning the QR code can quickly access product information and sales service information.
Conventional packaging forms include cardboard boxes, pallets, and wooden boxes. We can also customize the outer box packaging according to customer needs.
