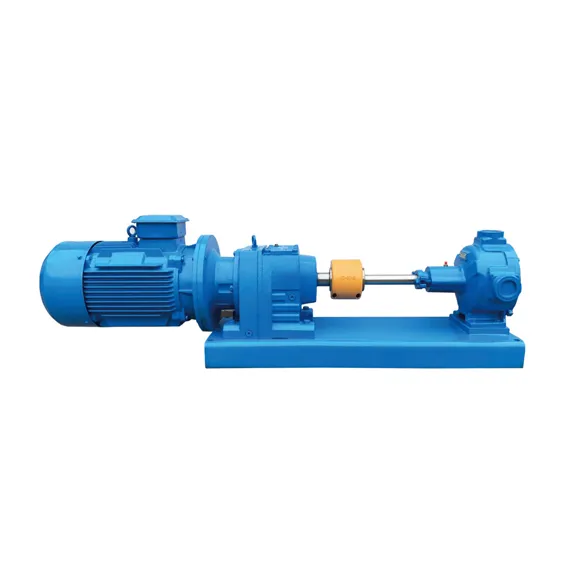

TATA Drive's Flat Foam Polyether Foam Metering Pump is a precision metering pump for flat foam polyether, with 0.1-15kW power, 0.5-50L/h flow, ±1% accuracy. Corrosion-resistant, low-pulsation, ideal for foam production’s stable polyether delivery.

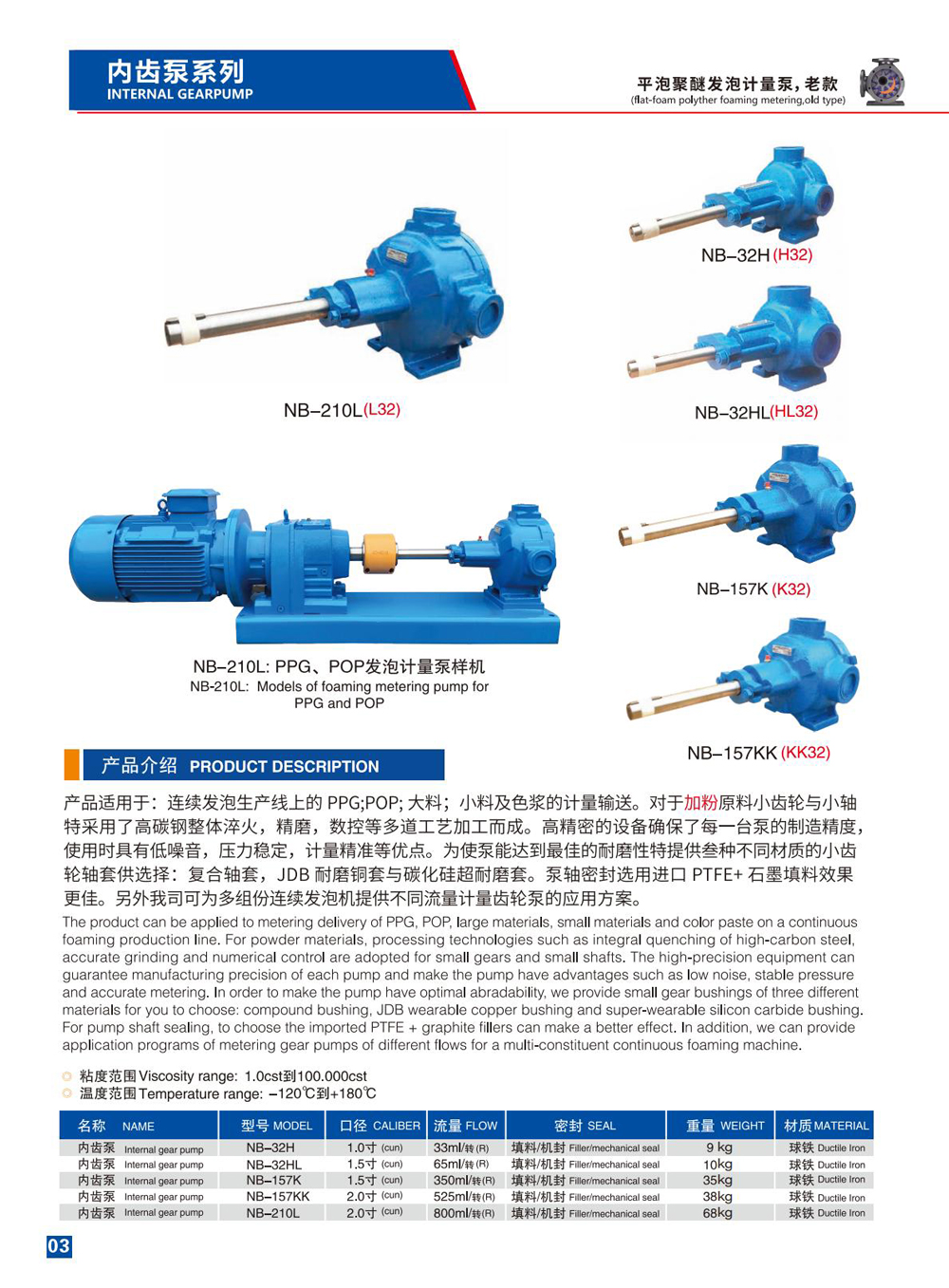

| NAME | MODEL | CALIBER | FLOW | SEAL | WEIGHT | MATERIAL |
| Internal gear pump | NB-32H | 1.0(cun) | 33ml/(R) | Filler/mechanical seal | 9 kg | Ductile Iron |
| Internal gear pump | NB-32HL | 1.5(cun) | 65ml/(R) | Filler/mechanical seal | 10kg | Ductile Iron |
| Internal gear pump | NB-157K | 1.5(cun) | 350ml/(R) | Filler/mechanical seal | 35kg | Ductile Iron |
| Internal gear pump | NB-157KK | 2.0(cun) | 525ml/(R) | Filler/mechanical seal | 38kg | Ductile Iron |
| Internal gear pump | NB-210L | 2.0(cun) | 800ml/(R) | Filler/mechanical seal | 68kg | Ductile Iron |
Ultra-Precision Metering
±0.3%-±1% accuracy with precision gears/pistons; stable flow ensures consistent polyether-PU ratio for uniform foam density.
Polyether-Adapted Corrosion Resistance
Special alloy/PTFE contact parts + double shaft seals resist polyether/isocyanate, preventing leaks and material contamination.
Low-Pulsation Stable Output
Optimized fluid channels minimize pulsation (<1%), avoiding bubbles during raw material mixing for smooth flat foam molding.
Flexible Flow Adjustment
Supports manual handwheel tuning or auto PLC/VFD control, quickly adapting to diverse foam thickness and density requirements.
Low-Noise & Durable Design
Structural optimization keeps noise <65dB; wear-resistant components and sealed bearings enable long-term continuous operation.
Easy Installation & Maintenance
Compact size fits production lines; standard ports for quick connection, detachable parts simplify cleaning and upkeep.
The full range of products includes motors, input interfaces, output modules, installation forms, etc., which can be personalized designed and manufactured according to customer needs.
We offer multiple color schemes such as RAL7045 (gray), RAL9011 (black), RAL5015 (blue), RAL9003 (white), RAL3014 (purple), etc. Customers can choose the corresponding product color according to their different needs.
Our nameplate is made of stainless steel laser printing technology, which can be customized according to the different needs of customers, especially by adding a product QR code. Scanning the QR code can quickly access product information and sales service information.
Conventional packaging forms include cardboard boxes, pallets, and wooden boxes. We can also customize the outer box packaging according to customer needs.
