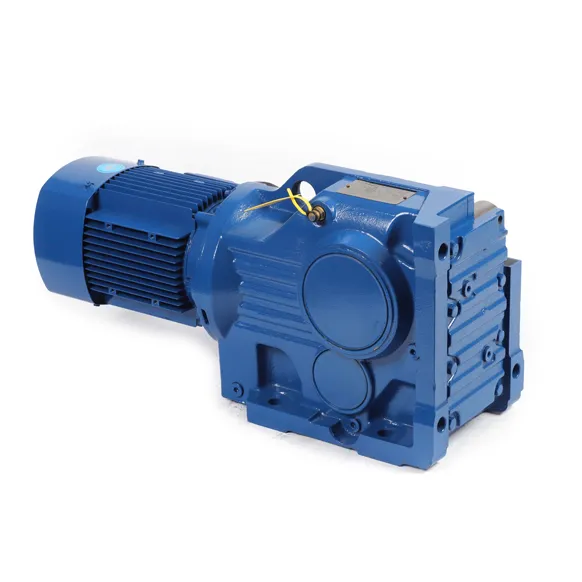

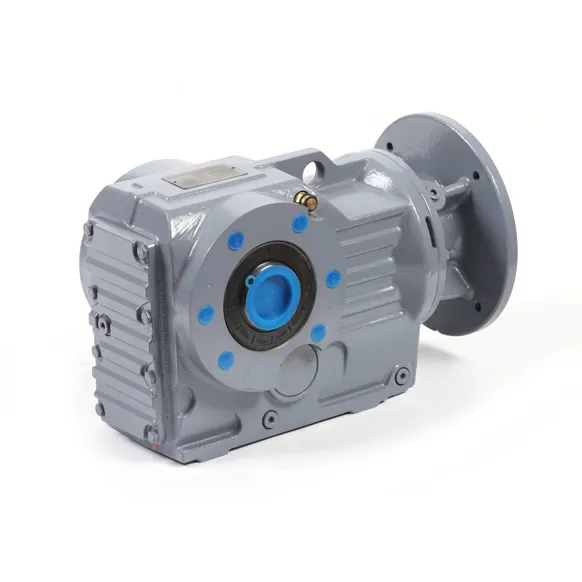

TATA Drive's K Series Helical-Bevel Gear Reducer has 0.18 - 200kW power, 80 - 50000N·m torque and 5.36 - 180.78 ratios. 96% efficient, modular, fits cranes and conveyors for stable right-angle industrial transmission.
| Gear unit size | Stages | D63 D71 | D80 | D90 | D100 | D112 | D132S | D132M |
| K/KF/KA/KAF37 | 3 | 3.98-106.38 | 3.98-83.69 | 3.98-24.99 29.96-72.54 | 3.98-10.49 13.08-20.19 29.96-58.60 | |||
| K/KF/KA/KAF47 | 3 | 7.36-11.77 13.65-31.30 39.61-131.87 | 4.64-104.37 | 4.64-90.86 | 4.64-21.81 25.91 35.39-63.30 75.20 | |||
| K/KF/KA/KAF57 | 3 | 9.59-11.92 19.34-35.70 48.89-145.14 | 7.55-11.92 15.22-123.85 | 4.69-108.29 | 4.69-90.26 | 4.69-30.28 38.49-76.56 | ||
| K/KF/KA/KAF67 | 3 | 10.63-12.48 19.30-35.62 48.77-144.79 | 8.37-12.48 15.19-123.54 | 5.2-108.03 | 5.2-90.04 | 5.2-30.22 38.39-76.37 | 5.2-24.00 38.39-60.66 | 5.2-24.00 38.39-60.66 |
| K/KF/KA/KAF77 | 3 | 25.62-38.39 64.75-192.18 | 10.84-12.36 20.25-38.39 51.18-154.02 | 7.24-135.28 | 7.24-113.56 | 7.24-97.05 | 7.24-30.89 40.04-78.07 | 7.24-30.89 40.04-78.07 |
| K/KF/KA/KAF87 | 3 | 16.00 27.88-31.39 70.46-197.37 | 11.17 16.00 19.45-31.39 49.16-174.19 | 8.29-11.17 14.45-147.32 | 8.29-11.17 14.45-126.91 | 7.21-102.71 | 7.21-102.71 | |
| K/KF/KA/KAF97 | 3 | 24.75-38.30 62.55-176.05 | 18.96-38.30 47.93-176.05 | 18.96-38.30 47.93-153.21 | 8.71-123.93 | 8.71-123.93 | ||
| K/KF/KA/KAF107 | 3 | 13.43 22.62-29.00 32.69 57.17-143.47 | 13.43 22.62-29.00 32.69 57.17-143.47 | 8.69-29.00 32.69-143.47 | 8.69-29.00 32.69-143.47 | |||
| K/KF/KA/KAF127 | 3 | 12.79 21.15-36.25 47.82-146.07 |
| Gear unit size | Stages | D132ML | D160M | D160L | D180 | D200 |
| K/KF/KA/KAF77 | 3 | 7.24-23.08 40.04-58.34 | 7.24-23.08 40.04-58.34 | |||
| K/KF/KA/KAF87 | 3 | 7.21-79.34 | 7.21-79.34 | 7.21-79.34 | 7.21-14.45 17.42-24.92 36.52-63.00 | |
| K/KF/KA/KAF97 | 3 | 8.71-96.80 | 8.71-96.80 | 8.71-96.80 | 8.71-30.82 41.87-77.89 | 8.71-24.75 41.87-62.55 |
| K/KF/KA/KAF107 | 3 | 8.69-112.41 | 8.69-112.41 | 8.69-112.41 | 8.69-90.96 | 8.69-31.28 37.00-73.30 |
| K/KF/KA/KAF127 | 3 | 10.74-12.79 17.77-136.14 | 10.74-12.79 17.77-136.14 | 10.74-12.79 17.77-136.14 | 8.68-110.18 | 8.68-89.89 |
| K/KF/KA/KAF157 | 3 | 18.37-31.30 46.79-150.41 | 18.37-31.30 46.79-150.41 | 14.92-122.39 | 12.65-100.22 | |
| K/KH167 | 3 | 24.52-32.25 51.77-164.50 | 24.52-32.25 51.77-164.50 | 20.32-32.25 42.89-134.99 | 17.34-109.83 | |
| K/KH187 | 3 | 33.23-42.51 88.00-179.86 | 33.23-42.51 88.00-179.86 | 27.92-42.51 73.96-179.86 | 17.18-179.86 |
| Gear unit size | Stages | D225 | D250M | D280 | D315 | D315M_A/B |
| K/KF/KA/KAF107 | 3 | 8.69-31.28 37.00-73.30 | ||||
| K/KF/KA/KAF127 | 3 | 8.68-89.89 | 8.68-31.37 40.19-70.95 | 8.68-31.37 40.19-70.95 | ||
| K/KF/KA/KAF157 | 3 | 12.65-100.22 | 12.65-79.75 | 12.65-79.75 | 12.65-23.95 38.02-61.02 | 12.65-18.37 38.02-46.79 |
| K/KH167 | 3 | 17.34-109.83 | 17.34-87.86 | 17.34-87.86 | 17.34-68.07 | 17.34-24.52 36.61-51.77 |
| K/KH187 | 3 | 17.18-179.86 | 17.18-144.59 | 17.18-144.59 | 17.18-112.60 | 17.18-33.23 45.50-88.00 |
High-Efficiency Right-Angle Transmission:
Single-unit efficiency up to 96%. Helical-bevel gear design enables bidirectional high-efficiency operation, suitable for right-angle power transmission scenarios.
Modular & Flexible Combination:
Modular design allows matching various motors. It can combine with R series reducers to meet extreme low-speed and high-torque demands.
Diversified Installation Methods:
Supports foot, B5/B14 flange mounting. Offers solid/hollow shaft output, adapting to diverse industrial equipment layout needs.
Strong Durability & Load Capacity:
20CrMo alloy steel gears with HRC60 hardness. HT250 cast iron housing ensures it bears up to 50000N·m torque stably.
Wide Power & Ratio Range:
Power spans 0.18 - 200kW, ratio 5.36 - 180.78. Multiple models cover light to heavy-load industrial transmission needs.
The full range of products includes motors, input interfaces, output modules, installation forms, etc., which can be personalized designed and manufactured according to customer needs.
We offer multiple color schemes such as RAL7045 (gray), RAL9011 (black), RAL5015 (blue), RAL9003 (white), RAL3014 (purple), etc. Customers can choose the corresponding product color according to their different needs.
Our nameplate is made of stainless steel laser printing technology, which can be customized according to the different needs of customers, especially by adding a product QR code. Scanning the QR code can quickly access product information and sales service information.
Conventional packaging forms include cardboard boxes, pallets, and wooden boxes. We can also customize the outer box packaging according to customer needs.
