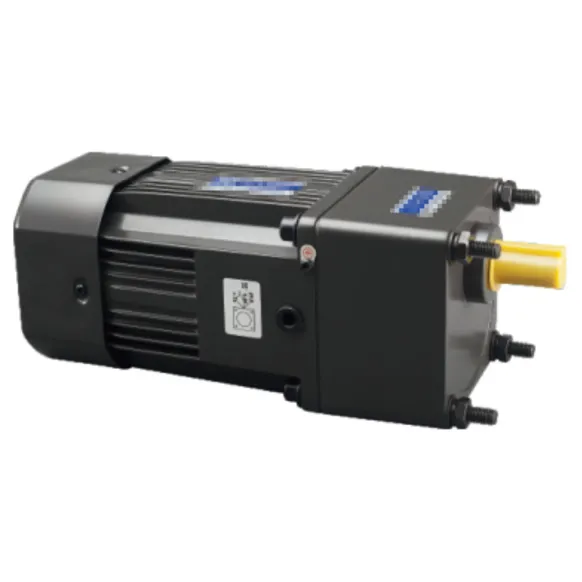

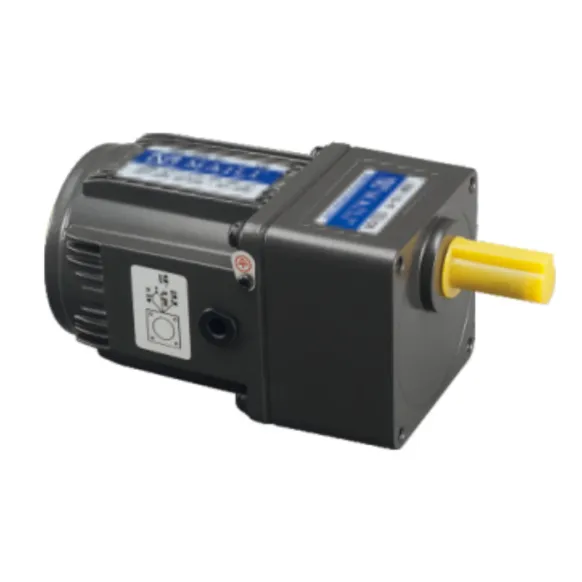

TATA Drive's Parallel Shaft Geared Motor delivers high torque, ≥90% efficiency, and low noise. Compact, easy to install, ideal for industrial conveyors and automation.
| Motor model | Specs | Output Power W | Voltage V | Frequency Hz | Currentt A | Starting Torque | Rated Torque | Rated Revolution r/min | Capacity/Ve μ F/VAC |
| JWD types | mN.m | mN.m | |||||||
| 2RK-6GN-A | Reversible | 6 | 1-phase 110 | 50 | 0.26 | 60 | 47 | 1200 | 4μF/250V |
| 60 | 0.23 | 55 | 38 | 1450 | |||||
| 2IK-6GN-A | Induction | 50 | 0.24 | 55 | 47 | 1200 | 3.5. μF/250V | ||
| 60 | 0.25 | 50 | 38 | 1450 | |||||
| 2RK-6GN-C | Reversible | 6 | 1-phase 220 | 50 | 0.14 | 55 | 48 | 1200 | 1.0μF/450V |
| 2IK-6GN-C | Induction | 50 | 0.13 | 50 | 48 | 1200 | 0.8μF/450V | ||
| 2RK-10GN-C | Reversible | 10 | 1-phase 220 | 50 | 0.2 | 80 | 79 | 1200 | 1.0μF/450V |
| 60 | 0.23 | 75 | 69 | 1450 | |||||
| 2IK-10GN-C | Induction | 10 | 50 | 0.16 | 80 | 79 | 1200 | ||
| 60 | 0.2 | 75 | 69 | 1450 | |||||
| 2RK-10GN-A | Reversible | 10 | 1-phase 110 | 50 | 0.28 | 85 | 78 | 1200 | 4.5μF/250V |
| 60 | 0.31 | 80 | 71 | 1450 | |||||
| 2IK-10GN-A | Induction | 10 | 50 | 0.25 | 85 | 78 | 1200 | ||
| 60 | 0.29 | 80 | 71 | 1450 |
Coaxial Power Transfer
Adopts parallel shaft layout for direct, efficient power transmission. Ensures consistent torque delivery with minimal energy loss across industrial applications.
High Torque & Precision Gearing
Equipped with precision-machined gears, delivering strong load-bearing capacity and accurate speed control for stable machinery operation.
Compact & Space-Saving Design
Streamlined structure with optimized gear arrangement, fitting tight installation spaces and enabling seamless integration into existing equipment.
Durable & Low-Maintenance
Crafted with wear-resistant materials and sealed housing, resisting dust and corrosion. Requires minimal upkeep for long service life in harsh industrial environments.
Low-Noise & Smooth Operation
Optimized gear meshing and damping design reduce vibration and noise (≤72dB), ensuring quiet, reliable performance for workplace comfort.
Versatile Installation Options
Supports flange, foot, or shaft-mounted installation, adapting to diverse industrial machinery layouts and application scenarios.
The full range of products includes motors, input interfaces, output modules, installation forms, etc., which can be personalized designed and manufactured according to customer needs.
We offer multiple color schemes such as RAL7045 (gray), RAL9011 (black), RAL5015 (blue), RAL9003 (white), RAL3014 (purple), etc. Customers can choose the corresponding product color according to their different needs.
Our nameplate is made of stainless steel laser printing technology, which can be customized according to the different needs of customers, especially by adding a product QR code. Scanning the QR code can quickly access product information and sales service information.
Conventional packaging forms include cardboard boxes, pallets, and wooden boxes. We can also customize the outer box packaging according to customer needs.
