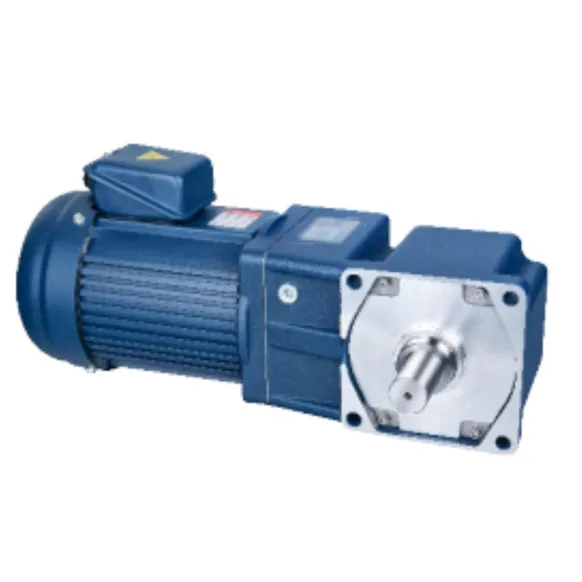

TATA Drive's Right-Angle Geared Motor enables 90° power transfer, offering high torque, low noise, and easy installation for tight-layout industrial equipment.

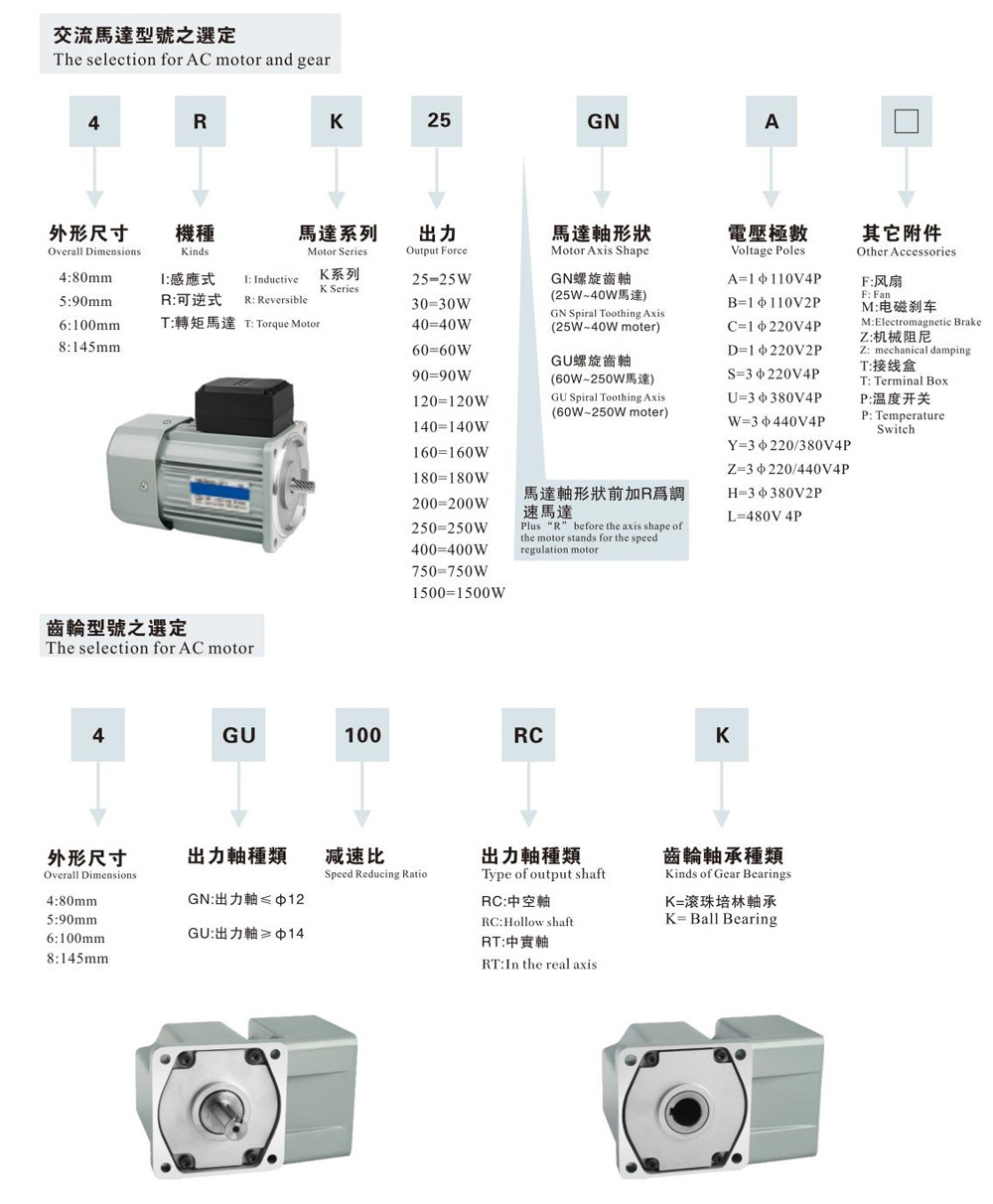

| Motor model | Specs | Output Power W | Voltage V | Frequency Hz | Current A | Starting Torque | Rated Torque | Rated Revolution r/min | Capacity/Ve μF/VAC | ||
| JWDtypes | mN.m | gf.cm | mN.m | gf.cm | |||||||
| 4IK25GN-C 4IK25A-C | Induction | 25 | 1-phase 220 | 50 | 0.22 | 231 | 2310 | 185 | 1850 | 1250 | 1.5/450 |
| 60 | 0.21 | 192 | 1920 | 154 | 1540 | 1550 | 1.5/450 | ||||
| 4RK25GN-C 4RK25A-C | Reversible | 50 | 0.24 | 231 | 2310 | 185 | 1850 | 1250 | 2/450 | ||
| 60 | 0.26 | 192 | 1920 | 154 | 1540 | 1550 | 2/450 | ||||
| 4IK25GN-A 4IK25A-A | Induction | 25 | 1-phase 110 | 50 | 0.48 | 231 | 2310 | 185 | 1850 | 1250 | 6/250 |
| 60 | 0.46 | 192 | 1920 | 154 | 1540 | 1550 | 6/250 | ||||
| 4RK25GN-A 4RK25A-A | Reversible | 50 | 0.50 | 231 | 2310 | 185 | 1850 | 1250 | 8/250 | ||
| 60 | 0.56 | 192 | 1920 | 154 | 1540 | 1550 | 8/250 | ||||
| 4IK25GN-U 4IK25A-U | — | 25 | 3-phase 380 | 50 | 0.14 | 231 | 2310 | 185 | 1850 | 1250 | — |
| 60 | 0.12 | 192 | 1920 | 154 | 1540 | 1550 | 一 | ||||
| 4RK25GN-S 4RK25A-S | — | 25 | 3-phase 220 | 50 | 0.24 | 231 | 2310 | 185 | 1850 | 1250 | 一 |
| 60 | 0.225 | 192 | 1920 | 154 | 1540 | 1550 | — | ||||
| 4IK30GN-C 4IK30A-C | Induction | 30 | 1-phase 220 | 50 | 0.28 | 275 | 2750 | 220 | 2200 | 1250 | 2.2/450 |
| 60 | 0.3 | 231 | 2310 | 185 | 1850 | 1550 | 2.2/450 | ||||
| 4RK30GN-C 4RK30A-C | Reversible | 50 | 0.3 | 275 | 2750 | 220 | 2200 | 1250 | 2.5/450 | ||
| 60 | 0.32 | 231 | 2310 | 185 | 1850 | 1550 | 2.5/450 | ||||
| 4IK30GN-A 4IK30A-A | Induction | 30 | 1-phase 110 | 50 | 0.58 | 275 | 2750 | 220 | 2200 | 1250 | 8/250 |
| 60 | 0.60 | 231 | 2310 | 185 | 1850 | 1550 | 8/250 | ||||
| 4RK30GN-A 4RK30A-A | Reversible | 50 | 0.60 | 275 | 2750 | 220 | 2200 | 1250 | 10/250 | ||
| 60 | 0.65 | 231 | 2310 | 185 | 1850 | 1550 | 10/250 | ||||
90° Power Direction Conversion
Enables vertical-horizontal power transfer via bevel gear meshing, perfectly adapting to tight-layout industrial equipment needing direction adjustment.
High Torque & Compact Structure
Combines strong load-bearing capacity with space-saving design, delivering robust torque while fitting limited installation spaces seamlessly.
3Precision Gearing & Stable Operation
Equipped with precision-machined bevel gears, ensuring accurate speed control and low vibration for consistent performance in industrial transmission.
Durable & Harsh-Environment Resistant
Crafted with high-strength alloy materials and sealed housing, resisting dust, corrosion, and temperature fluctuations (-20–100°C) for long service life.
Versatile Installation Adaptability
Supports flange, foot, or shaft-mounted installation, matching diverse industrial machinery layouts and application scenarios (conveyors, mixers, automation).
Low-Noise & Energy-Efficient
Optimized gear meshing and energy-saving design reduce noise (≤70dB) and power loss, ensuring quiet, cost-effective operation for workplaces.
The full range of products includes motors, input interfaces, output modules, installation forms, etc., which can be personalized designed and manufactured according to customer needs.
We offer multiple color schemes such as RAL7045 (gray), RAL9011 (black), RAL5015 (blue), RAL9003 (white), RAL3014 (purple), etc. Customers can choose the corresponding product color according to their different needs.
Our nameplate is made of stainless steel laser printing technology, which can be customized according to the different needs of customers, especially by adding a product QR code. Scanning the QR code can quickly access product information and sales service information.
Conventional packaging forms include cardboard boxes, pallets, and wooden boxes. We can also customize the outer box packaging according to customer needs.
