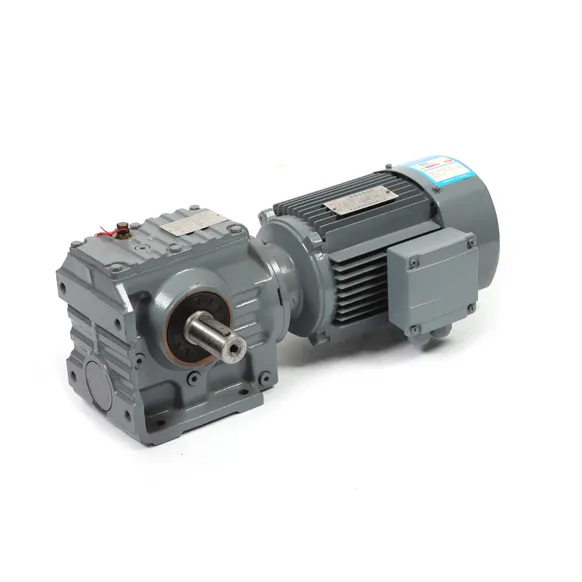

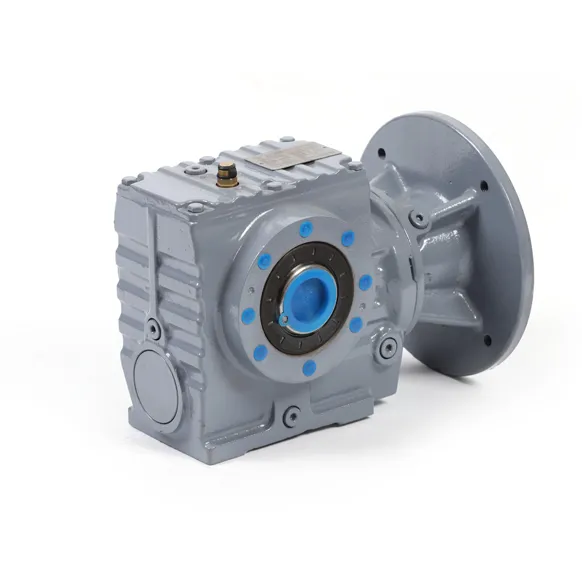

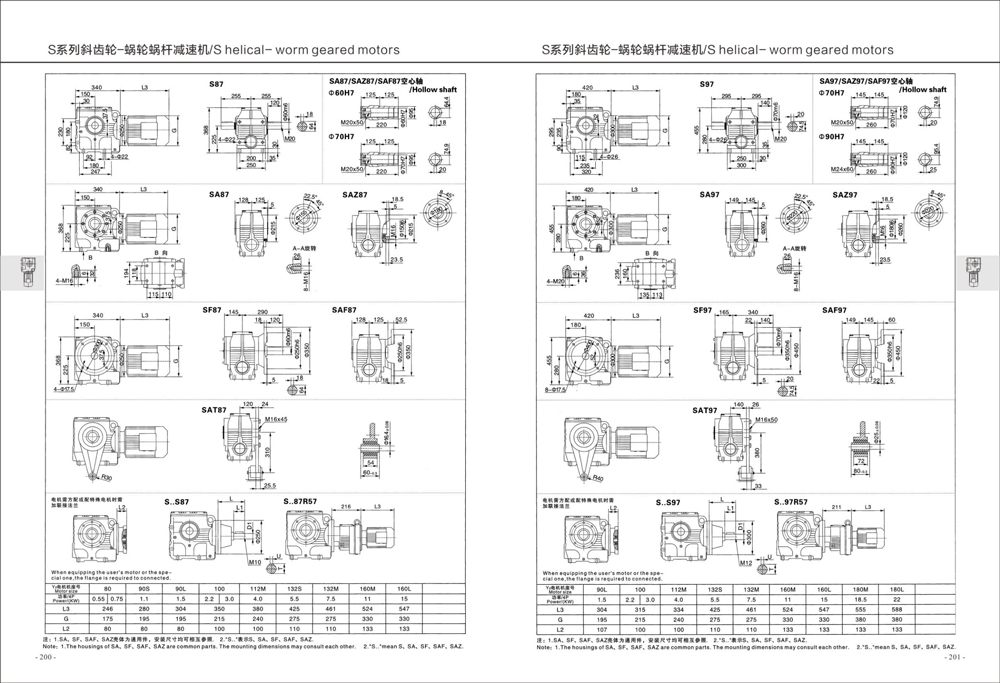

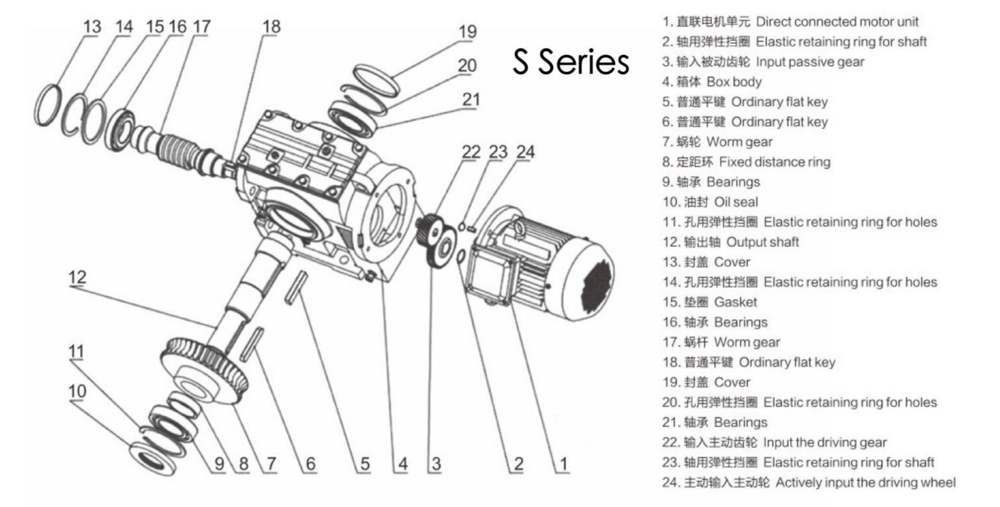

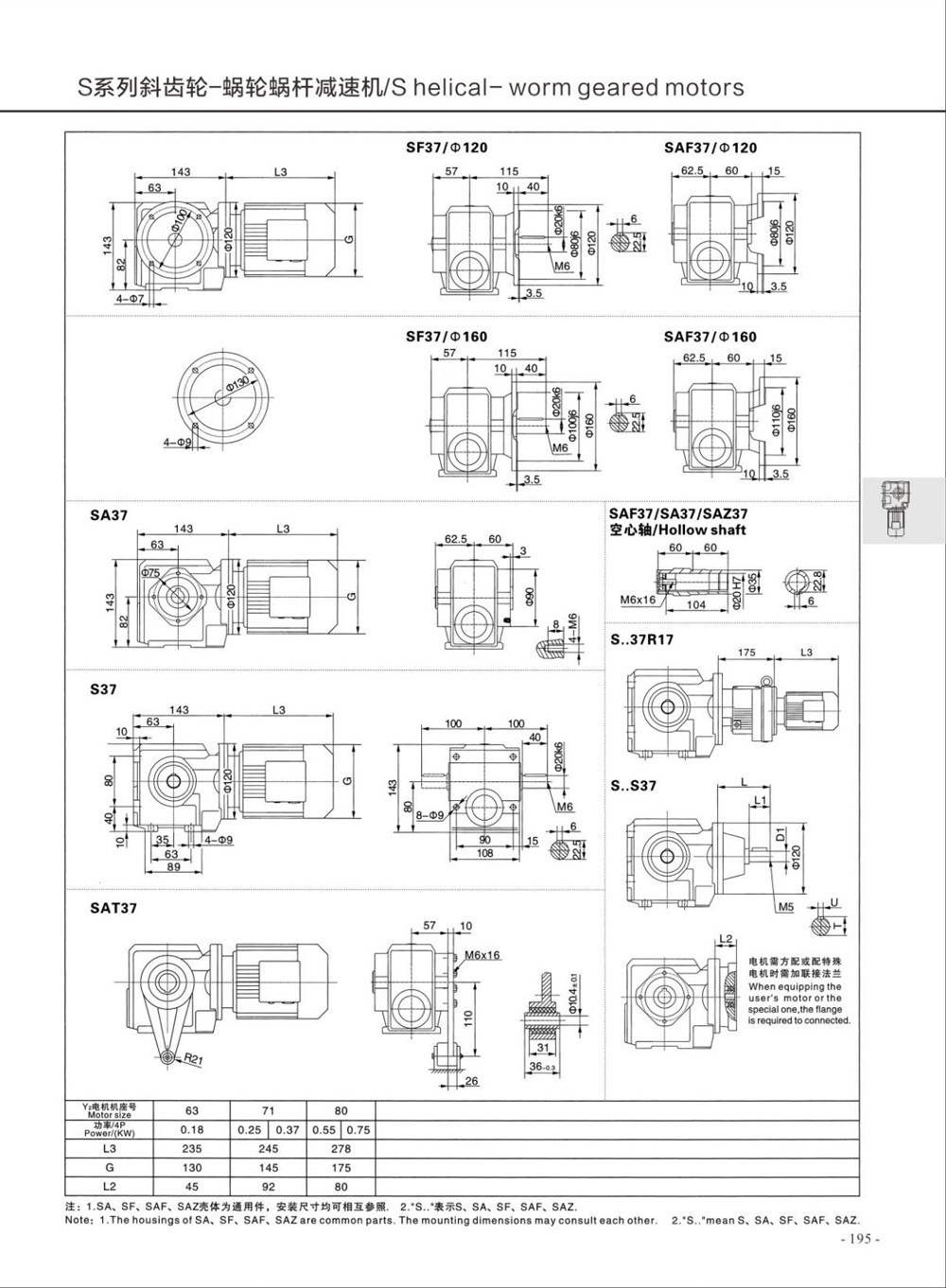

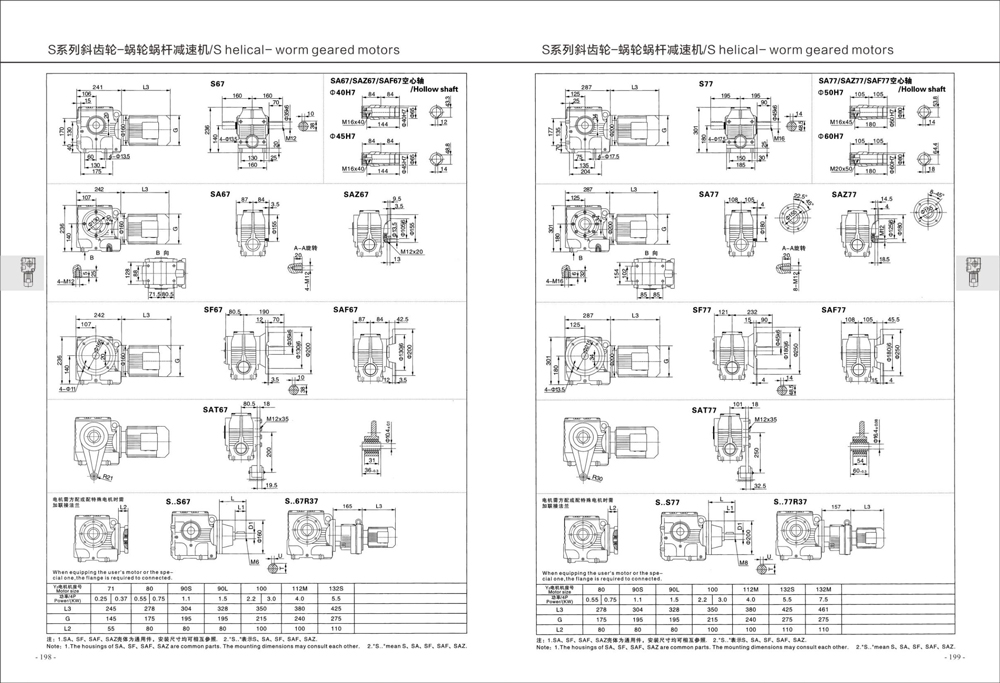

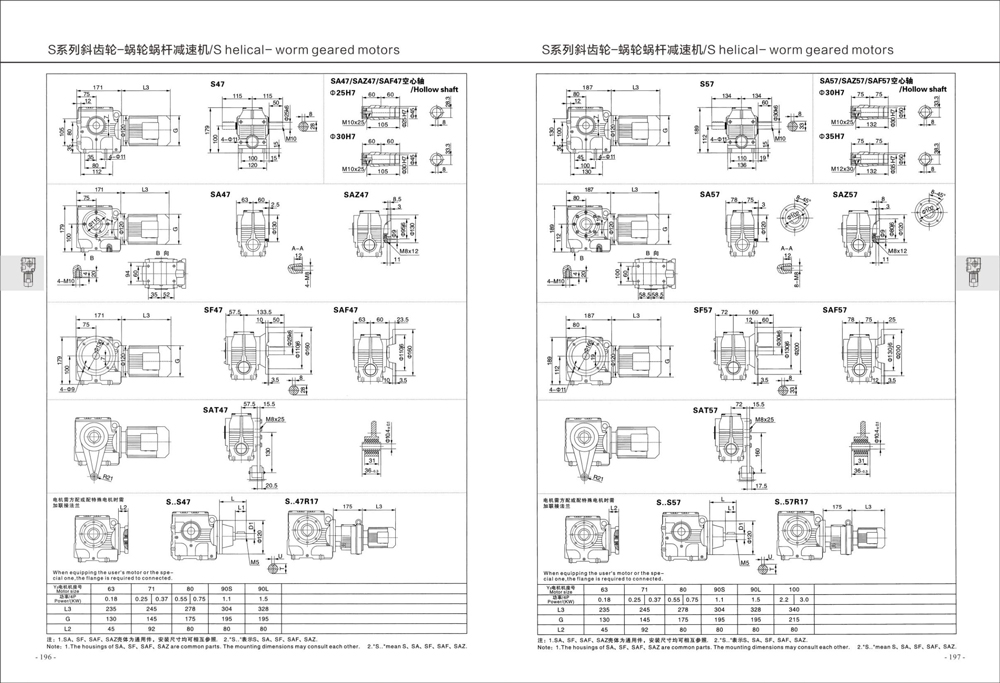

TATA Drive's S Series is a helical-worm reducer with 0.18 - 22kW power, 43 - 4200N·m torque and 9.96 - 244.74 ratios. Compact, lockable, fits lifts and mixers for reliable light-heavy load transmission.
| Gear unit size | Stages | D63 D71 | D80 | D90 | D100 | D112 | D132S | D132M |
| S/SF/SA/SAF37 | 2 | 6.80-18.24 19.89-51.30 55.93-157.43 | 6.80-15.53 19.13 22.50-43.68 53.83 63.33-122.94 | 6.80-13.39 19.13 22.50-37.66 53.83 63.33-106.00 | ||||
| S/SF/SA/SAF47 | 2 | 7.28-17.62 20.33-54.59 63.80-201.00 | 7.28-17.62 20.33-54.59 67.20 71.75-158.12 | 7.28-19.54 23.20-47.32 56.61 67.20 71.75-137.05 | 7.28-14.24 19.54 23.20-38.23 56.61 67.20 71.75-110.73 | |||
| S/SF/SA/SAF57 | 2 | 7.28-17.62 20.33-54.59 63.80-201.00 | 728-17.62 20.33-54.59 67.20 71.75-158.12 | 7.28-19.54 23.20-47.32 56.61 67.20 71.75-137.05 | 7.28-14.24 19.54 23.20-38.23 56.61 67.20 71.75-110.73 | |||
| S/SF/SA/SAF67 | 2 | 11.03-17.28 20.37-23.22 24.44 29.63-54.70 62.35-65.63 75.06 85.83-217.41 | 8.69-17.28 20.37-23.22 24.44-54.70 62.35-65.63 75.06 85.83-217.41 | 7.56-17.28 20.37-23.22 24.44-54.70 62.35-65.63 78.00-190.1 | 7.56-17.28 20.37 23.33 26.93-54.70 67.57 78.00-158.45 | 7.56-20.30 23.33 26.93-46.40 58.80 67.57 78.00-134.40 | 7.56-13.73 20.30 23.33 26.93-36.85 58.80 67.57 78.00-106.75 | 7.56-13.73 20.30 23.33 26.93-36.85 58.80 67.57 78.00-106.75 |
| S/SF/SA/SAF77 | 2 | 15.28-18.42 20.99 22.89 35.94-53.87 63.03 71.33-75.09 107.83-256.47 | 12.07-18.42 20.99 22.89 28.41-53.87 63.03 71.33-75.09 85.22-256.47 | 8.06-18.42 20.99 22.89-75.09 85.22-225.26 | 8.06-18.42 20.99 22.89-66.67 75.20-189.09 | 8.06-18.42 20.99 22.89-56.92 66.67 75.20-161.60 | 8.06-18.97 22.22 25.07-43.33 56.92 66.67 75.20-130.00 | 8.06-18.97 22.22 25.07-43.33 56.92 66.67 75.20-130.00 |
| S/SF/SA/SAF87 | 2 | 17.49-19.70 21.43 25.50 39.10-57.00 64.27-70.43 81.76 91.20 123.48-288.00 | 12.21-19.70 21.43 25.50-57.00 64.27-70.43 81.76-288.00 | 9.07-19.70 21.43 25.50-57.00 64.27-86.15 99.26-258.18 | 9.07-19.70 21.43 25.50-57.00 64.27-77.14 86.15 99.26-222.40 | 7.88-19.70 21.43 25.50-64.00 77.14 86.15 99.26-180.00 | 7.88-19.70 21.43 25.50-64.00 77.14 86.15 99.26-180.00 | |
| S/SF/SA/SAF97 | 2 | 23.59 26.39 49.87-60.59 71.43 80.85 161.74-286.40 | 17.05-23.59 26.39 36.05-60.59 71.43 80.85 116.92-286.40 | 13.07-23.859 26.39 32.60-60.59 71.43 80.85-286.40 | 13.07-23.59 26.39 32.60-60.59 71.43 80.85-286.40 | 8.26-23.59 26.39 32.60-78.26 89.60-231.67 | 8.26-23.59 26.39 32.60-78.26 89.60-231.67 |
| Gear unit size | Stages | D132ML | D160M | D160L | D180 |
| S/SF/SA/SAF77 | 2 | 8.06-13.76 18.97 22.22 25.07-32.38 56.92 66.67 75.20-97.14 | 8.06-13.76 18.97 22.22 25.07-32.38 56.92 66.67 75.20-97.14 | ||
| S/SF/SA/SAF87 | 2 | 7.88-20.27 24.43 27.28-44.03 64.00 77.14 86.15 99.26-139.05 | 7.88-20.27 24.43 27.28-44.03 64.00 77.14 86.15 99.26-139.05 | 7.88-20.27 24.43 27.28-44.03 64.00 77.14 86.15 99.26-139.05 | 7.88-15.64 20.27 24.43 27.28-34.96 64.00 77.14 86.15 99.26-110.40 |
| S/SF/SA/SAF97 | 2 | 8.26-23.59 26.39 32.60-55.79 65.45 78.26 89.60-180.95 | 8.26-23.59 26.39 32.60-55.79 65.45 78.26 89.60-180.95 | 8.26-23.59 26.39 32.60-55.79 65.45 78.26 89.60-180.95 | 8.26-21.23 24.13 27.63-44.89 65.45 78.26 89.60-145.60 |
Combined Transmission & Large Ratio:
Helical-worm combination. S/R combination ratio reaches 8608, satisfying large speed reduction demands in intermittent industrial operations.
Self-locking & Safe Operation:
Achieves self-locking at specific ratios. Ideal for lifts and gates, preventing accidental movement and ensuring safety in vertical transmission scenarios.
Compact & Light Structure:
Integral cast iron housing. Small size and light weight save space, suitable for equipment with limited installation areas like 3D parking garages.

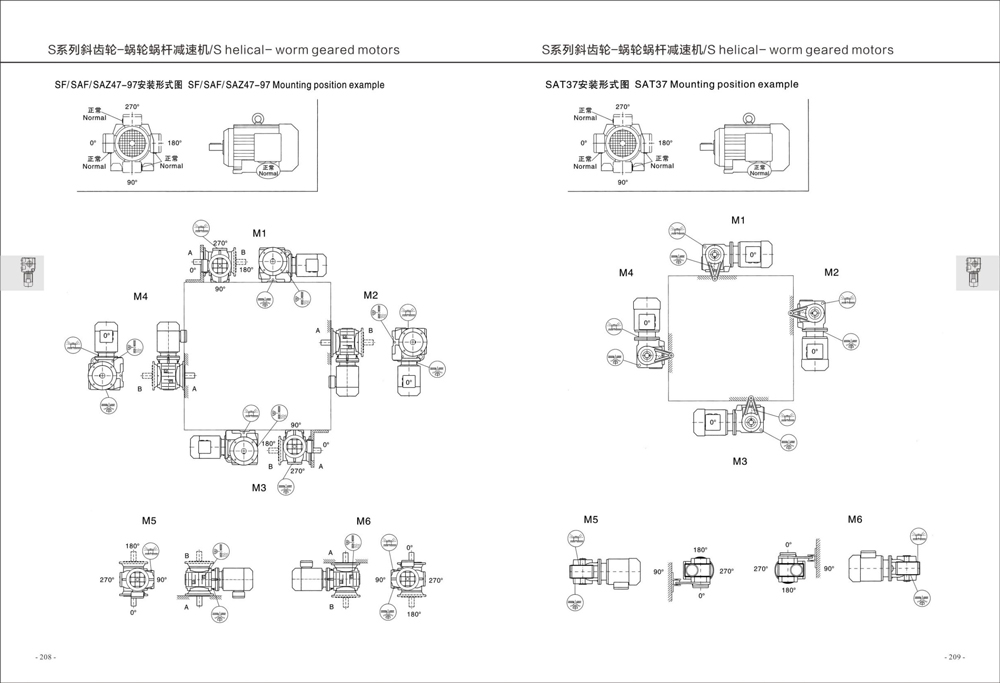

Diverse Installation & Input:

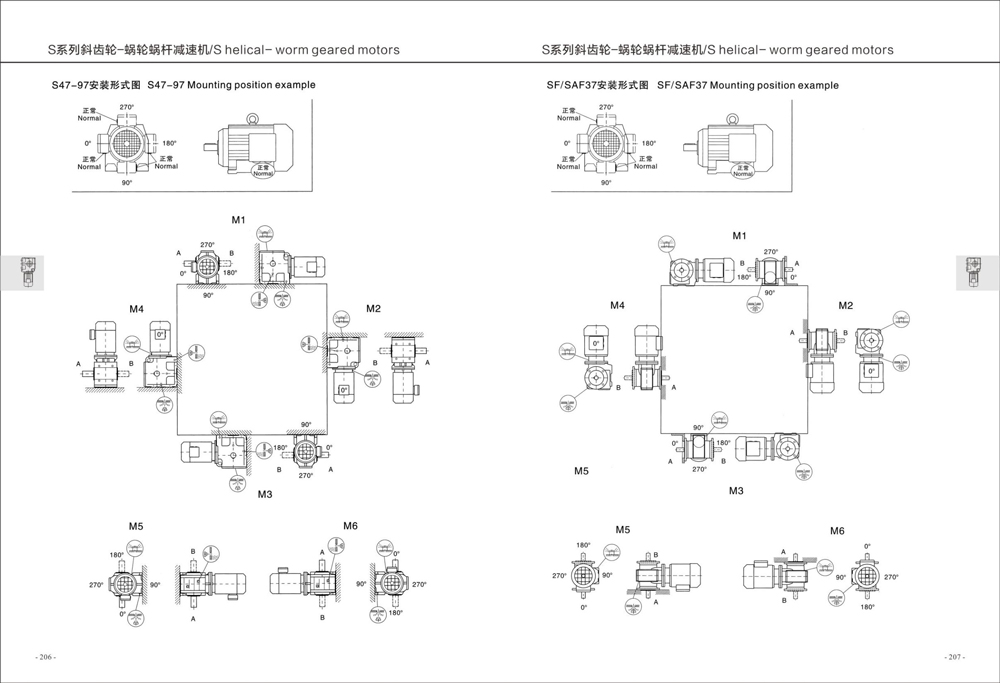

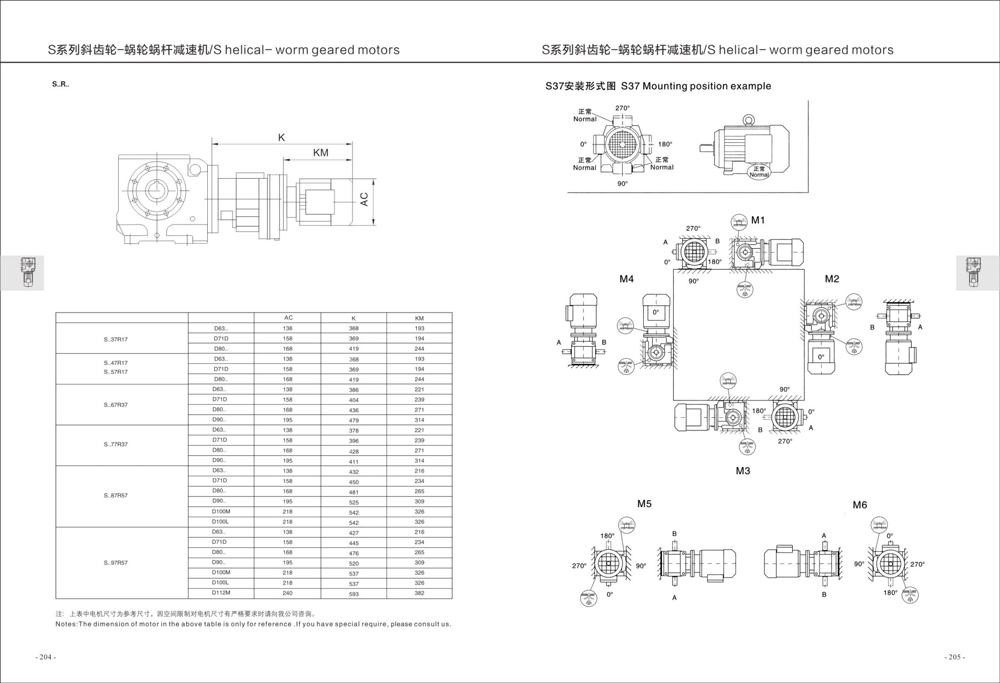

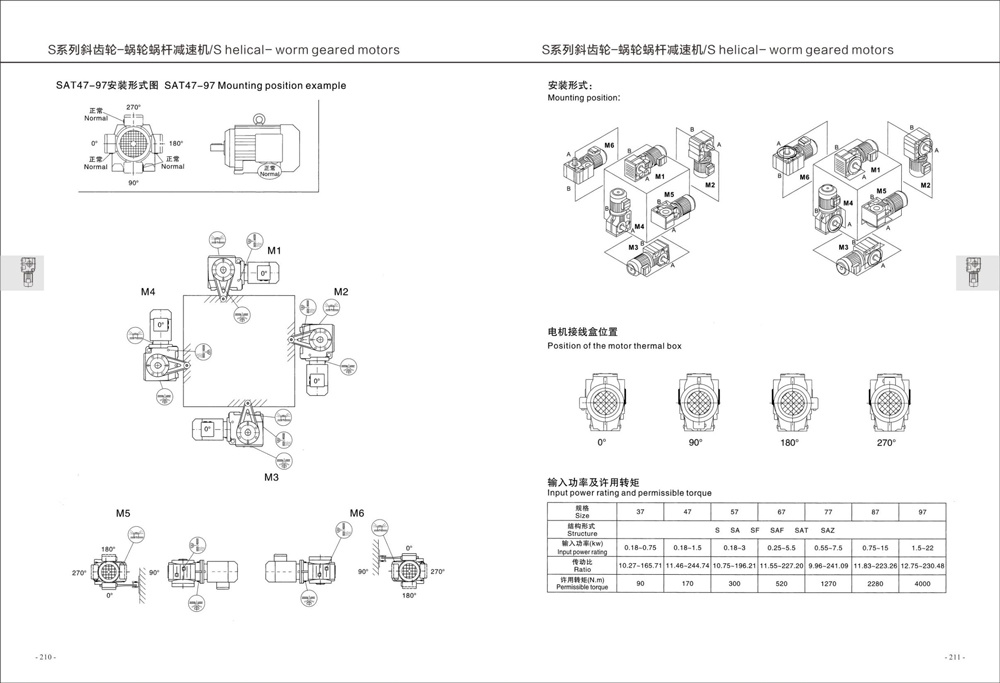

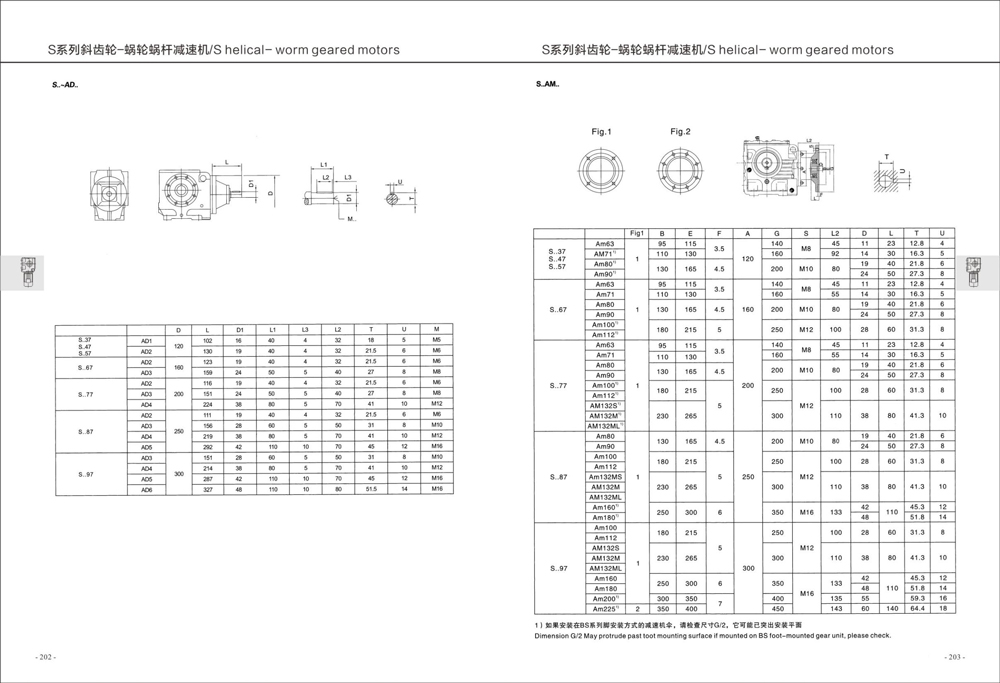

Supports foot, flange and hollow shaft mounting. Accepts motor direct connection or belt input, adapting to various equipment layouts.
Stable & Durable Performance:
Heat-treated alloy steel gears reduce vibration and noise. Sealed design adapts to -10℃~40℃, suitable for food and chemical industries.
The full range of products includes motors, input interfaces, output modules, installation forms, etc., which can be personalized designed and manufactured according to customer needs.
We offer multiple color schemes such as RAL7045 (gray), RAL9011 (black), RAL5015 (blue), RAL9003 (white), RAL3014 (purple), etc. Customers can choose the corresponding product color according to their different needs.
Our nameplate is made of stainless steel laser printing technology, which can be customized according to the different needs of customers, especially by adding a product QR code. Scanning the QR code can quickly access product information and sales service information.
Conventional packaging forms include cardboard boxes, pallets, and wooden boxes. We can also customize the outer box packaging according to customer needs.
