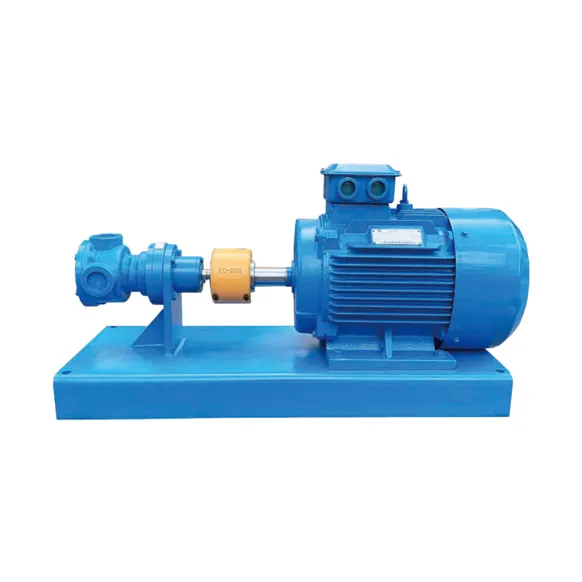

TATA Drive's Compact precision pumps for low-flow feeding/replenishment, with 0.2-50L/min flow, ±1% accuracy, handling chemicals/oils/food fluids. Ideal for boilers, labs, food lines—quiet, leak-proof, easy to integrate.
| NAME | MODEL | CALIBER | FLOW | SEAL | WEIGHT | MATERIAL |
| Internal gear pump | NB-32X | 0.5(cun) | 4ml/(R) | Filler | 3kg | Ducile iron |
| Internal gear pump | NB-32FH | 0.5(cun) | 8ml/(R) | Filler | 3.3kg | Ducile iron |
| Internal gear pump | NB-32G | 1.0(cun) | 16ml/(R) | Filler | 5kg | Ducile iron |
| Internal gear pump | NB-32F | 1.5(cun) | 65ml/(R) | Mechanical seal | 10kg | Ducile iron |
| Internal gear pump | NB-32D | 1.5(cun) | 65ml/(R) | Mechanical seal | 11kg | Ducile iron |
| Internal gear pump | NB-106J | 1.5(cun) | 130ml/(R) | Mechanical seal | 26kg | Ducile iron |
| Internal gear pump | NB-106M | 1.5(cun) | 130ml/(R) | Mechanical seal | 15kg | Ducile iron |
Precision Metering for Low-Flow Needs
±1% accuracy with 0.2-50L/min flow, ensuring stable feeding/replenishment in boilers, labs, and food processing lines.
Broad Media Compatibility
PEEK/stainless steel parts resist chemicals, oils, and food fluids, handling viscosities up to 5000cP without corrosion or clogging.
Compact & Space-Saving Design
Small footprint fits tight production areas; standard NPT ports enable quick integration with existing pipelines.
Low-Noise & Leak-Proof Operation
Magnetic drive or helical gears keep noise <45dB; advanced seals prevent leaks, critical for hygiene-sensitive sectors.
Flexible Speed & Control
100-4000rpm adjustable via handwheel or VFD/PLC, adapting to variable feeding/makeup demands in batch or continuous processes.
Durable & Easy Maintenance
Wear-resistant components extend service life; detachable casing simplifies cleaning, reducing downtime in 24/7 operations.
The full range of products includes motors, input interfaces, output modules, installation forms, etc., which can be personalized designed and manufactured according to customer needs.
We offer multiple color schemes such as RAL7045 (gray), RAL9011 (black), RAL5015 (blue), RAL9003 (white), RAL3014 (purple), etc. Customers can choose the corresponding product color according to their different needs.
Our nameplate is made of stainless steel laser printing technology, which can be customized according to the different needs of customers, especially by adding a product QR code. Scanning the QR code can quickly access product information and sales service information.
Conventional packaging forms include cardboard boxes, pallets, and wooden boxes. We can also customize the outer box packaging according to customer needs.
