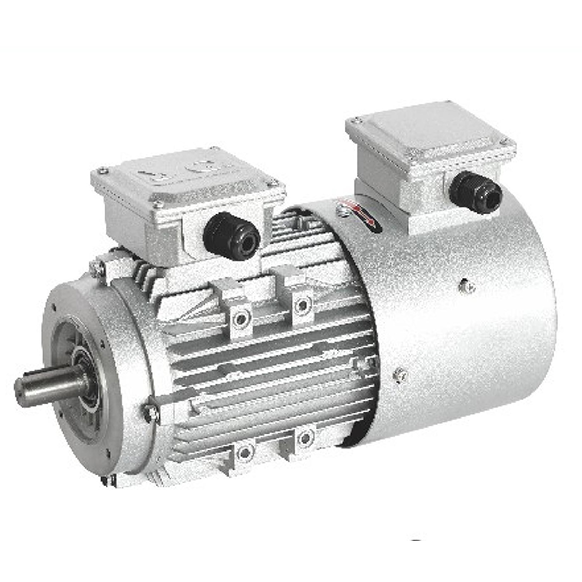

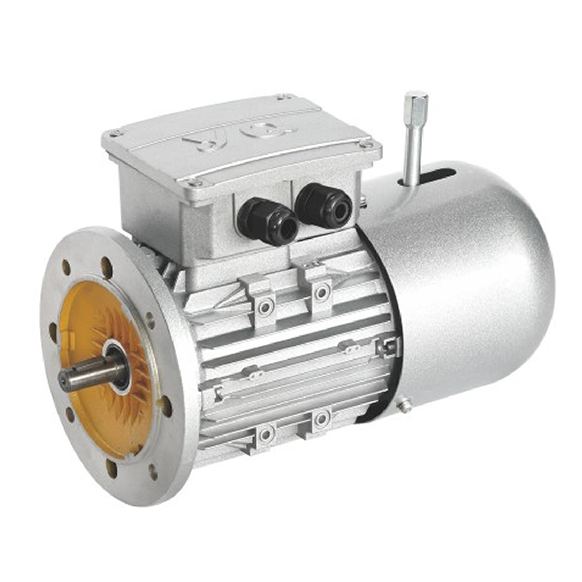

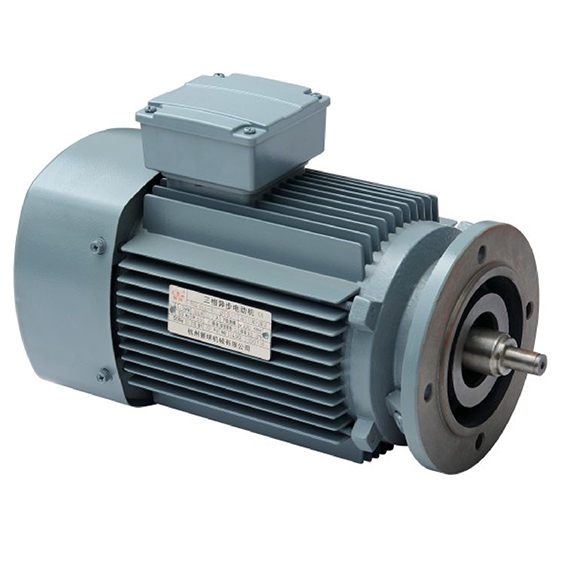

Three-Phase Asynchronous Motor

TATA DRIVE's Three-Phase Asynchronous Motor offers high efficiency, robust build, and reliable performance. With advanced design, it suits various industrial applications, ensuring smooth operation and low maintenance.

Specifations
Three-Phase Asynchronous Motor

Type	Rated Output		Rated Speed (rpm)	Efficiency η% (IE3)	Efficiency at 75% Load	Efficiency at 50% Load	Power factor coSφ	Rated current（A）			Rated Torque (Nm)	Locked-rotor torque (Ts/Tn)	Maximum torque (Tmax/Tn)	Locked-rotor current (Isln)
Type	KW	HP	Rated Speed (rpm)	Efficiency η% (IE3)	Efficiency at 75% Load	Efficiency at 50% Load	Power factor coSφ	380V	400V	415V	Rated Torque (Nm)	Locked-rotor torque (Ts/Tn)	Maximum torque (Tmax/Tn)	Locked-rotor current (Isln)
YE3-631-2	0.18	0.25	2730	65.9	65.9	64.6	0.80	0.52	0.49	0.47	0.63	2.2	2.2	5.5
YE3-632-2	0.25	0.37	2730	69.7	69.7	68.3	0.81	0.67	0.64	0.62	0.87	2.2	2.2	5.5
YE3-711-2	0.37	0.5	2750	73.8	73.8	72.3	0.81	0.94	0.89	0.80	1.20	2.2	2.2	6.1
YE3-712-2	0.55	0.75	2750	77.8	77.8	76.2	0.82	1.31	1.24	1.20	1.91	2.3	2.3	6.1
YE3-801-2	0.75	1	2880	80.7	80.7	79.1	0.82	1.72	1.64	1.58	2.49	2.3	2.3	7.0
YE3-802-2	1.1	1.5	2880	82.7	82.7	81.0	0.83	2.43	2.31	2.20	3.65	2.2	2.3	7.3
YE3-90S-2	1.5	2	2895	84.2	84.2	82.5	0.84	3.22	3.06	2.95	4.95	2.2	2.3	7.6
YE3-90L-2	2.2	3	2895	85.9	85.9	84.2	0.85	4.58	4.35	4.10	7.20	2.2	2.3	7.6
YE3-100L1-2	3	4	2895	87.1	87.1	85.4	0.87	6.02	5.71	5.51	9.90	2.2	2.3	7.8
YE3-112M-2	4	5.5	2905	88.1	88.1	86.3	0.88	7.84	7.45	7.10	13.1	2.2	2.3	8.3
YE3-112M-2	4	5.5	2905	88.1	88.1	86.3	0.88	7.84	7.45	7.10	13.1	2.2	2.3	8.3
YE3-132S1-2	5.5	7.5	2930	89.2	89.2	87.4	0.88	10.6	10.1	9.75	17.0	2.0	2.3	8.3
YE3-132S1-2	5.5	7.5	2930	89.2	89.2	87.4	0.88	10.6	10.1	9.75	17.0	2.0	2.3	8.3
YE3-132S2-2	7.5	10	2930	90.1	90.1	88.3	0.88	14.4	13.7	13.2	24.4	2.0	2.3	7.9
YE3-132S2-2	7.5	10	2930	90.1	90.1	88.3	0.88	14.4	13.7	13.2	24.4	2.0	2.3	7.9
YE3-160M1-2	11	15	2945	91.2	91.2	89.4	0.89	20.6	19.6	18.0	35.7	2.0	2.3	8.1
YE3-160M1-2	11	15	2945	91.2	91.2	89.4	0.89	20.6	19.6	18.0	35.7	2.0	2.3	8.1
YE3-160M2-2	15	20	2945	91.9	91.9	90.1	0.89	27.9	26.5	25.5	48.6	2.0	2.3	8.1
YE3-160M2-2	15	20	2945	91.9	91.9	90.1	0.89	27.9	26.5	25.5	48.6	2.0	2.3	8.1
YE3-160L-2	18.5	25	2940	92.4	92.4	90.6	0.89	34.2	32.5	31.3	60.1	2.0	2.3	8.2
YE3-160L-2	18.5	25	2940	92.4	92.4	90.6	0.89	34.2	32.5	31.3	60.1	2.0	2.3	8.2
YE3-180M-2	22	30	2955	92.7	92.7	90.8	0.89	40.5	38.5	37.1	71.1	2.0	2.3	8.2
YE3-180M-2	22	30	2955	92.7	92.7	90.8	0.89	40.5	38.5	37.1	71.1	2.0	2.3	8.2
YE3-200L1-2	30	40	2960	93.3	93.3	91.4	0.89	54.9	52.1	50.3	96.8	2.0	2.3	7.6
YE3-200L1-2	30	40	2960	93.3	93.3	91.4	0.89	54.9	52.1	50.3	96.8	2.0	2.3	7.6
YE3-200L2-2	37	50	2960	93.7	93.7	91.8	0.89	67.4	64.0	61.7	119.4	2.0	2.3	7.6
YE3-225M-2	45	60	2965	94.0	94.0	92.1	0.90	80.8	76.8	74.0	144.9	2.0	2.3	7.7
YE3-250M-2	55	75	2970	94.3	94.3	92.4	0.90	98.5	93.5	90.2	176.9	2.0	2.3	7.7
YE3-280S-2	75	100	2975	94.7	94.7	92.8	0.90	134	127	122	240.8	1.8	2.3	7.1
YE3-280M-2	90	125	2975	95.0	95.0	93.1	0.90	160	152	146	288.9	1.8	2.3	7.1
YE3-315S-2	110	150	2978	95.2	95.2	93.3	0.90	195	185	179	352.8	1.8	2.3	7.1
YE3-315M-2	132	180	2978	95.4	95.4	93.5	0.90	234	222	214	423.3	1.8	2.3	7.1
YE3-315L1-2	160	200	2980	95.6	95.6	93.7	0.91	279	265	256	512.8	1.8	2.3	7.2
YE3-315L2-2	200	270	2980	95.8	95.8	93.9	0.91	349	331	319	640.9	1.8	2.2	7.2
YE3-355M-2	250	340	2982	95.8	95.8	93.9	0.91	436	414	399	800.6	1.6	2.2	7.2
YE3-355L-2	315	430	2982	95.8	95.8	93.9	0.91	549	522	503	1009	1.6	2.2	7.2
YE3-631-4	0.12	0.18	1320	64.8	64.8	63.5	0.72	0.39	0.37	0.36	0.87	2.1	2.2	4.4
YE3-632-4	0.18	0.25	1320	69.9	69.9	68.5	0.73	0.54	0.51	0.49	1.30	2.1	2.2	4.4
YE3-711-4	0.25	0.37	1340	73.5	73.5	72.0	0.74	0.70	0.66	0.64	1.78	2.1	2.2	5.2
YE3-712-4	0.37	0.5	1340	77.3	77.3	75.8	0.75	0.97	0.92	0.89	2.64	2.1	2.2	5.2
YE3-801-4	0.55	0.75	1400	80.8	80.8	79.2	0.75	1.38	1.31	1.26	3.75	2.4	2.3	5.2
YE3-802-4	0.75	1	1420	82.5	82.5	80.9	0.75	1.84	1.75	1.69	5.04	2.3	2.3	6.6
YE3-90S-4	1.1	1.5	1445	84.1	84.1	82.4	0.76	2.61	2.48	2.39	7.27	2.3	2.3	6.8
YE3-90L-4	1.5	2	1445	85.3	85.3	83.6	0.77	3.47	3.3	3.18	9.91	2.3	2.3	7.0
YE3-100L1-4	2.2	3	1450	86.7	86.7	85.0	0.81	4.76	4.52	4.36	14.6	2.3	2.3	7.6
YE3-100L2-4	3	4	1450	87.7	87.7	85.9	0.82	6.34	6.02	5.8	20.0	2.3	2.3	7.6
YE3-112M-4	4	5.5	1450	88.6	88.6	86.8	0.82	8.37	7.95	7.66	26.5	2.2	2.3	7.8
YE3-112M-4	4	5.5	1450	88.6	88.6	86.8	0.82	8.37	7.95	7.66	26.5	2.2	2.3	7.8
YE3-132S-4	5.5	7.5	1460	89.6	89.6	87.8	0.83	11.2	10.7	10.3	36.0	2.0	2.3	7.9
YE3-132S-4	5.5	7.5	1460	89.6	89.6	87.8	0.83	11.2	10.7	10.3	36.0	2.0	2.3	7.9
YE3-132M-4	7.5	10	1460	90.4	90.4	88.6	0.84	15.0	14.3	13.7	49.1	2.0	2.3	7.5
YE3-132M-4	7.5	10	1460	90.4	90.4	88.6	0.84	15.0	14.3	13.7	49.1	2.0	2.3	7.5
YE3-160M-4	11	15	1465	91.4	91.4	89.6	0.85	21.5	20.4	19.7	71.7	2.2	2.3	7.7
YE3-160M-4	11	15	1465	91.4	91.4	89.6	0.85	21.5	20.4	19.7	71.7	2.2	2.3	7.7
YE3-160L-4	15	20	1465	92.1	92.1	90.3	0.86	28.8	27.3	26.3	97.8	2.2	2.3	7.8
YE3-160L-4	15	20	1465	92.1	92.1	90.3	0.86	28.8	27.3	26.3	97.8	2.2	2.3	7.8
YE3-180M-4	18.5	25	1470	92.6	92.6	90.7	0.86	35.3	33.5	32.3	120.2	2.0	2.3	7.8
YE3-180M-4	18.5	25	1470	92.6	92.6	90.7	0.86	35.3	33.5	32.3	120.2	2.0	2.3	7.8
YE3-180L-4	22	30	1470	93.0	93.0	91.1	0.86	41.8	39.7	38.3	142.9	2.0	2.3	7.8
YE3-180L-4	22	30	1470	93.0	93.0	91.1	0.86	41.8	39.7	38.3	142.9	2.0	2.3	7.8
YE3-200L-4	30	40	1475	93.6	93.6	91.7	0.86	56.6	53.8	51.8	194.2	2.0	2.3	7.3
YE3-225S-4	37	50	1485	93.9	93.9	92.0	0.86	69.6	66.1	63.7	237.9	2.0	2.3	7.4
YE3-225M-4	45	60	1485	94.2	94.2	92.3	0.86	84.4	80.2	77.3	289.4	2.0	2.3	7.4
YE3-250M-4	55	75	1485	94.6	94.6	92.7	0.86	103	97.6	94.1	353.7	2.2	2.3	7.4
YE3-280S-4	75	100	1486	95.0	95.0	93.1	0.88	136	129	125	482.0	2.0	2.3	6.9
YE3-280M-4	90	125	1486	95.2	95.2	93.3	0.88	163	155	149	578.4	2.0	2.3	6.9
YE3-315S-4	110	150	1488	95.4	95.4	93.5	0.89	197	187	180	706.0	2.0	2.2	7.0
YE3-315M-4	132	180	1488	95.6	95.6	93.7	0.89	236	224	216	847.2	2.0	2.2	7.0
YE3-315L1-4	160	200	1488	95.8	95.8	93.9	0.89	285	271	261	1027	2.0	2.2	7.1
YE3-315L2-4	200	270	1490	96.0	96.0	94.1	0.90	352	334	322	1282	2.0	2.2	7.1
YE3-355M-4	250	340	1490	96.0	96.0	94.1	0.90	440	418	403	1602	2.0	2.2	7.1
YE3-355L-4	315	430	1490	96.0	96.0	94.1	0.90	554	526	507	2019	2.0	2.2	7.1
YE3-632-6	0.12	0.18	855	57.7	57.7	56.5	0.60	0.53	0.50	0.48	1.34	1.8	1.9	3.5
YE3-711-6	0.18	0.25	855	63.9	63.9	62.6	0.66	0.65	0.62	0.59	2.01	1.9	2.0	4.0
YE3-712-6	0.25	0.37	855	68.6	68.6	67.2	0.68	0.81	0.77	0.75	2.79	1.9	2.0	4.0
YE3-801-6	0.37	0.5	890	73.5	73.5	72.0	0.70	1.09	1.04	1.00	3.97	1.9	2.0	4.7
YE3-802-6	0.55	0.75	890	77.2	77.2	75.7	0.72	1.50	1.43	1.38	5.90	1.9	2.1	4.7
YE3-90S-6	0.75	1	935	78.9	78.9	77.3	0.71	2.03	1.93	1.86	7.66	2.0	2.1	6.0
YE3-90L-6	1.1	1.5	945	81.0	81.0	79.4	0.73	2.83	2.69	2.59	11.1	2.0	2.1	6.0
YE3-100L-6	1.5	2	949	82.5	82.5	80.9	0.73	3.78	3.5	3.47	15.1	2.0	2.1	6.5
YE3-112M-6	2.2	3	955	84.3	84.3	82.6	0.74	5.36	5.09	4.91	22.0	2.0	2.1	6.6
YE3-132S-6	3	4	968	85.6	85.6	83.9	0.74	7.20	6.84	6.59	29.0	2.0	2.1	6.8
YE3-132M1-6	4	5.5	968	86.8	86.8	85.1	0.74	9.46	8.99	8.66	39.5	2.0	2.1	6.8
YE3-132M1-6	4	5.5	968	86.8	86.8	85.1	0.74	9.46	8.99	8.66	39.5	2.0	2.1	6.8
YE3-132M2-6	5.5	7.5	968	88.0	88.0	86.2	0.75	12.7	12.0	11.6	54.3	2.0	2.1	7.0
YE3-132M2-6	5.5	7.5	968	88.0	88.0	86.2	0.75	12.7	12.0	11.6	54.3	2.0	2.1	7.0
YE3-160M-6	7.5	10	970	89.1	89.1	87.3	0.79	16.2	15.4	14.8	73.8	2.0	2.1	7.0
YE3-160M-6	7.5	10	970	89.1	89.1	87.3	0.79	16.2	15.4	14.8	73.8	2.0	2.1	7.0
YE3-160L-6	11	15	970	90.3	90.3	88.5	0.80	23.1	22.0	21.2	108.3	2.0	2.1	7.2
YE3-160L-6	11	15	970	90.3	90.3	88.5	0.80	23.1	22.0	21.2	108.3	2.0	2.1	7.2
YE3-180L-6	15	20	978	91.2	91.2	89.4	0.81	30.9	29.3	28.2	146.5	2.0	2.1	7.3
YE3-180L-6	15	20	978	91.2	91.2	89.4	0.81	30.9	29.3	28.2	146.5	2.0	2.1	7.3
YE3-200L1-6	18.5	25	980	91.7	91.7	89.9	0.81	37.8	35.9	34.7	180.3	2.0	2.1	7.3
YE3-200L1-6	18.5	25	980	91.7	91.7	89.9	0.81	37.8	35.9	34.7	180.3	2.0	2.1	7.3
YE3-200L2-6	22	30	980	92.2	92.2	90.4	0.81	44.8	42.5	41.0	214.4	2.0	2.1	7.4
YE3-200L2-6	22	30	980	92.2	92.2	90.4	0.81	44.8	42.5	41.0	214.4	2.0	2.1	7.4
YE3-225M-6	30	40	980	92.9	92.9	91.0	0.83	59.1	56.2	54.1	292.3	2.0	2.1	6.9
YE3-250M-6	37	50	985	93.3	93.3	91.0	0.84	71.7	68.1	65.7	358.7	2.0	2.1	7.1
YE3-280S-6	45	60	985	93.7	93.7	91.8	0.85	85.8	81.6	78.6	436.3	2.0	2.0	7.3
YE3-280M-6	55	75	985	94.1	94.1	92.2	0.86	103	98.1	94.6	533.2	2.0	2.0	7.3
YE3-315S-6	75	100	985	94.6	94.6	92.7	0.84	143	136	131	727.2	2.0	2.0	6.6
YE3-315M-6	90	125	988	94.9	94.9	93.0	0.85	170	161	155	869.9	2.0	2.0	6.7
YE3-315L1-6	110	150	988	95.1	95.1	93.2	0.85	207	196	189	1063	2.0	2.0	6.7
YE3-315L2-6	132	180	988	95.4	95.4	93.5	0.86	244	232	224	1276	2.0	2.0	6.8
YE3-355M1-6	160	200	990	95.6	95.6	93.7	0.86	296	281	271	1543	1.8	2.0	6.8
YE3-355M2-6	200	270	990	95.8	95.8	93.9	0.87	365	346	334	1929	1.8	2.0	6.8
YE3-355L-6	250	340	990	95.8	95.8	93.9	0.87	456	433	417	2412	1.8	2.0	6.8
YE3-712-8	0.12	0.18	605	50.7	50.7	49.7	0.57	0.63	0.60	0.58	1.89	1.8	1.9	2.8
YE3-801-8	0.18	0.25	650	58.7	58.7	57.5	0.61	0.76	0.73	0.70	2.64	1.8	1.9	3.3
YE3-802-8	0.25	0.37	650	64.1	64.1	62.8	0.61	0.97	0.92	0.89	3.67	1.8	1.9	3.3
YE3-90S-8	0.37	0.5	675	69.3	69.3	67.9	0.61	1.33	1.26	1.22	5.23	1.8	1.9	4.0
YE3-90L-8	0.55	0.75	675	73.0	73.0	71.5	0.61	1.88	1.78	1.72	7.78	1.8	2.0	4.0
YE3-100L1-8	0.75	1	685	75.0	75.0	73.5	0.67	2.27	2.15	2.08	10.5	1.8	2.0	4.0
YE3-100L2-8	1.1	1.5	685	77.7	77.7	76.1	0.69	3.12	2.96	2.85	15.3	1.8	2.0	5.0
YE3-112M-8	1.5	2	695	79.7	79.7	78.1	0.70	4.08	3.88	3.74	20.6	1.8	2.0	5.0
YE3-132S-8	2.2	3	710	81.9	81.9	80.3	0.71	5.75	5.46	5.26	29.6	1.8	2.0	6.0
YE3-132M-8	3	4	710	83.5	83.5	81.8	0.73	7.48	7.10	6.85	40.4	1.8	2.0	6.0
YE3-132M-8	3	4	710	83.5	83.5	81.8	0.73	7.48	7.10	6.85	40.4	1.8	2.0	6.0
YE3-160M1-8	4	5.5	725	84.8	84.8	83.1	0.73	9.82	9.33	8.99	52.7	1.9	2.0	6.0
YE3-160M1-8	4	5.5	725	84.8	84.8	83.1	0.73	9.82	9.33	8.99	52.7	1.9	2.0	6.0
YE3-160M2-8	5.5	7.5	725	86.2	86.2	84.5	0.74	13.1	12.4	12.0	72.4	1.9	2.0	6.0
YE3-160M2-8	5.5	7.5	725	86.2	86.2	84.5	0.74	13.1	12.4	12.0	72.4	1.9	2.0	6.0
YE3-160L-8	7.5	10	725	87.3	87.3	85.6	0.75	17.4	16.5	15.9	98.8	1.9	2.0	6.0
YE3-160L-8	7.5	10	725	87.3	87.3	85.6	0.75	17.4	16.5	15.9	98.8	1.9	2.0	6.0
YE3-180L-8	11	15	735	88.6	88.6	86.8	0.75	25.2	23.9	23.0	142.9	2.0	2.0	6.5
YE3-180L-8	11	15	735	88.6	88.6	86.8	0.75	25.2	23.9	23.0	142.9	2.0	2.0	6.5
YE3-200L-8	15	20	730	89.6	89.6	87.8	0.76	33.5	31.8	30.6	196.2	2.0	2.0	6.6
YE3-200L-8	15	20	730	89.6	89.6	87.8	0.76	33.5	31.8	30.6	196.2	2.0	2.0	6.6
YE3-225S-8	18.5	25	730	90.1	90.1	88.3	0.76	41.0	39.0	37.6	242.0	1.9	2.0	6.6
YE3-225S-8	18.5	25	730	90.1	90.1	88.3	0.76	41.0	39.0	37.6	242.0	1.9	2.0	6.6
YE3-225M-8	22	30	730	90.6	90.6	88.8	0.78	47.3	44.9	43.3	287.8	1.9	2.0	6.6
YE3-225M-8	22	30	730	90.6	90.6	88.8	0.78	47.3	44.9	43.3	287.8	1.9	2.0	6.6
YE3-250M-8	30	40	735	91.3	91.3	89.5	0.79	63.2	60.0	57.9	389.8	1.9	2.0	6.5
YE3-280S-8	37	50	735	91.8	91.8	90.0	0.79	77.5	73.6	71.0	480.7	1.9	2.0	6.6
YE3-280M-8	45	60	735	92.2	92.2	90.4	0.79	93.9	89.2	85.9	584.7	1.9	2.0	6.6
YE3-315S-8	55	75	735	92.5	92.5	90.7	0.81	112	106	102	714.6	1.8	2.0	6.6
YE3-315M-8	75	100	735	93.1	93.1	91.2	0.81	151	144	138	974.5	1.8	2.0	6.2
YE3-315L1-8	90	125	735	93.4	93.4	91.5	0.82	179	170	163	1169	1.8	2.0	6.4
YE3-315L2-8	110	150	735	93.7	93.7	91.8	0.82	218	207	199	1429	1.8	2.0	6.4
YE3-355M1-8	132	180	740	94.0	94.0	92.1	0.82	260	247	238	1704	1.8	2.0	6.4
YE3-355M2-8	160	200	740	94.3	94.3	92.4	0.82	314	299	288	2065	1.8	2.0	6.4
YE3-355L-8	200	270	740	94.6	94.6	92.7	0.83	387	368	354	2581	1.8	2.0	6.4

Type	Output power		Full loaded				unloaded vibration (mms)	unloaded Noise dB(A)	Locked-rotor current (Isln)	Locked-rotor torque (Ts/Tn)	Maximum torque (Tmax/Tn)	Torgue of brake static braking(N.M)	unloaded Braking time(s)
Type	(KW)	(HP)	Asynchronous Speed (r/min)	Current (A)	Efficiency (%)	factor (cos φ)	unloaded vibration (mms)	unloaded Noise dB(A)	Locked-rotor current (Isln)	Locked-rotor torque (Ts/Tn)	Maximum torque (Tmax/Tn)	Torgue of brake static braking(N.M)	unloaded Braking time(s)
Synchronous Speed 3000r/min (2P) 380V 50HZ
Y2EJ-71M1-2	0.37	0.5	2800	0.99	70	0.81	1.8	64	6.1	2.2	2.2	4.0	0.20
Y2EJ-71M2-2	0.55	0.75	2800	1.40	73	0.82	1.8	64	6.1	2.2	2.3	4.0	0.20
Y2EJ-80M1-2	0.75	1	2840	1.83	75	0.83	1.8	67	6.1	2.2	2.3	7.5	0.20
Y2EJ-80M2-2	1.1	1.5	2840	2.60	76.2	0.84	1.8	71	7.0	2.2	2.3	7.5	0.20
Y2EJ-90S-2	1.5	2	2840	3.50	78.5	0.84	1.8	75	7.0	2.2	2.3	15	0.20
Y2EJ-90L-2	2.2	3	2840	4.90	81	0.85	1.8	75	7.0	2.2	2.3	15	0.20
Y2EJ-100L-2	3	4	2860	6.30	82.6	0.87	1.8	79	7.5	2.2	2.3	30	0.20
Y2EJ-112M-2	4	5.5	2890	8.20	84.2	0.88	1.8	79	7.5	2.2	2.3	40	0.25
Y2EJ-132S1-2	5.5	7.5	2900	11.1	85.7	0.88	1.8	83	7.5	2.2	2.3	75	0.25
Y2EJ-132S2-2	7.5	10	2900	14.9	87	0.88	1.8	83	7.5	2.2	2.3	75	0.25
Y2EJ-160M1-2	11	15	2947	21.2	88.4	0.89	2.8	87	7.5	2.2	2.3	150	0.35
Y2EJ-160M2-2	15	20	2947	28.6	89.4	0.89	2.8	87	7.5	2.2	2.3	150	0.35
Y2EJ-160L-2	18.5	25	2947	34.7	90.5	0.90	2.8	87	7.5	2.2	2.3	150	0.35
Y2EJ-180M-2	22	30	2930	41	90	0.90	2.8	89	7.5	2.0	2.3	220	0.60
Y2EJ-200L1-2	30	40	2940	55.4	91.4	0.90	2.8	92	7.5	2.0	2.3	300	0.70
Y2EJ-200L2-2	37	50	2940	67.9	92	0.90	2.8	92	7.5	2.0	2.3	300	0.70
Y2EJ-225M-2	45	60	2970	82.1	92.5	0.90	3.5	92	7.5	2.0	2.3	450	0.8
Y2EJ-250M-2	55	74	2970	99.8	93	0.90	3.5	102	7.5	2.0	2.3	600	0.8
Y2EJ-280S-2	75	100	2970	135.3	93.6	0.90	3.5	103	7.5	2.0	2.3	850	1.2
Y2EJ-280M-2	90	121	2970	160	93.9	0.91	3.5	106	7.5	2.0	2.3	850	1.2
Synchronous Speed 1500r/min (2P) 380V 50HZ
Y2EJ-71M1-4	0.25	0.34	1350	0.79	65	0.74	1.8	58	5.2	2.1	2.2	4.0	0.20
Y2EJ-71M2-4	0.37	0.5	1350	1.12	67	0.75	1.8	58	5.2	2.1	2.2	4.0	0.20
Y2EJ-80M1-4	0.55	0.75	1380	1.57	71	0.75	1.8	61	5.2	2.4	2.3	7.5	0.20
Y2EJ-80M2-4	0.75	1	1380	2.05	73	0.76	1.8	61	6.0	2.3	2.3	7.5	0.20
Y2EJ-90S-4	1.1	1.5	1390	2.8	76.2	0.77	1.8	67	6.0	2.3	2.3	15	0.20
Y2EJ-90L-4	1.5	2	1390	3.7	78.5	0.79	1.8	67	6.0	2.3	2.3	15	0.20
Y2EJ-100L1-4	2.2	3	1410	5.1	81	0.81	1.8	70	7.0	2.3	2.3	30	0.20
Y2EJ-100L2-4	3	4	1410	6.7	82.6	0.82	1.8	70	7.0	2.3	2.3	30	0.20
Y2EJ-112M-4	4	5.5	1440	8.8	84.2	0.82	1.8	74	7.0	2.3	2.3	40	0.25
Y2EJ-132S-4	5.5	7.5	1450	11.7	85.7	0.83	1.8	78	7.0	2.3	2.3	75	0.25
Y2EJ-132M-4	7.5	10	1450	15.6	87	0.84	1.8	78	7.0	2.3	2.3	75	0.25
Y2EJ-160M-4	11	15	1460	22.5	88.4	0.84	2.8	82	7.0	2.2	2.3	150	0.35
Y2EJ-160L-4	15	20	1460	30.0	89.4	0.85	2.8	82	7.0	2.2	2.3	150	0.35
Y2EJ-180M-4	18.5	25	1470	36.3	90	0.86	2.8	82	7.5	2.2	2.3	220	0.60
Y2EJ-180L-4	22	30	1470	42.9	90.5	0.86	2.8	82	7.5	2.2	2.3	300	0.70
Y2EJ-200L-4	30	40	1470	58	91.4	0.86	2.8	84	7.2	2.2	2.3	300	0.70
Y2EJ-225S-4	37	50	1480	70.2	92	0.87	3.5	81	7.2	2.2	2.3	450	0.80
Y2EJ-225M-4	45	60	1480	85	92.5	0.87	3.5	81	7.2	2.2	2.3	450	0.80
Y2EJ-250M-4	55	74	1480	103.3	93	0.87	3.5	92	7.2	2.2	2.3	600	0.8
Y2EJ-280S-4	75	100	1480	139.9	93.6	0.87	3.5	95	7.2	2.2	2.3	850	1.2
Y2EJ-280M-4	90	120	1480	167.4	93.9	0.87	3.5	95	7.2	2.2	2.3	850	1.2
Synchronous Speed 1000r/min (6P) 380V 50HZ
Y2EJ-71M1-6	0.18	0.25	850	0.74	56	0.66	1.8	56	4.0	2.0	2.0	4.0	0.20
Y2EJ-71M2-6	0.25	0.34	850	0.95	59	0.68	1.8	56	4.0	2.0	2.0	4.0	0.20
Y2EJ-80M1-6	0.37	0.5	885	1.30	62	0.70	1.8	56	4.7	2.0	2.0	7.5	0.20
Y2EJ-80M2-6	0.55	0.75	885	1.79	65	0.72	1.8	58	4.7	2.0	2.1	7.5	0.20
Y2EJ-90S-6	0.75	1	910	2.29	69	0.72	1.8	61	5.6	2.1	2.1	15	0.20
Y2EJ-90L-6	1.1	1.5	910	3.2	72	0.73	1.8	65	6.4	2.1	2.1	15	0.20
Y2EJ-100L-6	1.5	2	920	4.0	76	0.75	1.8	67	6.4	2.1	2.1	30	0.20
Y2EJ-112M-6	2.2	3	940	5.60	79	0.76	1.8	67	6.4	2.1	2.1	40	0.25
Y2EJ-132S-6	3	4	960	7.40	81	0.76	1.8	71	6.4	2.1	2.1	75	0.25
Y2EJ-132M1-6	4	5.5	960	9.8	82	0.76	1.8	71	7.0	2.1	2.1	75	0.25
Y2EJ-132M2-6	5.5	7.5	960	12.9	84	0.77	1.8	71	7.0	2.1	2.1	75	0.35
Y2EJ-160M-6	7.5	10	960	17.2	86	0.77	2.8	75	7.0	1.9	2.1	150	0.35
Y2EJ-160L-6	11	15	960	24.5	87.5	0.78	2.8	75	7.0	2.1	2.1	150	0.35
Y2EJ-180L-6	15	20	970	31.6	89	0.81	2.8	78	6.5	2.0	2.1	220	0.60
Y2EJ-200L1-6	18.5	25	970	38.6	90	0.81	2.8	78	6.5	2.1	2.1	300	0.70
Y2EJ-200L2-6	22	30	970	44.7	90	0.83	2.8	78	6.5	2.0	2.1	300	0.70
Y2EJ-225M-6	30	40	980	59.3	91.5	0.84	3.5	76	7	1.8	2.1	450	0.80
Y2EJ-250M-6	37	49.6	980	71.1	92.0	0.86	3.5	78	7	2.1	2.1	600	0.80
Y2EJ-280S-6	45	60	980	85.9	92.5	0.86	3.5	80	7	2.1	2.0	850	1.2
Y2EJ-280M-6	55	74	980	104.7	92.8	0.86	3.5	80	7	2.1	2.0	850	1.2
Synchronous Speed 750r/min (8P) 380V 50Hz
Y2EJ-80M1-8	0.18	0.24	645	0.88	51	0.61	1.8	51	3.3	1.8	1.9	7.5	0.20
Y2EJ-80M2-8	0.25	0.34	645	1.15	54	0.61	1.8	51	3.3	1.8	1.9	7.5	0.20
Y2EJ-90S-8	0.37	0.5	670	1.49	62	0.61	1.8	56	4.0	1.8	2.0	15	0.20
Y2EJ-90L-8	0.55	0.75	670	2.17	63	0.61	1.8	56	4.0	1.8	2.0	15	0.20
Y2EJ-100L1-8	0.75	1.0	680	2.4	71	0.67	1.8	61	4.0	1.8	2.0	30	0.20
Y2EJ-100L2-8	1.1	1.5	680	3.3	73	0.69	1.8	61	5.0	1.8	2.0	30	0.20
Y2EJ-112M-8	1.5	2	690	4.4	75	0.69	1.8	65	5.0	1.8	2.0	40	0.25
Y2EJ-132S-8	2.2	3	710	6.0	78	0.71	1.8	66	5.0	1.8	2.0	75	0.25
Y2EJ-132M-8	3	4	710	7.9	79	0.73	1.8	66	6.0	1.9	2.0	75	0.25
Y2EJ-160M1-8	4	5.5	720	10.3	81	0.73	2.8	69	6.0	1.9	2.0	150	0.35
Y2EJ-160M2-8	5.5	7.5	720	13.6	83	0.74	2.8	69	6.0	2.0	2.0	150	0.35
Y2EJ-160L-8	7.5	10	720	17.8	85.5	0.75	2.8	72	6.0	2.0	2.0	150	0.35
Y2EJ-180L-8	11	15	730	25.1	87.5	0.76	2.8	75	6.6	2.0	2.0	220	0.60
Y2EJ-200L-8	15	20	730	34.1	88.0	0.76	2.8	75	6.6	2.0	2.0	300	0.70
Y2EJ-225S-8	18.5	25	730	41.1	90	0.76	3.5	73	6.6	1.9	2.0	450	0.80
Y2EJ-225M-8	22	30	740	47.4	90.5	0.78	3.5	73	6.6	1.9	2.0	450	0.80
Y2EJ-250M-8	30	40	740	63.4	91	0.79	3.5	84	6.6	1.9	2.0	600	0.80
Y2EJ-280S-8	37	50	740	77.8	91.5	0.79	3.5	84	6.6	1.9	2.0	850	1.2
Y2EJ-280M-8	45	60	740	94.1	92.0	0.79	3.5	84	6.6	1.9	2.0	850	1.2

Type	KW	A	r/min	Eff%	P.F	N.m	dB(A)	Constant Torque Frequency Range Hz	Constant Output Frequency Range Hz
Synchronous Speed 3000r/min
YVF2-80M1-2	0.75	1.83	2845	75.0	0.83	2.52	73	5-50	50-60
YVF2-80M2-2	1.1	2.61	2845	76.2	0.84	3.69	73
YVF2-90S-2	1.5	3.46	2840	28.5	0.84	5.04	76
YVF2-90L-2	2.2	4.85	2840	81.0	0.85	7.40	76
YVF2-100L-2	3	6.34	2860	82.6	0.87	10.1	79
YVF2-112M-2	4	8.20	2880	81.2	0.88	13.3	80
YVF2-132S1-2	5.5	11.1	2900	85.7	0.88	18.1	86
YVF2-132S2-2	7.5	14.9	2900	87.0	0.88	24.7	86
YVF2-160M1-2	11	21.2	2930	88.4	0.89	35.9	90
YVF2-160M2-2	15	28.6	2930	89.4	0.89	48.9	90
YVF2-160L-2	18.5	34.7	2930	90.0	0.90	60.3	90
YVF2-180M-2	22	41.0	2940	90.5	0.90	71.5	91
YVF2-200L1-2	30	55.4	2950	91.4	0.90	97.0	92
YVF2-200L2-2	37	67.9	2950	92.0	0.90	120	92
YVF2-225M-2	45	82.1	2960	92.5	0.90	145	94
YVF2-250M-2	55	99.8	2965	93.0	0.90	177	96	5-50	50-60
YVF2-280S-2	75	135	2970	93.6	0.90	241	99
YVF2-280M-2	90	160	2975	93.9	0.91	297	99
YVF2-315S-2	110	195	2975	94.0	0.91	353	105	5-50	50-60
YVF2-315M-2	132	233	2975	94.5	0.91	424	105
YVF2-315L1-2	160	279	2975	94.6	0.92	514	109
YVF2-315L-2	185	323	2975	94.6	0.92	594	109
YVF2-315L2-2	200	348	2975	94.8	0.92	642	109
YVF2-315L3-2	220	383	2975	94.8	0.92	706	109
YVF2-355M1-2	220	383	2975	94.8	0.92	705	111
YVF2-355M-2	250	435	2980	95.0	0.92	801	111
YVF2-355L1-2	280	487	2980	95.0	0.92	897	113
YVF2-355L-2	315	548	2980	95.0	0.92	1009	113
YVF2-355L2-2	355	617	2980	95.0	0.92	1138	113
YVF2-355L3-2	375	652	2980	95.0	0.92	1202	113
Synchronous Speed 1500r/min
YVF2-80M1-4	0.55	1.57	1390	71.0	0.75	3.78	73	5-50	50-100
YVF2-80M2-4	0.75	2.05	1390	73.0	0.76	5.15	73
YVF2-90S-4	1.1	2.85	1390	76.2	0.77	7.56	76
YVF2-90L-4	1.5	3.68	1390	78.5	0.79	10.3	76
YVF2-100L1-4	2.2	5.09	1410	81.0	0.81	14.9	79
YVF2-100L2-4	3	6.73	1410	82.6	0.82	20.3	79
YVF2-112M-4	4	8.80	1440	84.2	0.82	26.5	80
YVF2-132S-4	5.5	11.7	1440	85.7	0.83	36.5	86
YVF2-132M-4	7.5	15.6	1440	87.0	0.84	49.7	86
YVF2-160M-4	11	22.5	1460	88.4	0.84	72.0	90
YVF2-160L-4	15	30.0	1460	89.4	0.85	98.1	90
YVF2-180M-4	18.5	36.3	1470	90.0	0.86	120	91
YVF2-180L-4	22	42.9	1470	90.5	0.86	143	91
YVF2-200L-4	30	58.0	1470	91.4	0.86	195	92
YVF2-225S-4	37	70.2	1475	92.0	0.87	240	94
YVF2-225M-4	45	85.0	1475	92.5	0.87	291	94
YVF2-250M-4	55	103	1480	93.0	0.87	355	96
YVF2-280S-4	75	140	1480	93.6	0.87	484	99
YVF2-280M-4	90	167	1480	93.9	0.87	571	99
YVF2-315S-4	110	201	1480	94.5	0.88	710	105
YVF2-315M-4	132	240	1480	94.8	0.88	852	105
YVF2-315L1-4	160	288	1480	94.9	0.89	1032	109
YVF2-315L-4	185	333	1480	94.9	0.89	1194	109
YVF2-315L2-4	200	360	1480	94.9	0.89	1291	109
YVF2-315L3-4	220	396	1480	94.9	0.89	1420	109
YVF2-355M1-4	220	396	1490	94.9	0.89	1410	111
YVF2-355M-4	250	444	1490	95.1	0.90	1602	111
YVF2-355L1-4	280	497	1490	95.1	0.90	1795	113
YVF2-355L-4	315	559	1490	95.1	0.90	2019	113
YVF2-355L2-4	355	630	1490	95.1	0.90	2275	113
YVF2-355L3-4	375	666	1490	95.1	0.90	2404	113
Synchronous Speed 1000r/min
YVF2-80M1-6	0.37	1.30	885	62.0	0.70	3.99	73	5-50	50-100
YVF2-80M2-6	0.55	1.79	885	65.0	0.72	5.94	73
YVF2-90S-6	0.75	2.29	910	69.0	0.72	7.87	76
YVF2-90L-6	1.1	3.18	910	72.0	0.73	11.5	76
YVF2-100L-6	1.5	4.00	920	76.0	0.75	15.6	79
YVF2-112M-6	2.2	5.57	935	79.0	0.76	22.5	80
YVF2-132S-6	3	7.40	960	81.0	0.76	29.8	86
YVF2-132M1-6	4	9.75	960	82.0	0.76	39.8	86
YVF2-132M2-6	5.5	12.9	965	84.0	0.77	54.4	86
YVF2-160M-6	7.5	17.2	970	86.0	0.77	73.8	90
YVF2-160L-6	11	24.5	970	87.5	0.78	108	90
YVF2-180L-6	15	31.6	970	89.0	0.81	148	91
YVF2-200L1-6	18.5	38.6	980	90.0	0.81	180	92
YVF2-200L2-6	22	44.7	980	90.0	0.83	214	92
YVF2-225M-6	30	59.3	980	91.5	0.84	292	94
YVF2-250M-6	37	71.1	980	92.0	0.86	361	96
YVF2-280S-6	45	85.9	980	92.5	0.86	439	99
YVF2-280M-6	55	105	980	92.8	0.86	536	99
YVF2-315S-6	75	142	985	93.5	0.86	727	105
YVF2-315M-6	90	170	985	93.8	0.86	873	105
YVF2-315L1-6	110	207	985	94.0	0.86	1066	109
YVF2-315L2-6	132	245	985	94.2	0.86	1280	109
YVF2-315L3-6	160	292	985	94.5	0.87	1551	109
YVF2-355M1-6	160	292	990	94.5	0.88	1543	111
YVF2-355M-6	185	338	990	94.5	0.88	1785	111
YVF2-355M2-6	200	364	990	94.8	0.88	1929	111
YVF2-355L1-6	220	401	990	94.8	0.88	2122	113
YVF2-355L-6	250	454	990	95.0	0.88	2412	113
YVF2-355L2-6	280	509	990	95.0	0.88	2701	113
YVF2-355L3-6	315	572	990	95.0	0.88	3039	113

Features
Three-Phase Asynchronous Motor

Low-Noise Operation
TATA DRIVE's Three-Phase Asynchronous Motor is engineered for quiet running. Special insulation materials reduce noise, creating a more comfortable working environment.
High - Speed Stability
It maintains excellent stability at high speeds. Precision-balanced rotors minimize vibrations, ensuring smooth and efficient operation.
Easy Installation
The motor is designed for hassle-free installation. Clear markings and standardized interfaces make it quick to set up in different systems.
Long - Term Durability
Built with high-quality materials, it offers long-term durability. Resistant to wear and tear, it reduces the need for frequent replacements.
