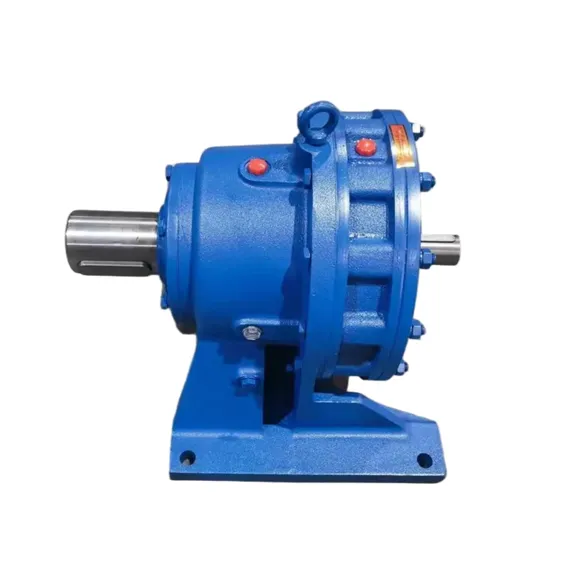

TATA Drive's B Series achieves 9 - 7569 ratios, 93% single-stage efficiency and 30 - 29400N·m torque. It has compact structure, strong overload capacity, fitting mining, textile and food industries well.
| 1 CLASS | B Series | 09 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ||
| X Series | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||
| 2 CLASS | B Series | 10 | 20 | 31 | 41 | 42 | 52 | 53 | 63 | 64 | 74 | 84 | 85 | 95 |
| X Series | 32 | 42 | 53 | 63 | 64 | 84 | 85 | 95 | 96 | 106 | 117 | 118 | 128 | |
| 3 CLASS | B Series | 2009 | 320 | 420 | 531 | 631 | 742 | 852 | 953 | |||||
| X Series | 421 | 542 | 642 | 853 | 953 | 1064 | 1184 | 1285 | ||||||
Ultra-Wide Reduction Ratio Range：
Single-stage ratio is 9 - 87, double-stage up to 7569. Multi-stage combination is available to meet ultra-low-speed heavy-load transmission demands.
High Efficiency & Strong Overload Capacity：
Single-stage efficiency reaches 93%, double-stage 86%. Rolling friction meshing enables 2.5 times overload resistance, suitable for frequent start-stop scenarios.
Compact Structure & Small Volume：

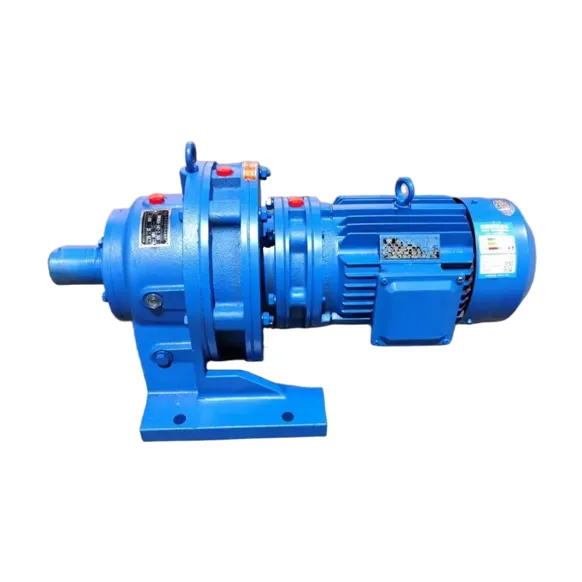

Input and output shafts are coaxial, and it can be directly connected with motors. Its volume is 30% - 50% smaller than the same-power helical reducers.
Stable Operation & Low Noise：
Multi-tooth meshing ensures large overlap coefficient. Key parts are quenched bearing steel, realizing smooth operation with noise much lower than traditional reducers.
Durable & Easy to Maintain：
Grey cast iron housing and SKF bearings enhance durability. Reasonable structural design allows easy disassembly and maintenance, reducing failure and extending service life.
The full range of products includes motors, input interfaces, output modules, installation forms, etc., which can be personalized designed and manufactured according to customer needs.
We offer multiple color schemes such as RAL7045 (gray), RAL9011 (black), RAL5015 (blue), RAL9003 (white), RAL3014 (purple), etc. Customers can choose the corresponding product color according to their different needs.
Our nameplate is made of stainless steel laser printing technology, which can be customized according to the different needs of customers, especially by adding a product QR code. Scanning the QR code can quickly access product information and sales service information.
Conventional packaging forms include cardboard boxes, pallets, and wooden boxes. We can also customize the outer box packaging according to customer needs.
