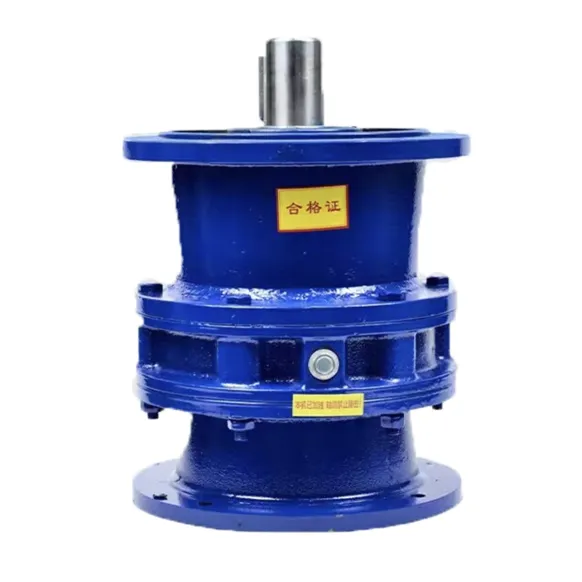

TATA Drive's X Series has 0.37 - 45kW power, up to 12000N·m torque and 9 - 7569 ratios. With over 90% single-stage efficiency, it fits mines and chemicals, enabling stable low-noise transmission.
| 1 CLASS | B Series | 09 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ||
| X Series | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||
| 2 CLASS | B Series | 10 | 20 | 31 | 41 | 42 | 52 | 53 | 63 | 64 | 74 | 84 | 85 | 95 |
| X Series | 32 | 42 | 53 | 63 | 64 | 84 | 85 | 95 | 96 | 106 | 117 | 118 | 128 | |
| 3 CLASS | B Series | 2009 | 320 | 420 | 531 | 631 | 742 | 852 | 953 | |||||
| X Series | 421 | 542 | 642 | 853 | 953 | 1064 | 1184 | 1285 | ||||||
Ultra-Wide Reduction Ratio Range：
Single-stage ratio is 9 - 87, double-stage up to 7569. Multi-stage combination meets ultra-low-speed heavy-load demands of mining hoists and large mixers.
High Efficiency & Strong Load Capacity：
Single-stage efficiency exceeds 90%. Bearing steel parts with quenching treatment allow it to bear up to 12000N·m torque, adapting to frequent overloads.
Compact Structure & Easy Installation：

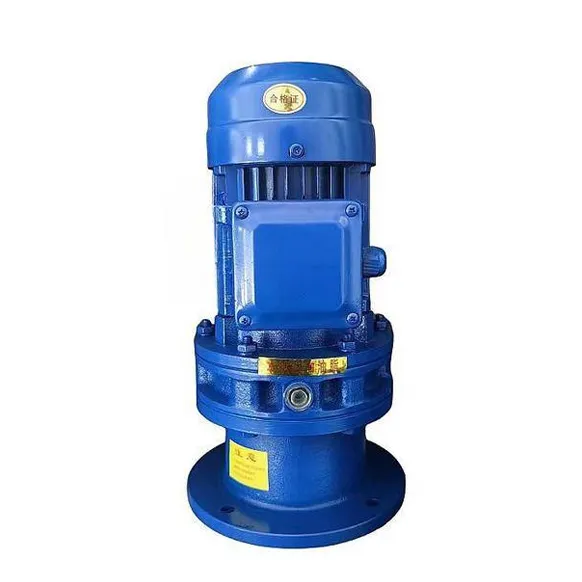

Input and output shafts are coaxial. Horizontal foot-mounted design enables direct motor connection, with volume 30%-50% smaller than same-power gear reducers.
Stable & Low-Noise Operation：
Multi-tooth meshing ensures large overlap coefficient. Rolling friction reduces vibration, keeping operation noise below 65dB, suitable for food and textile workshops.
Durable & Easy Maintenance：

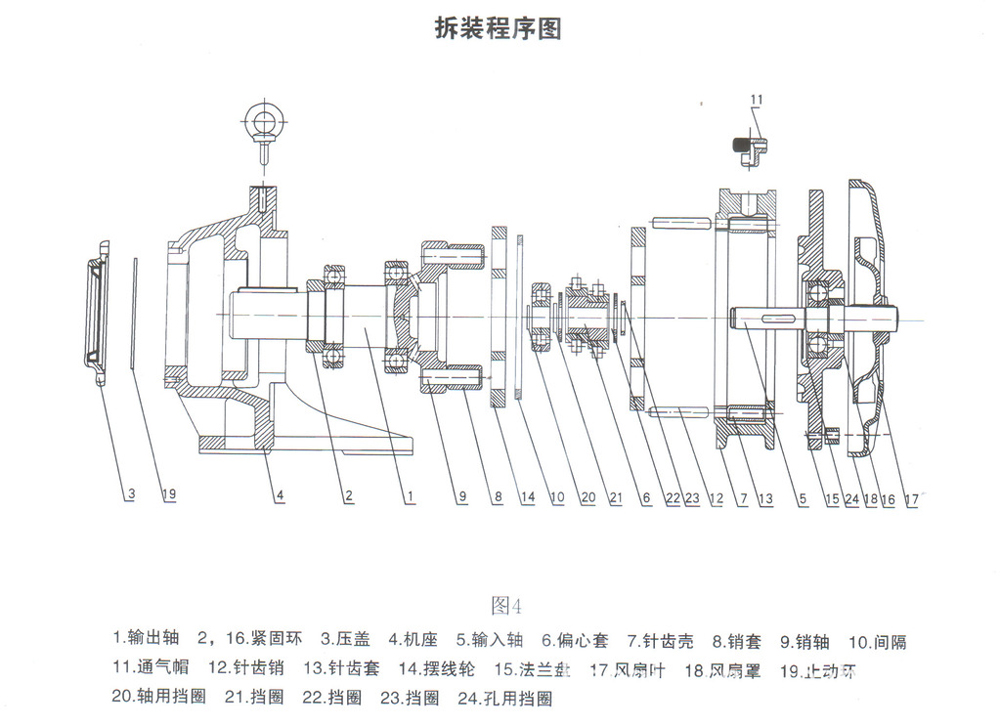

Grey cast iron housing and hardened bearing steel extend service life. Reasonable structure allows easy disassembly, with simple lubrication reducing maintenance costs.
The full range of products includes motors, input interfaces, output modules, installation forms, etc., which can be personalized designed and manufactured according to customer needs.
We offer multiple color schemes such as RAL7045 (gray), RAL9011 (black), RAL5015 (blue), RAL9003 (white), RAL3014 (purple), etc. Customers can choose the corresponding product color according to their different needs.
Our nameplate is made of stainless steel laser printing technology, which can be customized according to the different needs of customers, especially by adding a product QR code. Scanning the QR code can quickly access product information and sales service information.
Conventional packaging forms include cardboard boxes, pallets, and wooden boxes. We can also customize the outer box packaging according to customer needs.
